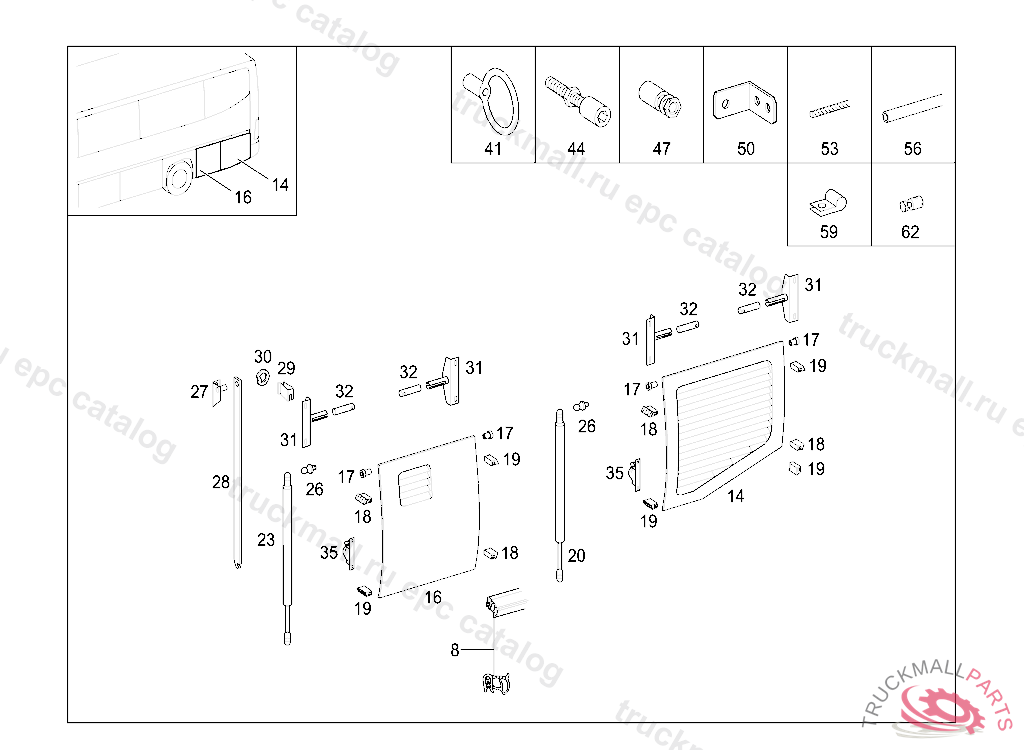

TOURINO EURO 4 - 444.303 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
8
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
8
RUBBER SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
14
HINGED DOOR SWING FLAP 1009MM
14
FLAP SWING FLAP 1009MM
16
FLAP SWING FLAP 855MM
17
BUSHING
18
LOCKING CAP
19
LOCKING CAP
20
GAS PRESSURE SPRING300N
23
GAS PRESSURE SPRING400N
26
JOINT BALL HEAD
27
BRACKET LEFT
27
BRACKET RIGHT,WEB 444203 13 000169
28
RAIL350MM
28
STRIKING PLATE420MM
29
SPRING
30
FUSE JACKET TUBE WIRING HARNESS FASTENING
31
GUIDE
32
PIN
35
LOCK
41
BANJO UNION
44
GUIDE SLEEVE
47
CABLE GROMMET
50
BRACKET
53
PULL7X7X1.5MM, TO BE ADAPTED DURING ASSEMBLY GIVE LENGTH WHEN ORDERING
56
SLEEVE
59
BRACKET
62
GROMMET
999
LATCH
