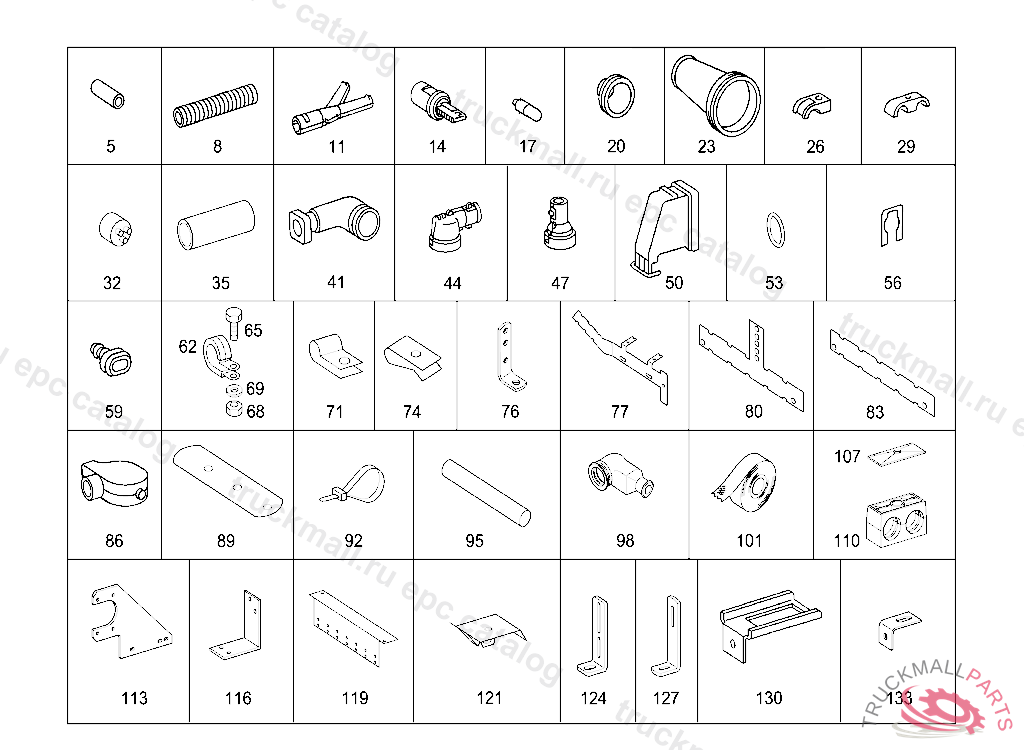

Поз.
Артикул
Описание
5
GROMMET5.0 MM
5
SHRINK HOSE
5
GROMMET LINE MOUNTING 10.0 MM
5
GROMMET
5
GROMMET BATTERY CABLE TO BATTERY MASTER SWITCH
5
GROMMET3.0 MM
5
GROMMET HOSE LINE PROTECTION TO 000 546 16 30,71 30
5
GROMMET1.75 MM
8
INSULATING HOSE FLEXIBLE, FOR CABLE HARNESS DIA.: 29.0 MM, ORDER BY THE METER
8
CORRUGATED HOSE , ORDER BY THE METER, Replaced By: A0005461630
8
INSULATING HOSE PRESSURE REGULATOR,CONNECTION "3", ORDER BY THE METER5 148812
8
INSULATING HOSE , Replaced By: A0015460030
8
INSULATING HOSE HOSE LINE PROTECTION 13 MM, ORDER BY THE METER
8
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 23 MM, ORDER BY THE METER
8
INSULATING HOSE RIGID, FOR CABLE HARNESS DIA.: 26 MM
8
INSULATING HOSE4 X 0.5 MM, ORDER BY THE METER
8
INSULATING HOSE HOSE LINE PROTECTION 10 MM, ORDER BY THE METER
11
MOLDED PIECE17-13-10
11
MOLDED PIECE26-26-17
11
MOLDED PIECE22-22-10
11
MOLDED PIECE22-22-8.5
11
MOLDED PIECE10-8.5-8.5
11
MOLDED PIECE13-13-8.5
11
MOLDED PIECE17-17-13
11
MOLDED PIECE13-10-8.5
11
MOLDED PIECE29 - 29 - 17
11
MOLDED PIECE8.5-8.5-8.5
11
MOLDED PIECE17-10-8.5
11
MOLDED PIECE17-17-8.5
11
MOLDED PIECE17-13-13
11
MOLDED PIECE13-10-10
11
MOLDED PIECE26.0-22.0-17.0
11
MOLDED PIECE26 - 22 - 22
11
MOLDED PIECE22-17-17
11
MOLDED PIECE22-22-13
11
MOLDED PIECE22-17-13
11
MOLDED PIECE17-17-10
11
MOLDED PIECE17-10-10
11
MOLDED PIECE26.0-26.0-10.0
11
MOLDED PIECE10-10-10
11
MOLDED PIECE26-26-8.5
14
SOCKET
17
MINIATURE LAMP. BULB24V/1W
20
GROMMET HOSE TO RADIATOR
23
GROMMET DIA., 30X65 MM
23
GROMMET FOR BORE 60MM
26
CLAMPING PIECE BATTERY CABLE MOUNTING
29
CLAMPING PIECE , Replaced By: A6205460244
32
GROMMET ELECTRIC CABLE
35
INSULATING HOSE6 X 0.6 MM, ORDER BY THE METER
35
INSULATING HOSE PROTECTION AGAINST SCORING, ORDER BY THE METER
35
INSULATING HOSE5 X 0.6 MM, ORDER BY THE METER
35
INSULATING HOSE LINE MOUNTING, ORDER BY THE METER
41
BOOT PRESSURE SWITCH SCREW-CONNECTION TO M 27X1, M 24X1
44
BOOT 90 DEGREE OUTLET FOR CORRUGATED TUBE NW 8.5 GGVS
44
BOOT 90-DEGREE OUTLET FOR CORRUGATED TUBE 10 MM
47
CAP TWO-PIN PLUG CONNECTION,126372
50
CAP
53
SEAL RING ENGINE SPEED SENSOR, ORANGE 9.25X1.8, 2PIN
53
O-RING. SEAL RING BRAKE WEAR SENSOR,HIGHLY FLEXIBLE, ORANGE 10.0X2.0, 3PIN
53
O-RING. SEAL RING BRAKE WEAR SENSOR,HIGHLY FLEXIBLE, BLACK 9.5X1.8, 3PIN
53
SEAL RING ENGINE SPEED SENSOR, BLACK 10.0X2.0, 2PIN
56
LOCK INSULATING HOSE
59
CAP. BOOT ,126372
62
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
62
CLAMP
62
CLAMP CABLE HARNESS MOUNTING
62
CLAMP35/20, Replaced By: N000000007514
62
CLAMP LINE MOUNTING
62
CLAMP IDLING ADJUSTMENT WIRE CABLE,K 147121
62
CLAMP LINE MOUNTING 15-18 MM,V 207570
62
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
62
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
62
CLAMP HOSE TO FLANGE AND TO VALVE
62
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
62
CLAMP30 / 25
62
CLAMP , Replaced By: N916016010211
65
HEXAGON HEAD BOLT SUPPORT TO FRAME M14X1.5X60
65
HEXALOBULAR BOLT ELECTRIC CABLE MOUNTING M5X10,V 213244
65
SCREW , Replaced By: N304017006026
65
SCREW. HEXAGON HEAD BOLT GGVS-COMPONENT IN BATTERY CARRIER M8X55
65
SCREW , Replaced By: N910143008000
65
SCREW BRACKET TO SIDE MEMBER M8X20
65
SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION
65
SCREW , Replaced By: N914146006102
65
HEXAGON HEAD BOLT. SCREW ON STOP M 8X50
65
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
65
SCREW PICK-UP PLATE BRACKET ON LONGITUDINAL MEMBER M 14X25
65
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
65
SCREW BRACKET TO CAB REAR PANEL M 8X20
65
SCREWM 8X22, T40
65
SCREW 3/2-WAY VALVE TO BRACKET
65
HEXAGON HEAD BOLT. SCREW BATTERY MOUNTING M5X12
65
SCREWM4X30
65
HEXAGON HEAD BOLT HEAT SHIELD MOUNTING M16X1.5X30
65
HEXAGON HEAD BOLT REFRIGERANT LINE TO CYLINDER HEAD M6X65
65
SHEET METAL SCREW BRACKET TO FLOOR PLATE
65
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
65
HEXALOBULAR BOLT. SCREW BATTERY CABLE TO BRACKET M6X40
65
HEXALOBULAR BOLT. SCREW BRACKET TO TELMA BRAKE M 6X45
65
SCREW BRACKET AND CLAMP M6X20
68
NUT BRACKET TO FIRE WALL
68
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
68
HEXAGON NUT. NUT BRACKET TO CAB REAR PANEL
68
NUT HEATING PIPE TO BRACKET
68
MOLDED PIECE22-22-17
68
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
68
NUT RELAY TO BRACKET M5
68
HEXAGON NUTM14X1.5
68
NUT BRACKET MOUNTING
68
LOCK. NUT , Replaced By: A0039941745
68
NUT , Replaced By: N913023006001
68
NUT-AND-WASHER ASSEMBLY. NUTM4
69
WASHER DIA., 3,2MM
71
CLAMP ELECTRIC CABLE MOUNTING TO FIRE WALL
71
CLAMP HOSE TO FLANGE AND TO VALVE
74
LOCK NUT. SPRING NUT STEP TO ENTRANCE
74
LOCK
74
LOCKM6
74
LOCK. NUT , Replaced By: A0039941745
74
LOCK NUT. SPRING NUT MOUNTING PARTS
76
BRACKET
76
BRACKET ALTERNATOR
77
BRACKET
80
BRACKET
83
BRACKET
86
BOOT , Replaced By: A0005464635
86
BOOT , Replaced By: A0005464635
89
BRACKET
92
CABLE TIE. LOOM TIE , Replaced By: A0019978490
92
CABLE TIE310X5MM
92
CABLE TIE LINE MOUNTING 375X8.4MM
92
LOOM TIE
92
CABLE TIE , Replaced By: A0049971890
95
BRACKET MOUNT FRAME BASIC MODULE 15X1,5X1100MM
98
BOOT , Replaced By: A0005463335
101
SEALING TAPE BLACK 25 MM / 66 M
101
INSULATING TAPE BLACK 0,15X25MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
107
COVER PLATE
110
HOSE CLAMP
113
BRACKET CHARGING PLUG SOCKET
116
BRACKET STARTER LOCK-OUT SWITCH
119
ANGLE FUSE STRIP
121
BRACKET OUTBOARD TEMPERATURE FEELER
124
BRACKET HOSE ATTACHMENT
124
BRACKET
127
BRACKET
127
BRACKET
127
BRACKET , Replaced By: A0005010070
130
BRACKET ROCKER SWITCH
133
BRACKET , Replaced By: A3014780040
