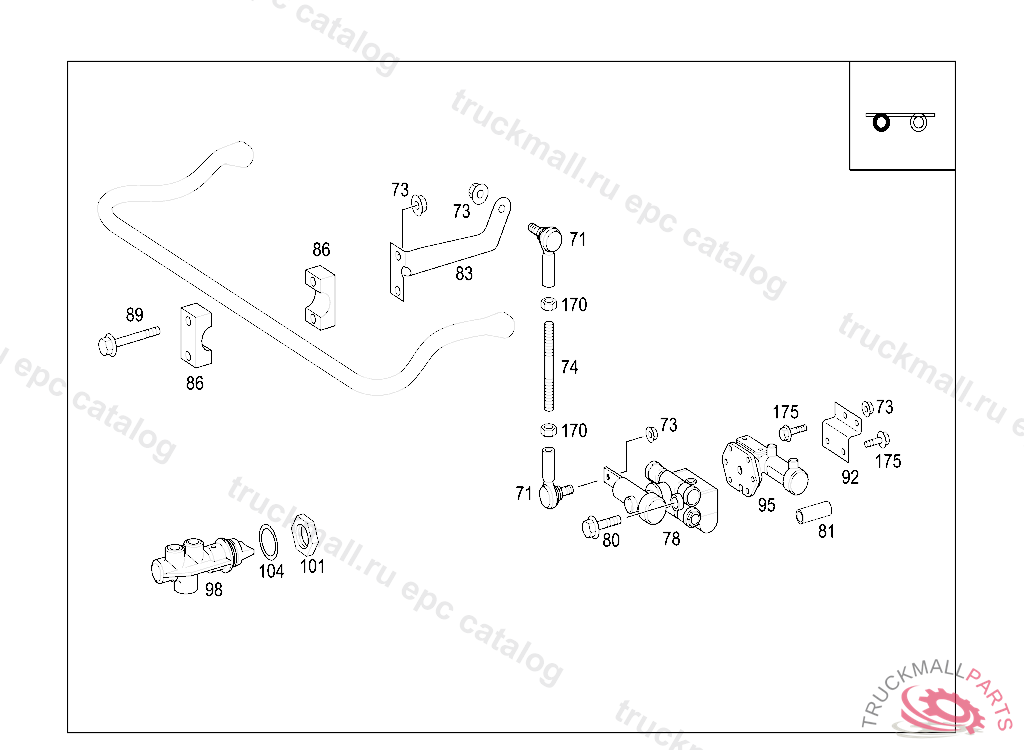

Поз.
Артикул
Описание
71
ANGLE JOINTA13
71
JOINTA13, Replaced By: A0019962545
73
NUT HORN TO BRACKET M8
73
NUT ENGINE MOUNTING M8
74
ROD FROM AIR SPRING VALVE TO REAR AXLE M8X250MM
74
ROD FROM AIR SPRING VALVE TO FRONT AXLE 8 X 90 MM
78
VALVE FRONT AXLE
80
SCREWM8X120,D 250888 NOT USED
80
SCREW VALVE TO BRACKET M 8X60
81
SPACER SLEEVE. SPACER TUBEL46MM
83
LEVER
86
COVER
89
SCREW , Replaced By: N910143008009
92
BRACKET
95
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
98
VALVE REAR AXLE LEVEL ADJUSTMENT VALVE
101
NUT VALVE TO BRACKET
104
WASHER
170
NUT
175
SCREW , Replaced By: N910143008002
