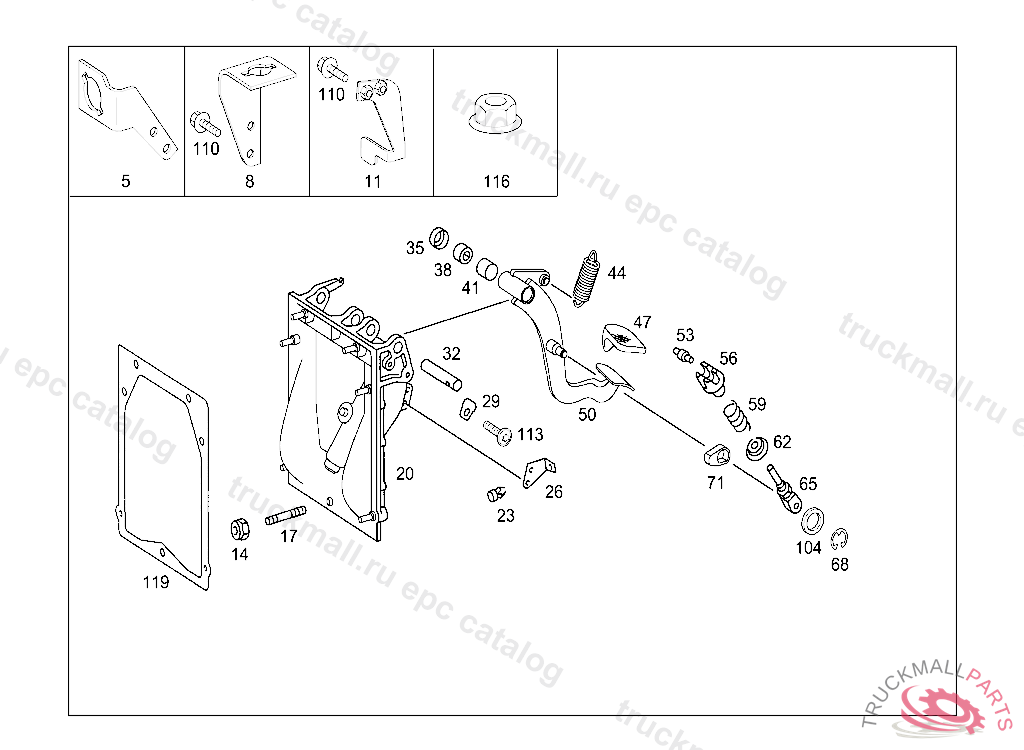

Поз.
Артикул
Описание
5
STOP
8
STOP
11
LEVER
14
NUT HORN TO BRACKET M8
14
NUT BRACKET TO BATTERY IMPLEMENT CARRIER M8
17
STUD
20
BEARING BRACKET (PEDAL BEARING BRACKET)
23
STOP BRAKE PEDAL
26
STOP CLUTCH PEDAL
29
LOCK CLUTCH AND BRAKE PEDAL PINS TO BEARING BRACKETS
32
PIN CLUTCH PEDAL TO BEARING BRACKET
35
WASHER CLUTCH PEDAL TO BEARING BRACKET
38
NEEDLE BEARING
38
NEEDLE BEARING CLUTCH PEDAL
38
NEEDLE BEARING CLUTCH PEDAL
41
SPACER TUBE CLUTCH PEDAL
44
SPRING PEDAL RETURN SPRING
47
PAD , Replaced By: A1072910182
50
PEDAL CLUTCH,D 561822
53
PIN CLUTCH PEDAL RESET
56
SPRING RETAINER CLUTCH PEDAL RESET
59
SPRING CLUTCH PEDAL RESET
62
SPRING RETAINER CLUTCH PEDAL RESET
65
ROD CLUTCH PEDAL RESET
68
LOCKING WASHER. LOCK PLATE CLUTCH PEDAL RESET
71
STOP CLUTCH PEDAL RESET,5 219889
104
WASHER PULL ROD TO SHIFT LEVER
104
WASHER P.T.O. TO TRANSMISSION
110
SCREW BRACKET AND CLAMP M6X20
110
SCREW , Replaced By: N914146006102
110
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
113
SCREW CLAMP MOUNTING M 6X16
116
NUT BRACKET TO FIRE WALL
119
GASKET BEARING BRACKET TO CAB
