Поз.
Артикул
Описание

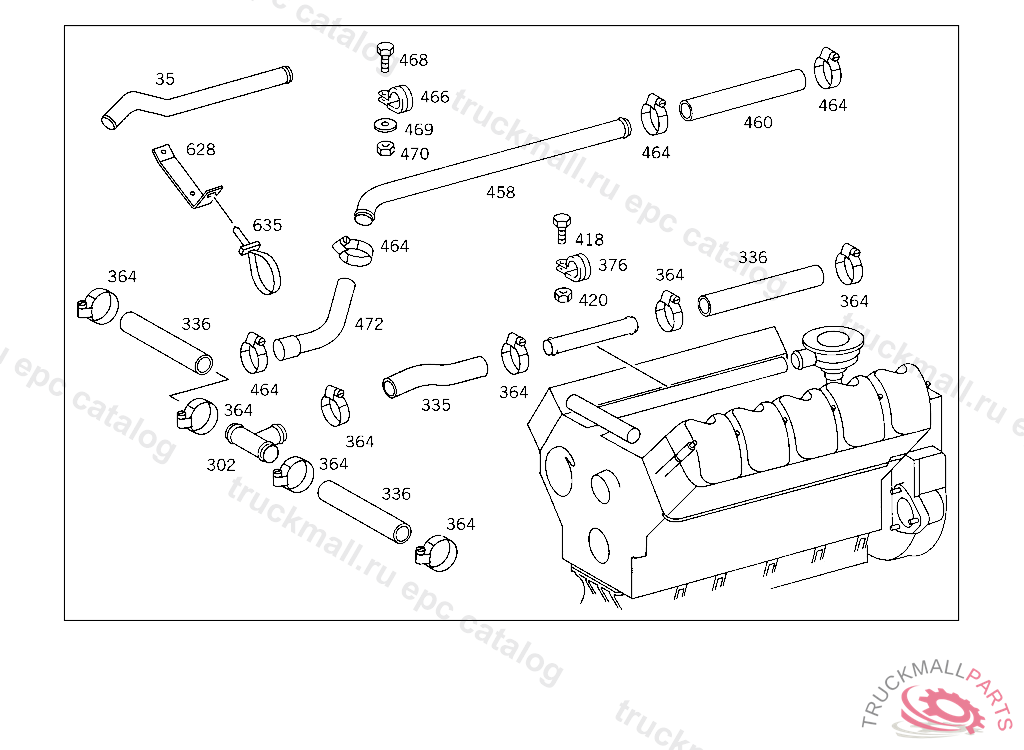

35
BREATHER PIPE
302
CONNECTOR BREATHER PIPE TO TRANSVERSE INTAKE PIPE SOCKET AND TO OIL SEPARATOR,RESP.
335
HOSE
335
HOSE
336
HOSE INTAKE PIPE TO BREATHER PIPE,OM 352
336
HOSE HOSE TO AIR INTAKE PIPE & TO AIR COMPRESSOR & ENGINE BREATHER,RESP., ORDER BY THE METER
336
HOSE
336
HOSE ELBOW TO TRANSVERSE INTAKE PIPE
336
HOSE INTERMEDIATE PIPE TO OIL SEPARATOR
364
CLAMP PRESSURE REGULATOR
364
CLAMP25-40X13 MM
364
CLAMP , Replaced By: N000000000670
364
LOOM TIE , Replaced By: N000000000668
364
CLAMP , Replaced By: A0069970490
376
CLAMP HOSE TO FLANGE AND TO VALVE
418
SCREW , Replaced By: N304017006018
418
SCREW , Replaced By: N304017008016
418
SCREW COVER PLATE TO COVER PLATE M 6 X 12
418
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
420
NUT BALL PIVOT TO LEVER
458
PIPE (INTERMEDIATE PIPE)
460
HOSE INTAKE PIPE TO BREATHER PIPE,OM 352
464
CLAMP25-40X13 MM
464
CLAMP , Replaced By: N000000000670
464
LOOM TIE , Replaced By: N000000000668
464
CLAMP , Replaced By: A0069970490
466
CLAMP HOSE TO FLANGE AND TO VALVE
468
SCREW BRACKET TO EXHAUST PIPE BRACKET
468
SCREW , Replaced By: N304017006018
468
SCREW COVER PLATE TO COVER PLATE M 6 X 12
469
WASHER COMPRESSED AIR LINE TO BRACKET
469
WASHER , Replaced By: N009021006208
470
HEXAGON NUT. NUT , Replaced By: N913023008002
470
NUT ENGINE MOUNTING M8
470
NUT BALL PIVOT TO LEVER
472
HOSE MOLDED HOSE,064694
628
BRACKET CYLINDER CRANKCASE BREATHING
635
LOOM TIE TO MOUNT PLASTIC PIPING
999
CLAMP , Replaced By: N916016025201
999
CLAMP , Replaced By: N916016032201
999
CLAMP , Replaced By: N916016032200
999
LOOM TIE
999
LOOM TIE , Replaced By: N916017025000
999
LOOM TIE , Replaced By: A0019974390
999
BRACKET
999
PIPE BEND ENGINE BREATHING
999
PIPE ENGINE BREATHING
999
HOSE , Replaced By: A3909970682
999
HOSE340 MM
999
HOSE , Replaced By: A4010180732
999
HOSE , Replaced By: A3520181882
999
HOSE
999
HOSE , Replaced By: A4030181782
999
CONNECTOR , Replaced By: A4030180509
999
CONNECTOR , Replaced By: A4030180509
999
BRACKET MOLDED HOSE TO INTAKE MANIFOLD,064694
999
BRACKET MOLDED HOSE TO INTAKE MANIFOLD,064694
999
BRACKET , Replaced By: A4030184340, +001A0019974290
999
BREATHER PIPE , Replaced By: A4030180612
999
HOSE , Replaced By: A3520182182
999
HOSE , Replaced By: A3520182182
999
HOSE , Replaced By: A3520182182
999
HOSE , Replaced By: A3520182182
999
HOSE MOLDED HOSE
999
HOSE , Replaced By: A4255280482
999
HOSE , Replaced By: A3520182182
999
PIPE (INTERMEDIATE PIPE)
999
PIPE (INTERMEDIATE PIPE)
999
HOSE MOLDED HOSE
999
PIPE (INTERMEDIATE PIPE)
999
HOSE , Replaced By: A4020180382
999
BRACKET BREATHER LINES
999
LINE
999
HOSE BREATHER LINE TO OIL SEPARATOR
999
PIPE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 005390, Replaced By: A4240100155
999
HOSE MOLDED HOSE
999
BREATHER PIPE
999
PIPE , Replaced By: A4070181145
999
BRACKET INTERMEDIATE PIPE TO OIL SEPARATOR
999
BRACKET , Replaced By: A3525462243
999
BREATHER PIPE
999
INTAKE PIPE
999
INTAKE PIPE
999
HOSE , Replaced By: A4210180282
999
HOSE MOLDED HOSE
999
BREATHER PIPE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO ENGINE 442.950-480148, Replaced By: A4420180212
999
FITTING AT AIR COMPRESSOR
999
PIPE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4240100555
999
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4240180382
999
HOSE HOSE TO OIL FILLER PIPE AND TO PIPE SOCKET ON OIL PAN 135 MM, ORDER BY THE METER
999
BREATHER PIPE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4270180412
999
BREATHER PIPE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A4270180512
999
BREATHER PIPE , Replaced By: A4290180112
999
HOSE 18-MM-DIA. LINE
999
SCREW FITTING , Replaced By: A4039971172
999
CLAMP PUMP TO BRACKET
