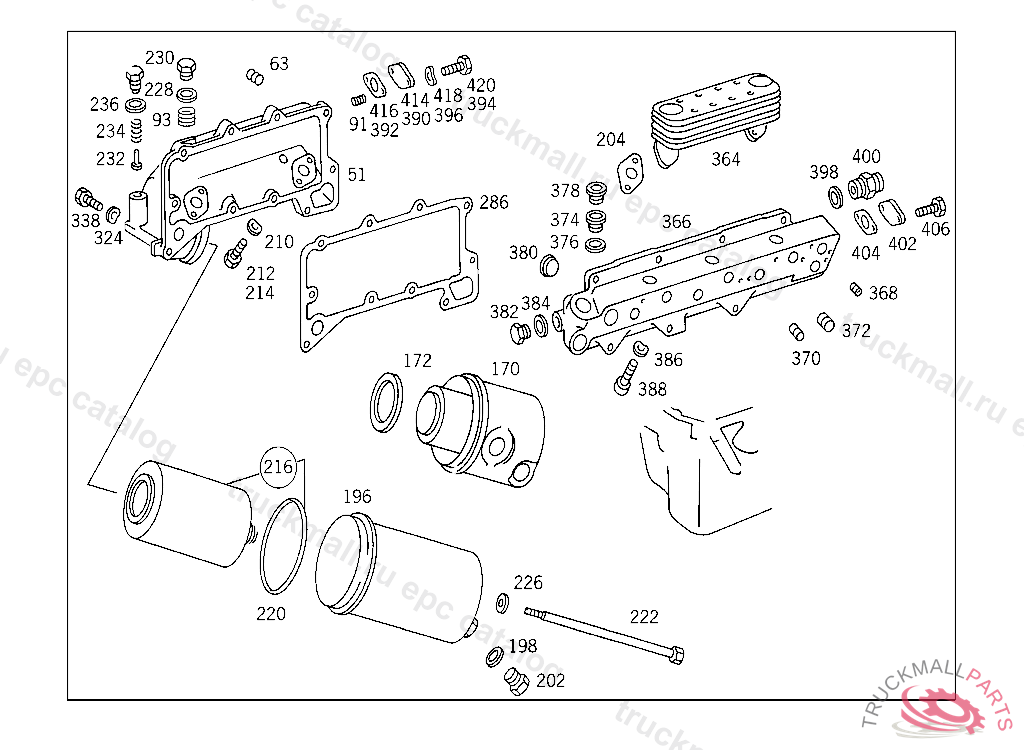

Поз.
Артикул
Описание
51
COVER OIL FILTER
51
COVER OIL FILTER, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
63
THREADED INSERT
63
THREADED INSERT DE-AERATION LINE TO COOLING WATER LINE
63
THREADED INSERT
63
THREADED UNION OIL FILTER
63
THREADED INSERT
91
THREADED INSERT
93
THREADED INSERT REPAIR SIZE, TO BE ADAPTED DURING ASSEMBLY
170
CONNECTOR
172
GASKET
196
FILTER BOWL , UP TO ENGINE 923826 YEAR OF MANUFACTURE 1988
196
FILTER BOWL OIL FILTER BOWL
196
OIL TANK , Replaced By: A4031800011
196
OIL TANK , Replaced By: A4011800011
196
HOUSING , Replaced By: A4011800011
198
SEAL RING VALVE TO VALVE,K 025179
202
SCREW PLUG SHIFTING SHAFT DETENT
202
SCREW PLUG , Replaced By: A4429970030
204
SEAL. GASKET , Replaced By: A3661880880
210
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
210
SPRING WASHER , Replaced By: N000137008212
212
SCREW STOP TO BATTERY CASE
214
HEXALOBULAR BOLT. SCREW SUPPORT TO CYLINDER HEAD
214
HEXAGON HEAD BOLT. SCREW CABLE HARNESS TO BRACKET M8X40
216
FILTER ELEMENT RANGE OF DELIVERY
216
FILTER ELEMENT WITH GASKETS
220
SEAL RING FILTER BOWL TO FILTER HEAD
222
SCREW
222
SCREW OIL FILTER HOUSING TO OIL FILTER HEAD, UP TO ENGINE 923826 YEAR OF MANUFACTURE 1988
222
SCREW OIL FILTER BOWL WITH FULL-FLOW FILTER TO OIL FILTER HEAD
222
SCREW OIL FILTER BOWL WITH FULL-FLOW FILTER TO OIL FILTER HEAD
226
SEAL RING FUEL LINE TO FEED PUMP
226
SEAL RING FROM FUEL TANK TO FUEL TANK
228
SEAL RING
228
SEAL RING TO PLUG AIR COMPRESSOR CYLINDER HEAD TO 003 131 48 01
228
SEAL RING OIL FILLING
230
SCREW PLUG
232
VALVE
234
SPRING BY-PASS VALVE
236
SEAL RING
286
GASKET OIL FILTER HEAD & OIL COOLER COVER WITH OIL COOLER TO CRANKCASE
324
SPRING WASHER STEERING COLUMN BRACKET TO CAB
324
SPRING WASHER
338
HEXAGON HEAD BOLT BRACKET TO BRACKET M10X35
338
HEXAGON HEAD BOLT P.T.O. TO TRANSMISSION M10X150
338
SCREW OIL FILTER TO CYLINDER CRANKCASE
338
HEXAGON HEAD BOLT. SCREW SHIFTING TUBE TO SHIFT LEVER M 10X90
338
SCREW BRACKET TO SIDE MEMBER M10X35
338
SCREW , Replaced By: N304017010047
338
SCREW , Replaced By: N304014010004
364
OIL COOLER , ORDER NUMBER: 001 188 88 01/33
364
OIL COOLER , ORDER NUMBER: 001 188 89 01/33
364
OIL COOLER ,907 845891
364
OIL COOLER ,121800907 845891
364
OIL COOLER
366
HOUSING OIL FILTER
368
THREADED INSERTM 38X1,5X16MM
370
THREADED INSERT ,5 462573
372
THREADED INSERT
374
THREADED UNIONM 42X1,5X15MM,010243
376
SEAL RING OIL COOLER CONNECTION
378
SCREW PLUG
380
SCREW PLUG TRANSMISSION CASE,BOTTOM
380
SCREW PLUG TO PLUG THE OIL PASSAGES
382
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
382
SCREW PLUG , Replaced By: N000908022011
384
SEAL RINGTO 376 131 74 01
386
SPRING WASHER STEERING COLUMN BRACKET TO CAB
388
SCREW TIGHTENER PULLEY TO BEARING BRACKET,069451
388
SCREW , Replaced By: N000912010031
390
FLANGE PREHEATER CONNECTION TO BEARING HOUSING
392
GASKET PREHEATER CONNECTION TO BEARING HOUSING
394
SCREW STOP TO BATTERY CASE
396
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
396
SPRING WASHER , Replaced By: N000137008212
398
SEAL RING PRESSURE REGULATOR,CONNECTION: "23",5 161701
400
SCREW FITTING
402
FLANGE (BLIND FLANGE)
404
GASKET HEATING PIPE TO ENGINE
406
SCREW STOP TO BATTERY CASE
414
FLANGE (BLIND FLANGE)
416
GASKET HEATING PIPE TO ENGINE
418
SPRING WASHER , Replaced By: N000137008212
418
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
420
SCREW 4/2-WAY VALVE TO BRACKET
999
GASKET , Replaced By: N917003026003
999
FITTING WATER SEPARATOR
999
UNION NUT
999
SCREW FITTING , Replaced By: A4039971172
999
LOCKING CONE
999
LOCK WASHERROCKINGER TYP 59 G140,59 G150
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
SCREW EXHAUST PIPE,FRONT,ON FLYWHEEL HOUSING
999
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
999
HEXAGON HEAD BOLT AUTOMATIC TRANSMISSION AT ENGINE M10X60
999
SCREW CLAMP ON BRACKET
999
ROUND SECTION SEAL RING INTERMEDIATE PIECE TO CYLINDER CRANKCASE
999
ROUND SECTION SEAL RING INTERMEDIATE PIECE TO CYLINDER CRANKCASE
999
PART NAME MISSING OIL FEED LINE TO OIL FILTER, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
CLAMPING PIECE OIL FEED LINE TO OIL FILTER, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
CLAMPING PIECE OIL FEED LINE TO OIL FILTER, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
PIPE ELBOW OIL RETURN LINE TO OIL PAN, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
PIPE ELBOW OIL LINES ON LONG-LIFE OIL FILTER
999
SCREW CONNECTOR TO REAR SHIFTING ROD
999
SCREW CLUTCH OPERATION,4 282707
999
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
HEXAGON HEAD BOLT BRACKET TO NO.1 CROSS MEMBER M8X35
999
SCREW SUPPORT TO FENDER
999
SCREW LINE MOUNTING M 10X50
999
SEAL RING POWER STEERING PUMP TO BEARING FLANGE
999
SEAL RING FILTER BOWL TO FILTER HEAD
999
SEAL RING
999
SEAL RING INJECTION PUMP
999
SEALING RING. SEAL RING ENGINE BREATHING
999
SEAL RING BRAKE POWER REGULATOR,CONNECTION: "41,42",067640
999
NUT BRACKET TO SUPPORT AND TO END PIECE
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW , Replaced By: N304017010047
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: N304014010004
999
SCREW , Replaced By: N304017008018
999
CAP BOLT. SCREW BUMPER TO BRACKET,5 398606
999
SCREW INTERMEDIATE PIECE TO CYLINDER CRANKCASE
999
SCREW PLUG OIL FILLING
999
SCREW PLUG FRONT COVER
999
LOCK RING SHIFT LEVER BEARING
999
WASHER VIBRATION ABSORBER TO BRACKET
999
SPRING WASHER , Replaced By: N000137008212
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW PLUG , Replaced By: A1119970330
999
BRACKET OIL FEED LINE TO OIL FILTER
999
SCREW PLUG OIL LINES ON LONG-LIFE OIL FILTER
999
OIL LINE OIL LINE TO CYLINDER CRANKCASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
OIL LINE OIL FEED LINE TO CYLINDER CRANKCASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
OIL LINE OIL FEED LINE TO CYLINDER CRANKCASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
FITTING OIL FEED LINE TO CYLINDER CRANKCASE, TO BE ORDERED ONLY FROM MTU-FRIEDRICHSHAFEN
999
SPACER
999
OIL FILTER COVER
999
BRACKET OIL FEED LINE TO OIL FILTER
999
GASKET , Replaced By: A4421880580
999
GASKET TO PLUG AIR COMPRESSOR CONNECTION ON CYLINDER CRANKCASE
999
GASKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A4421312080
999
HOUSING , Replaced By: A4241800037
999
COVER
999
BRACKET OIL LINES
999
BRACKET OIL LINES
999
CLAMPING BRACKET OIL FILTER TO BRACKET,5 218089
999
COVER , Replaced By: A4441801538
999
COVER
999
COVER , Replaced By: A4071800438
999
LINE
999
BAFFLE PLATE OIL COOLER HOUSING,001965
999
GASKET , Replaced By: A4441880080
999
GASKET , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 401-403, 421-423, 441-443 735001 404, 424, 444 051301 407, 447015077, Replaced By: A4441840080
999
COVER OIL COOLER HOUSING
999
COVER OIL FILTER
999
HOUSING , Replaced By: A4041800637
999
PARTITION PANEL ,001964
999
FITTING FROM INTAKE MANIFOLD TO VACUUM LINE, FROM IDENT NO.002799-360785
999
SCREW PLUG
999
GASKET , Replaced By: N917003026000
999
GASKET , Replaced By: A4421880280
999
GASKET , Replaced By: A4031840380
999
VALVE , Replaced By: A4031840132
999
FILTER ELEMENT , Replaced By: A4021800009
999
COVER OIL FILTER,OIL COOLER
999
COVER , Replaced By: A0011840408
999
OIL FILTER , Replaced By: A0011840408
999
COVER , Replaced By: A4031801438
999
GASKET
999
FILTER ELEMENT , Replaced By: A4011800009
999
OIL FILTER , Replaced By: A0011840408
999
FLANGE HEATING CONNECTION LOCK,5 301949
999
SCREW PLUG , Replaced By: A4429970030
999
SCREW PLUG , Replaced By: A4039970230
999
FITTING , Replaced By: A0029977472
999
SCREW PLUG, FILLING OIL DRAIN
999
SCREW INTERMEDIATE PIECE TO CYLINDER CRANKCASE
999
SPRING
999
SPRING
999
SCREW , Replaced By: N910105016029
999
OIL COOLER
999
OIL FILTER , Replaced By: A4011800210
999
OIL FILTER , Replaced By: A4031801110
999
FILTER ELEMENT
999
FILTER ELEMENT , Replaced By: A0001801809
999
VALVE , NOT USED
999
SEAL RING , Replaced By: A0009976049
999
OIL COOLER , ORDER NUMBER 001 188 40 01/29, Replaced By: A0021882301
999
OIL COOLER , ORDER NUMBER 001 188 37 01/29, Replaced By: A0011888901
999
OIL COOLER , ORDER NUMBER 001 188 30 01/29, Replaced By: A0011883701
999
OIL COOLER , Replaced By: A0011884001
999
OIL COOLER , Replaced By: A0011883101
999
OIL COOLER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0011883001
999
OIL COOLER , Replaced By: A0011883101
999
OIL COOLER , EXHAUST STOCK OF OLD PARTS UP TO ENGINE 121799, Replaced By: A0011883101
999
OIL COOLER , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0001886401
999
FILTER ELEMENT , Replaced By: A4011840025
999
FILTER ELEMENT , Replaced By: A4011840025
