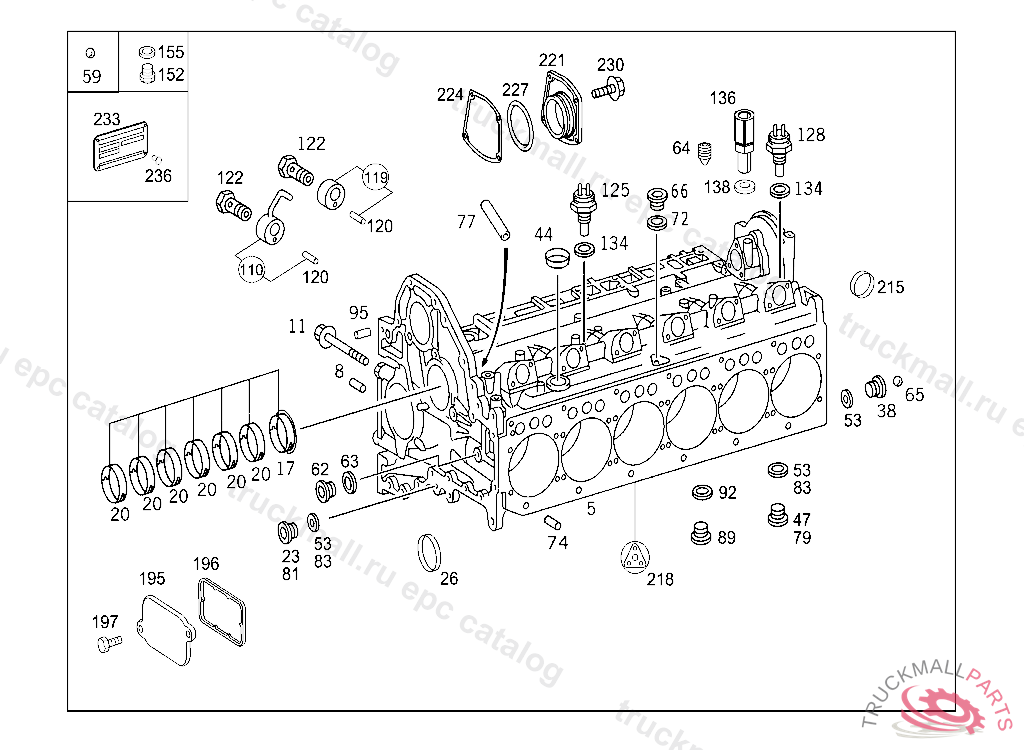

Поз.
Артикул
Описание
5
CRANKCASE , WITH ANGULAR CONTACT BALL BEARING AND CIRCLIP FOR FUEL PUMP ORDER ADDITIONALLY: 1X N 000443 034002
5
CRANKCASE , WITH ANGULAR CONTACT BALL BEARING AND CIRCLIP FOR FUEL PUMP EXHAUST STOCK OF OLD PARTS UP TO ENGINE 098872, Replaced By: A4600101708
5
CRANKCASE , WITH ANGULAR CONTACT BALL BEARING AND CIRCLIP FOR FUEL PUMP ORDER ADDITIONALLY: 1X N 000443 034002, Replaced By: A4600101508
8
DOWEL PIN CRANKSHAFT BEARING CAP
11
SCREW , TO BE ADAPTED DURING ASSEMBLY
17
CAMSHAFT BEARING WITH COLLAR
20
CAMSHAFT BEARING STANDARD 35 MM
20
CAMSHAFT BEARING STANDARD 35 MM
20
CAMSHAFT BEARING STANDARD 30 MM
23
SCREW PLUG OIL-FILTER/LONGITUDINAL-DUCT CONNECTION BORE
23
SCREW PLUG OIL COOLER,5 360280
26
EXPANSION PLUG FITTING SIZE + 1.0,604909
26
EXPANSION PLUG P.T.O. HOUSING
38
SCREW PLUG OIL COOLER,5 360280
44
CAP TO PLUG CORE HOLES 34.2
44
EXPANSION PLUG TO PLUG CORE HOLES 34.2, Replaced By: N000000004057
44
EXPANSION PLUG TO LOCK LONGITUDINAL COOLING WATER DUCT 50.1 MM
47
SCREW PLUG, FILLING HOUSING,BOTTOM M18X1.5
47
SCREW PLUGTO 000 553 03 05,000 553 18 05,
47
SCREW PLUG OIL COOLER,5 360280
53
SEAL RING
53
SEALING RING OIL LINE TO CYLINDER CRANKCASE
53
SEALING RING
59
BALL FRONT AND REAR 14.288 MM
59
BALL SHIFTING CYLINDER
59
BALL TO PLUG AIR COMPRESSORE OIL BORE,FRONT SIDE
59
BALL , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
62
OIL NOZZLE PTO BORE HOLES COVER
63
SEALING RING OIL LINE TO CYLINDER CRANKCASE
64
THREADED PIN TO PLUG TAPPED HOLE FOR AIR COMPRESSOR
65
BALL , UP TO CHASSIS 447270 FROM CHASSIS SEE SPARE PARTS LIST 817,INAPPLICABLE TO R.H.D.AND SUPERCHARGED ENGINE VEHICLES
66
SCREW PLUGTO 000 553 03 05,000 553 18 05,
72
SEALING RING
74
CYLINDER PIN
77
THROTTLE FUEL BORE COVER,UNIT PUMP SIDE
79
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
79
SCREW PLUGTO 000 553 03 05,000 553 18 05,
81
SCREW PLUGTO 000 553 03 05,000 553 18 05,
83
FLAT SEALING RING HEATING CONNECTION
83
SEALING RING
89
SCREW PLUGTO 000 553 03 05,000 553 18 05,
92
SEALING RING
95
CYLINDRICAL PIN TIMING CASE FIXING 16X24
110
OIL NOZZLE PISTON COOLING
119
OIL NOZZLE CAM LUBRICATION
119
OIL NOZZLE CAM LUBRICATION
119
OIL NOZZLE CAM LUBRICATION BANDABLAUF 12/07, ZAM 441/07, C 74310, EXHAUST STOCK OF OLD PARTS UP TO ENGINE 131006, Replaced By: A4571801843
119
OIL NOZZLE CAM LUBRICATION, Replaced By: A4571801843
119
OIL NOZZLE CAM LUBRICATION, Replaced By: A4601800643
120
CYLINDER PIN. CYLINDRICAL PIN
120
CYLINDRICAL PIN
122
HOLLOW SCREW OIL SPRAY NOZZLE TO CYLINDER CRANKCASE
122
HOLLOW SCREW LINE CONNECTION
125
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
125
SENDER UNIT TEMPERATURE SENDER UNIT
128
SENDER UNIT TEMPERATURE SENDER UNIT
128
SENDER UNIT TEMPERATURE GAUGE SENDER UNIT
134
SEALING RING
136
VALVE
138
SEALING RING OIL PRESSURE GAUGE SENDER UNIT
195
COVER CRANKCASE BREATHING
196
GASKET
197
SCREW STOP TO BATTERY CASE
215
EXPANSION PLUG PLUG FOR OIL CHAMBER,UNIT PUMP SIDE
218
GASKET KIT CYLINDER CRANKCASE
233
TYPE PLATE , STATE ENGINE NO.AND CHASSIS NO.WHEN ORDERING
236
RIVET ENGINE PLATE TO ENGINE
