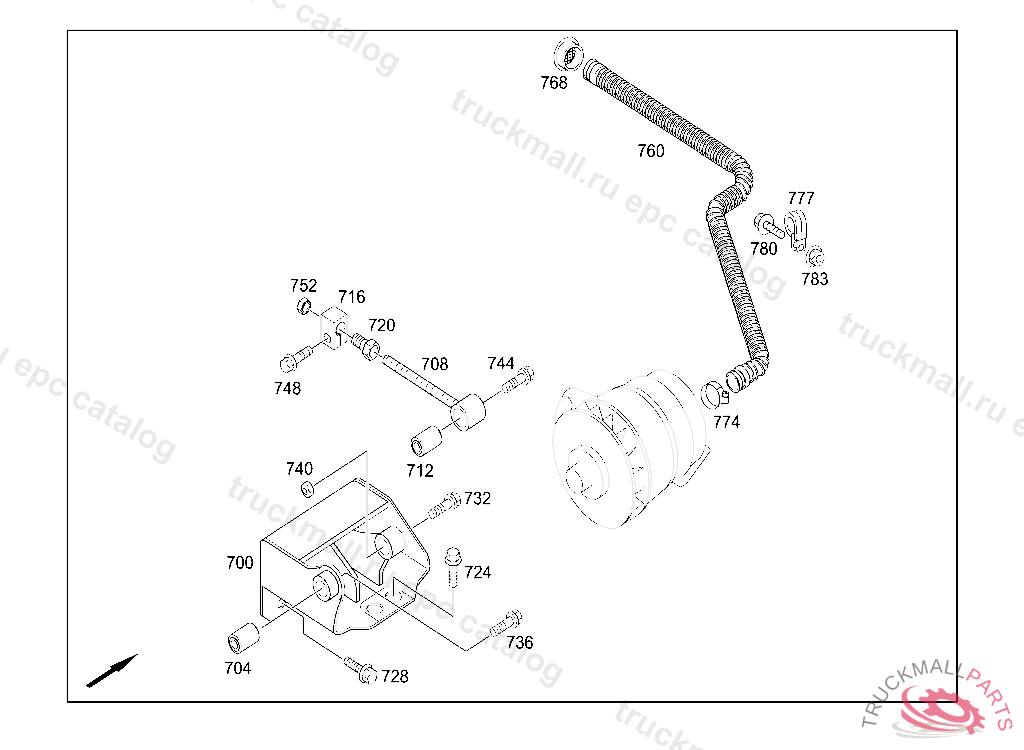

Поз.
Артикул
Описание
700
ENGINE SUPPORT MOUNTING, GENERATOR
704
BUSHING
708
SPINDLE BELT TENSION READJUSTMENT
712
BUSHING BELT TENSION READJUSTMENT
716
CLAMPING PIECE ALTERNATOR
720
NUT BELT TIGHTENER
724
SCREWM 18 X 1,5 X 35
728
SCREW. HEXAGON HEAD BOLT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER M14X1.5X35,V 207570
728
SCREW CONSOLE TO CROSS MEMBER
736
HEXAGON HEAD BOLT. SCREW CLAMP TO DRAG LINK
740
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
744
HEXAGON HEAD BOLT BEARING BRACKET TO SIDE MEMBER M 12X50
748
SCREW PLATE TO FRAME M 10X45
752
NUT ANGLE TO FRAME
760
SUCTION HOSE2500MM
760
HOSE2500MM
768
PROTECTIVE GRILLE ALTERNATOR AIR INTAKE
774
CLAMP CONNECTION OF COOLING WATER LINES 55-75X13MM
777
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
777
CLAMP76/25MM
780
SCREW , Replaced By: N910143008002
783
NUT BRACKET TO FIRE WALL
783
NUT HORN TO BRACKET M8
