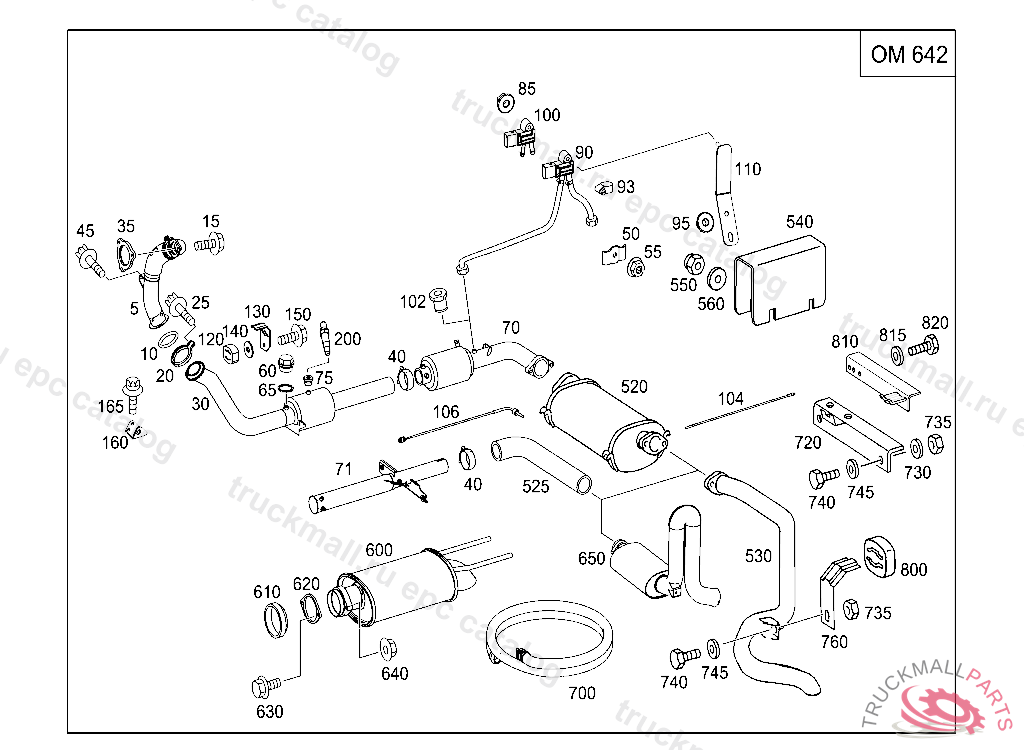

Поз.
Артикул
Описание
15
BOLT CATALYST TO BRACKET M8X20
30
CATALYST
30
CATALYST
35
FLANGE GASKET FRONT
45
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
55
HEXAGON NUT. NUT ELECTRIC CABLE TO ALTERNATOR
85
NUT , Replaced By: N913023006001
95
NUT , Replaced By: N913023006001
104
TEMPERATURE SENSOR TEMPERATURE SENSOR TO PARTICULATE FILTER, A 97499920070630 F 95500020070630, Replaced By: A0071536328
104
TEMPERATURE SENSOR TEMPERATURE SENSOR IN CATALYTIC CONVERTER, B 36335020080605
106
TEMPERATURE SENSOR
106
TEMPERATURE SENSOR UPSTREAM CATALYTIC CONVERTER, A 15823320090504
160
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
165
BRACKET TO THREE-WAY CATALYTIC CONVERTER, X 19271120110531
520
EXHAUST MUFFLER CENTRAL MUFFLER, 113041 913686
530
EXHAUST PIPE CENTRAL MUFFLER
540
PROTECTIVE PLATE HEAT GUARD, X 19471620111028
540
PROTECTIVE PLATE HEAT GUARD, X 17211120070720
550
NUT SPRING-LOADED PUSH ROD
610
SEAL RING FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE E36 AMG
620
FLANGE FRONT EXHAUST PIPE TO CENTRAL EXHAUST PIPE E36 AMG
630
SCREW VALVE TO BRACKET
640
HEXAGON NUT. NUT BRACKET TO FRAME
700
BRACKET RIGHT REAR EXHAUST LINE TO FRAME
720
BRACKET EXHAUST LINE,REAR RIGHT AT FRAME
760
BRACKET EXHAUST LINE,REAR RIGHT AT FRAME
815
WASHER MAIN MUFFLER SUSPENSION 12X24
820
BOLT MAIN MUFFLER SUSPENSION 8X38.5
