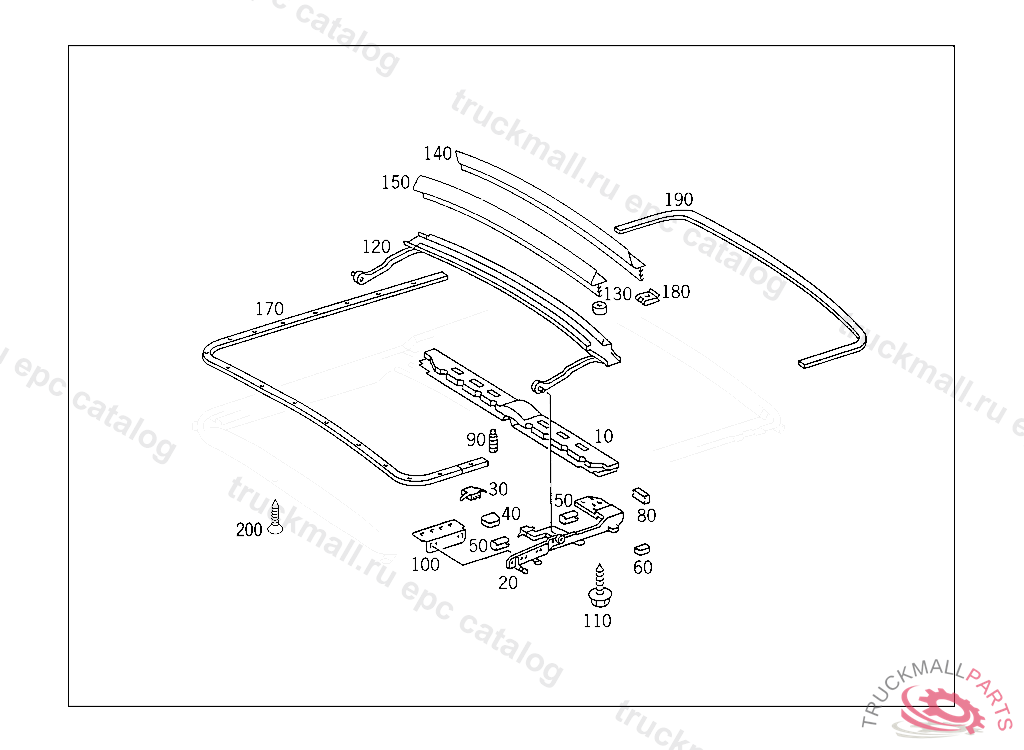

Поз.
Артикул
Описание
10
BRIDGE (TRANSPORT BRIDGE)
20
ANGLE AT TRANSPORT BRIDGE,RIGHT,A 292230
20
ANGLE AT TRANSPORT BRIDGE,LEFT,A 292230
30
SLIDE AT LIFTING BOW
40
SLIDING JAW AT LIFTING BOW
50
SLIDING JAW
60
SLIDING JAW REAR
80
STOP AT TRANSPORT BRIDGE
90
SCREW AT TRANSPORT BRIDGE
90
SCREW LIFTING ANGLE TO TRANSPORT BRIDGE
100
BRACKET ON SLIDING ROOF PLATE,INSIDE
110
HEXALOBULAR BOLT DRIER TO CONDENSER M5X10
110
SCREW
120
RAIL (DRIP MOULDING),WITH SEALING,A 292230
130
INSULATION
140
SEAL730 MM, TO BE ADAPTED DURING ASSEMBLY
150
SEAL830 MM, TO BE ADAPTED DURING ASSEMBLY
170
SEAL BETWEEN TOP AND BOTTOM FRAMES
180
NUT RETAINER BOTTOM FRAME
190
PAD
200
TAPPING SCREW BRACKET MOUNTING 6.3X13
