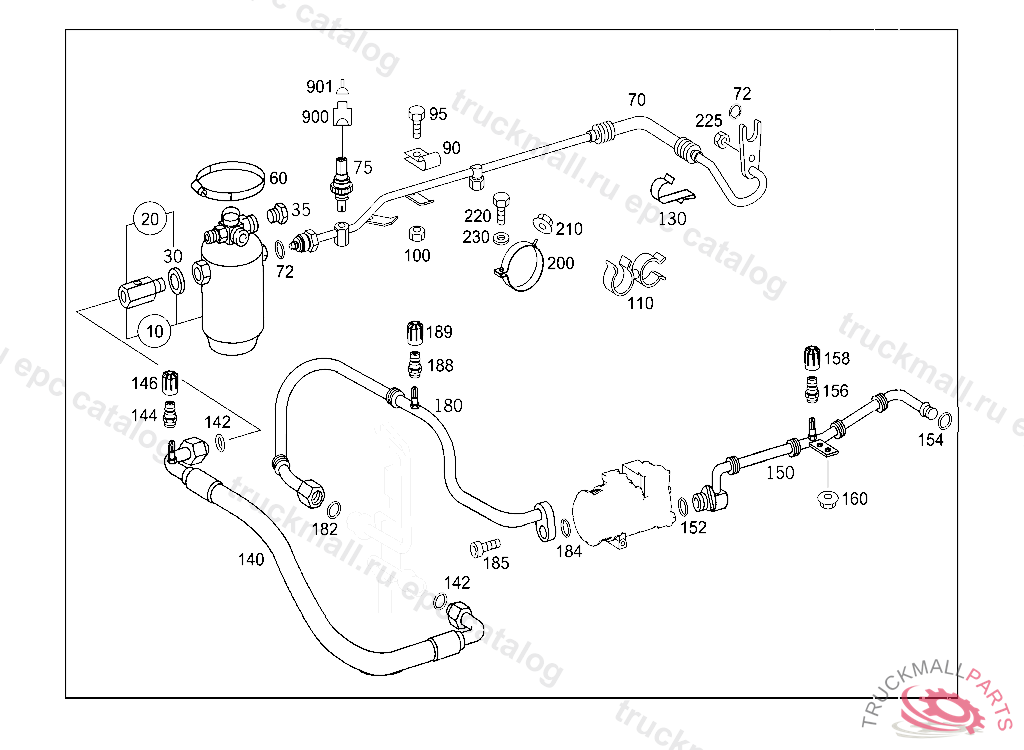

Поз.
Артикул
Описание
10
TANK
10
TANK. DASHPOT , Replaced By: A4635000249, +001A4639970386
20
VALVE
30
SEAL RING FROM EXPANSION VALVE TO COMPRESSOR
35
PLUG
60
CLAMP HOSE 70-90X13 MM
70
PIPELINE BETWEEN FUID RESERVOIR AND EXPANSION VALVE
70
PIPELINE BETWEEN FUID RESERVOIR AND EXPANSION VALVE, X 19989420120531
70
PIPELINE BETWEEN FUID RESERVOIR AND EXPANSION VALVE
70
PIPELINE BETWEEN FUID RESERVOIR AND EXPANSION VALVE
70
LINE. PIPELINE BETWEEN FUID RESERVOIR AND EXPANSION VALVE, X 19479320111028
72
O-RING7.5X2 MM
75
TEMPERATURE SENSOR AT CONDENSER, A 66602420040430805
75
PRESSURE SENSOR
90
CLAMP LINE MOUNTING 15-18 MM,V 207570
90
CLAMP CABLE HARNESS MOUNTING
95
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
95
SCREW PUMP TO BRACKET
100
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
110
HOSE BRACKET. LOOM TIE
130
CLAMP
130
CLIP CABLE HARNESS TO SIDE PART
140
PIPELINE BETWEEN LIQUID TANK AND CONDENSER
142
O-RING7.5X2 MM
144
VALVETO 140 830 05 70
146
CAP
150
REFRIGERANT LINE BETWEEN LIQUID TANK AND CONDENSER
150
SUCTION LINE BETWEEN A/C UNIT,INTAKE SIDE AND COMPRESSOR
150
REFRIGERANT LINE BETWEEN A/C UNIT,INTAKE SIDE AND COMPRESSOR
152
SEAL RING
154
SEAL RING HOSE TO CONDENSER 14 MM
156
VALVE SUCTION LINE
158
CAP , NOT USED
160
HEXAGON NUT ELECTRIC CABLE TO ALTERNATOR TERMINAL B-
180
PIPELINE BETWEEN COMPRESSOR AND CONDENSER, X 17946620081219 X 20407720121031
182
O-RING AT CONDENSER 10.6X2
184
O-RING EXPANSION VALVE TO SEPARATION POINT 17X2
185
SCREW BRACKET TO INTAKE MANIFOLD
188
VALVETO 140 830 05 70
189
CAP
900
SOCKET HOUSING. PIN BUSHING HOUSING POLLUTANT SENSOR, A 698508 X 012426 EXEPT FOR VEHICULES WITH CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
