Поз.
Артикул
Описание

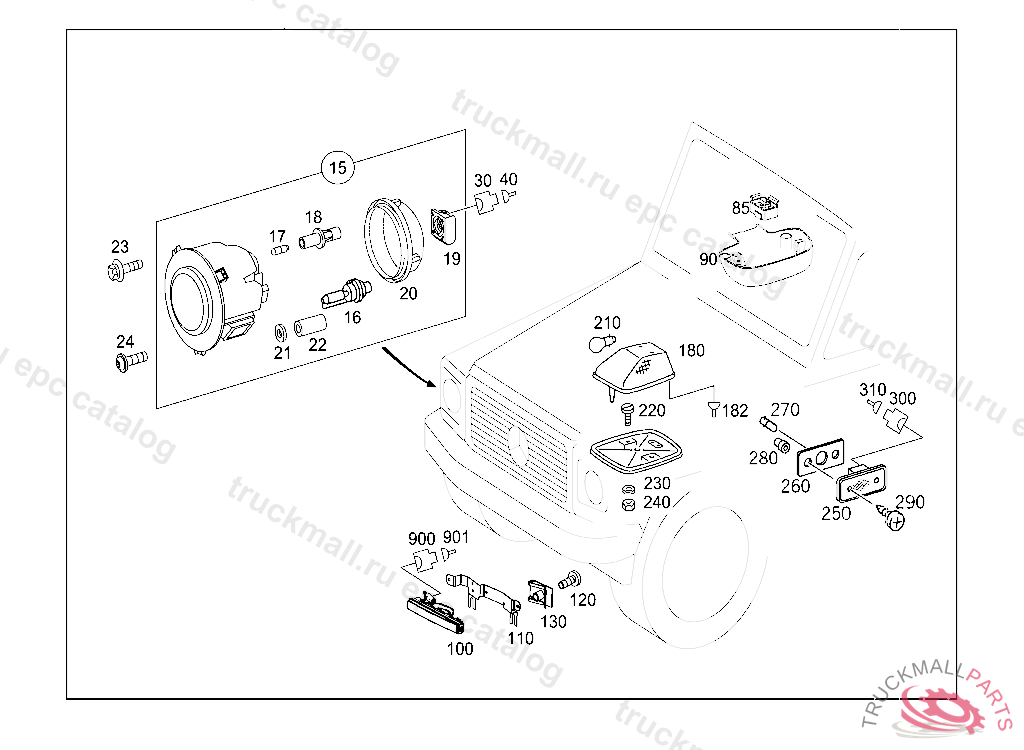

15
LIGHTING UNIT "XENON" FRONT LEFT AND RIGHT, X 16854820061031 X 18350620091217
15
LIGHTING UNIT "XENON" FRONT LEFT AND RIGHT, X 18569620100531
16
GAS DISCHARGE LAMP LOW BEAM D1S 12V-35W, A 02654120100930801
17
BULB POSITION LAMP, LONGLIFE BLUE 12V-5W, J 53092220070910808
17
BULBTO A 6955407048/7148,3825400311/0411
17
BULB PARKING LIGHT,LEFT AND RIGHT 12V-5W, Replaced By: N000000006370
18
LAMP SOCKET PARKING LIGHT,LEFT AND RIGHT, X 16692620060531
19
SERIES TRANSFORMER LEFT AND RIGHT, X 16692620060531
20
PROTECTIVE COWL MAIN BEAM LEFT
21
GASKET F LIGHT HOUSING LEFT AND RIGHT, X 16692620060531
22
HOSE HEADLAMP BREATHING,LEFT
23
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
24
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
30
CAP
30
PIN BUSHING HOUSING
40
HOUSING SEAL. GASKET LINE DIA., 1.6-2.4 MM
40
CONTACT SPRING
40
SHACKLE. CONTACT SPRING0,35-0,5MM
90
COVER RAIN LIGHT SENSOR RAIN AND LIGHT SENSOR, X 20407820121031
100
DAYTIME RUNNING LIGHT LEFT AND RIGHT, ONLY REPLACEABLE BY PAIRS
100
DAYTIME RUNNING LIGHT LEFT AND RIGHT
110
BRACKET RIGHT, X 20407820121031
110
BRACKET LEFT
120
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
130
LOCK
180
DIRECTION INDICATOR FRONT, X 18894720101217
180
BLINKER LAMP FRONT LEFT AND RIGHT
182
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
210
BULB LEFT BLINKER LIGHT 12V-21W
220
SCREW PLUG SOCKET
230
SPRING WASHER ALTERNATOR CONNECTION D+
240
NUT IN CASE OF SUBSEQUENT INSTALLATION
250
SIDE REFLECTOR (SIDE-MARKER LAMP), RED
250
SIDE REFLECTOR (SIDE MARKER LAMP), AMBER
260
SEAL AMBER,LATERAL
270
BULB12 V
280
TREENAIL
280
TREENAIL
290
SHEET METAL SCREW. TAPPING SCREW INSTRUMENT PANEL ON WAIST RAIL 4.2X22,V 202043
300
PIN BUSHING HOUSING CONNECTOR, DASH SUPPORT WIRING HARNESS FRONT MIRROR HEATING X 209, 2 PINCODE A
310
CONTACT BUSHINGR 27, 0.75 MM2
900
PIN BUSHING HOUSING OUTBOARD TEMPERATURE FEELER 2-PIN CODE A,B4,126373
901
GASKET YELLOW 0.2-0.5MM2,126373
901
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
901
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
