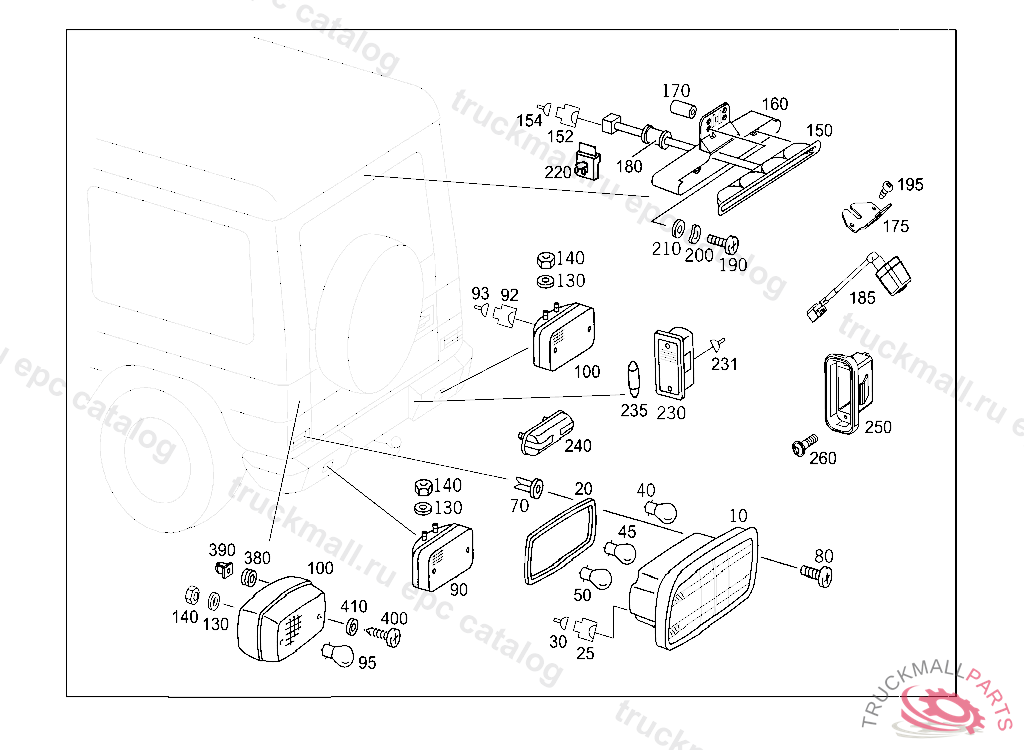

Поз.
Артикул
Описание
10
TAIL LAMP LEFT, X 16995420061222 X 20407720121031
10
TAIL LAMP RIGHT, 20131220
20
SEAL LEFT TAIL LAMP
20
SEAL RIGHT TAIL LAMP
20
SEAL RING LEFT TAILLAMP
20
SEAL RING RIGHT TAIL LAMP, Replaced By: A4638260258
25
SOCKET HOUSING. PIN BUSHING HOUSING
30
CABLE SHOE. PIN BUSHING PRESSURE SWITCH
40
BULB5 W
45
BULB12V21/5W
50
BULB LEFT BLINKER LIGHT 12V-21W
70
DOWEL. TREENAIL
80
SCREW BELT TO LATERAL SEAT BENCH M 4X16
90
BACK-UP LAMP
92
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
93
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2.5 MM2
95
BULB FOG LAMP AND TAILLAMP 12V-21W
95
BULB BLINKER LIGHT P21W - 12V, A 192208 EXCEPT FOR A 159651 - A 192207 WITH CODE 856
95
BULB BACK-UP LIGHT P21W - 12V, Replaced By: N000000006373
100
EXTERIOR LAMP REAR FOGLAMP
100
TAIL LAMP REAR FOGLAMP
130
WASHER
130
WASHER CABLE CONNECTOR TO BRACKET AND TO FRAME,RESP.
140
NUT IN CASE OF SUBSEQUENT INSTALLATION
150
BRAKE LAMP 3RD STOP LAMP
152
SOCKET HOUSING. PIN BUSHING HOUSING FRONT MIRROR R 27, 2 PIN
154
PLUG PINX 209, 0.75 MM2
160
HOUSING ADDITIONAL STOP LIGHT
160
LIGHT HOUSING ADDITIONAL STOP LIGHT
170
PLASTIC PIPE RISING PIPE 4X6 MM
180
GROMMET CABLE OF BRAKE-LINING-WEAR-INDICATOR AT SHOCK ABSORBER CONSOLE
190
SCREW
190
SCREW FUSE BOX TO SIDE MEMBER,5 097182
200
WASHER4MM
200
WASHER COVERING TO CYCLONE AIR TRAP
210
WASHER COVERING TO CYCLONE AIR TRAP
220
CLIP , 055662 903741
230
LICENSE PLATE LAMP , X 19023720110301
231
CONTACT SPRING0.5-1.0 MM2
250
ADAPTER FRAME LICENSE PLATE LAMP
260
BOLT. SCREW (SENSOR CABLE) BRAKE WEAR INDICATOR, REAR,AXLE,LEFT AND RIGHT,V 207570
380
GROMMET
390
LOCK INTERIOR LAMP TO REAR PILLAR
400
SHEET METAL SCREW BRACKET TO SUPPORT
400
TAPPING SCREW SIDE REFLECTORS,K 057592
410
WASHER BRACKET TO SUPPORT
