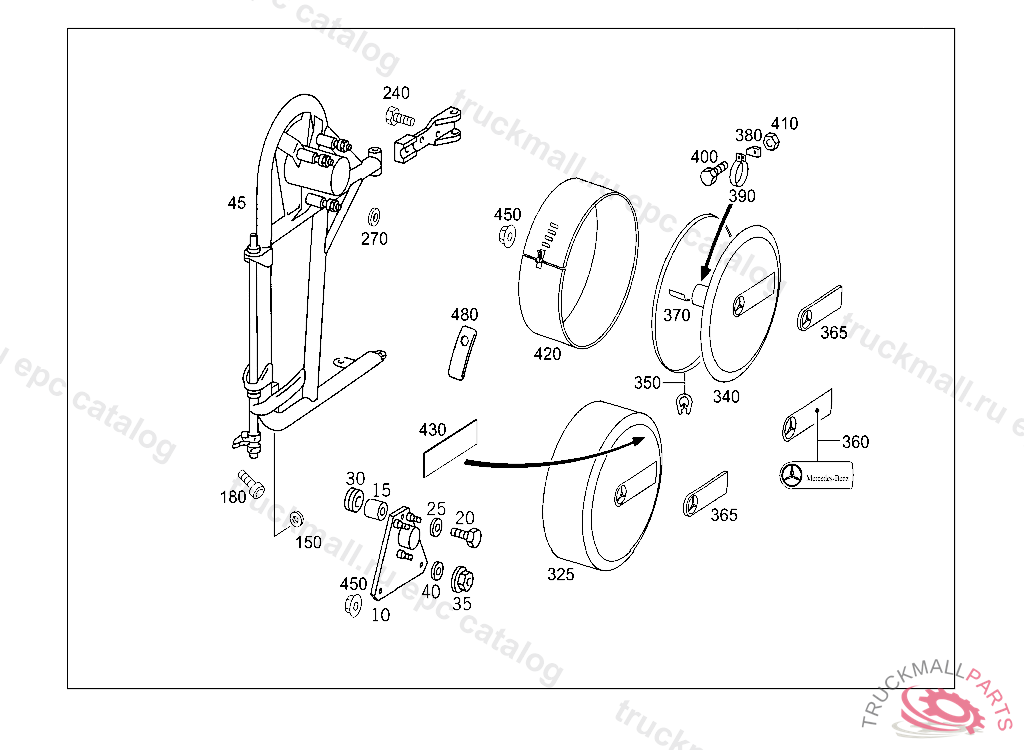

Поз.
Артикул
Описание
10
CARRIER PLATE SPARE WHEEL, X 19218820110531 X 19989320120531 7167QFT463A0505 DEEP GREY
15
SPACER TUBE SPARE WHEEL TO SUPPORT 37 MM
15
SPACER TUBE SPARE WHEEL TO SUPPORT 22 MM
20
SCREW LEVER TO BRACKET
20
SCREW SEAT FRAMEWORK TO FLOOR
25
WASHER RADIATOR TO RUBBER MOUNTING
25
WASHER P.T.O. TO TRANSMISSION
30
GROMMET
35
NUT SPARE WHEEL TO SPARE WHEEL CARRIER
40
WASHER PLATE TO SUPPORT 28/15/2,5
45
BRACKET SPARE WHEEL CARRIER
150
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
180
SCREW , Replaced By: N000000002107
240
SCREW LOCK TO BUMPER
270
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
325
COVER SPARE WHEEL
340
COVER , TO BE PAINTED PRIOR TO INSTALLATION
340
COVER , TO BE PAINTED PRIOR TO INSTALLATION
350
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
360
BADGE EMBLEM: MERCEDES-BENZ
365
PLATE , X 18350620091217
370
PAD960 MM, ORDER BY THE METER
370
PAD SPARE WHEEL
380
STOP
390
CLAMP60.5 MM,4 613839
400
SCREW SUPPORT TO FENDER
410
WASHER
410
NUT
420
TS SPARE WHEEL COVER SPARE WHEEL
430
INSULATION LEFT REAR SIDE DOOR
450
NUT
480
U-SHAPED STRIKER LOCKING HOOK TO A 463 890 72 08, 73 08, X 17189820070705, Replaced By: A4638900589, +001A4638900389
480
CATCH LOCKING HOOK TO A 463 890 13 08 / 48 08, X 17189820070705
