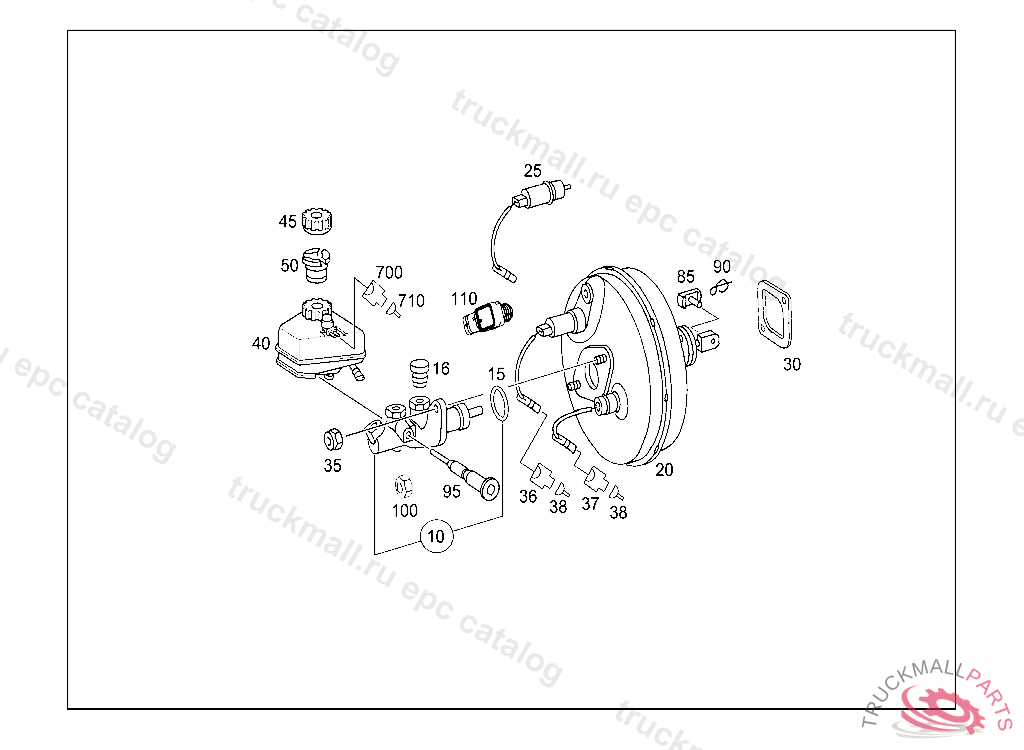

Поз.
Артикул
Описание
10
MASTER BRAKE CYLINDER
15
CIRCUMFERENTIAL GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
16
BUSHING
20
BRAKE BOOSTER
25
SENDER UNIT DIAPHRAGM POSITION SENSOR,BAS
30
CIRCUMFERENTIAL GASKET BRAKE BOOSTER ASSEMBLY TO FIRE WALL
36
CLUTCH. PIN BUSHING HOUSING SIREN
37
CLUTCH. PIN BUSHING HOUSING RADAR SENSOR 6 PIN, CODE B,TO A0004460449
38
CONTACT BUSHING WITH SINGLE-WIRE SEAL 0.5MM2,126373
38
GASKET YELLOW 0.2-0.5MM2,126373
38
GASKET GREEN 0.5-0.75 MM2, PIN 01 - 56
40
TS EXPANSION RESERVOIR
40
RESERVOIR , A 358833 ALSO INSTALLED ON A 331465 - A 358832 WITH CODE 057 ORDER WHEN USING CASE OR STRAINER
45
COVER
50
STRAINER
50
STRAINER BRAKE FLUID RESERVOIR
85
PEDAL HINGE PIN BRAKE BOOSTER ASSEMBLY TO PEDAL, X 19620920111222
90
COTTER PIN LEVER TO ROD
90
LOCK ROD TO BRAKE PEDAL,L 01.03.07B 01.03.07
95
TRUNNION SCREW. SCREW TWO-WAY VALVE,CONNECTION "1.1",4 428564
100
NUT MASTER BRAKE CYLINDER AT BRAKE BOOSTER
110
PRESSURE SENSOR VACUUM SENSOR IN BRAKE UNIT
700
PIN BUSHING HOUSING BIPOLAR
710
ROUND PIN BUSHING4 MM2
