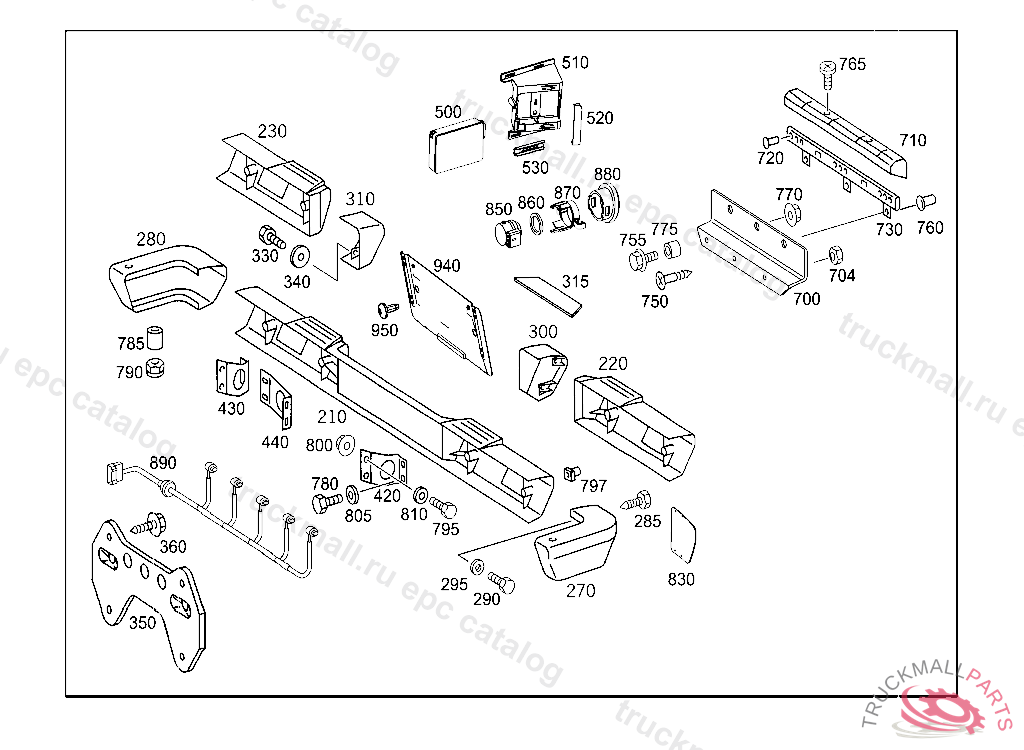

Поз.
Артикул
Описание
210
BUMPER RR REAR, TO BE PAINTED PRIOR TO INSTALLATION
210
BUMPER RR REAR, X 20407820121031 TO BE PAINTED PRIOR TO INSTALLATION
210
BUMPER RR , X 19989420120531 TO BE PAINTED PRIOR TO INSTALLATION
210
BUMPER RR CENTRAL PART
210
BUMPER RR CENTRAL PART, X 19989420120531 TO BE PAINTED PRIOR TO INSTALLATION
270
CORNER SECTION REAR LEFT
270
CAP IN CASE OF REAR FENDER WIDENIG,LEFT, TO BE PAINTED PRIOR TO INSTALLATION
280
CORNER SECTION REAR RIGHT
280
CAP IN CASE OF FENDER WIDENING,REAR RIGHT
285
TAPPING SCREW CAP TO BUMPER 4,8X19
290
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
295
WASHER PUMP TO CONSOLE
315
TRUSS STEP ON REAR BUMPER, TO BE ADAPTED DURING ASSEMBLY
350
PLATE
360
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
420
BRACKET OUTSIDE LEFT
420
BRACKET OUTSIDE RIGHT
420
BRACKET OUTSIDE LEFT, Replaced By: A4638854314
420
BRACKET OUTSIDE RIGHT
430
BRACKET INSIDE LEFT, X 17721520080530
430
BRACKET INSIDE RIGHT, X 20949020130404
440
BRACKET INSIDE LEFT, X 17721520080530
440
BRACKET LEFT, X 17733320080530
500
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE, Replaced By: A0009052604
500
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
500
RADAR SENSOR LEFT AND RIGHT OUTSIDE, PART MUST BE CHECKED AFTER INSTALLATION FOR CURRENT FLASHWARE
510
BRACKET LEFT
510
BRACKET RIGHT
520
BRACKET RADAR SENSOR
530
MOUNTING CLAMP BUMPER LOWER SECTION, J 53092220070910808
530
HOLDDOWN CLIP WHEEL SENSOR, Replaced By: A0039910270
704
NUT IN CASE OF SUBSEQUENT INSTALLATION
780
SCREW APPARATUS PLATE M 6X45
780
HEXALOBULAR BOLT SUCTION LINE TO BRACKET M6X45,V 225942 FOR DIESEL ENGINE ONLY (MS5)
785
SPACER TUBE
790
NUT OIL TANK TO BRACKET
795
SCREW CLAMP TO EXHAUST PIPE
795
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
797
LOCK INTERIOR LAMP TO REAR PILLAR
800
NUT BATTERY CABLE
805
WASHER PUMP TO CONSOLE
805
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
805
WASHER COMPRESSED AIR LINE TO BRACKET
805
WASHER COMPRESSED AIR LINE TO BRACKET
810
WASHER RADIATOR TO RUBBER MOUNTING
810
WASHER P.T.O. TO TRANSMISSION
830
SPLASH GUARD PARKTRONIC SYSTEM
830
SPLASH GUARD PARKTRONIC SYSTEM
850
SENSOR CENTRAL, TO BE PAINTED PRIOR TO INSTALLATION
850
SENSOR PARKTRONIC SYSTEM, X 16968520070101
860
BORDER RING
870
TAKE-UP DEVICE PARKTRONIC SYSTEM, X 20407820121031
880
ESCUTCHEON REAR BUMPER,LEFT AND RIGHT
880
TRIM RING BUMPER, CENTER REAR, X 20407820121031
890
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM, REAR
890
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM, REAR
890
ELECTRICAL WIRING HARNESS PARKTRONIC SYSTEM, REAR
890
WIRING HARNESS PARKTRONIC SYSTEM, REAR, X 16995420061222
940
FASTENING PLATE DESIGNATION, J 50145420090609
940
FASTENING PLATE AT REAR PANEL DOOR
950
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
