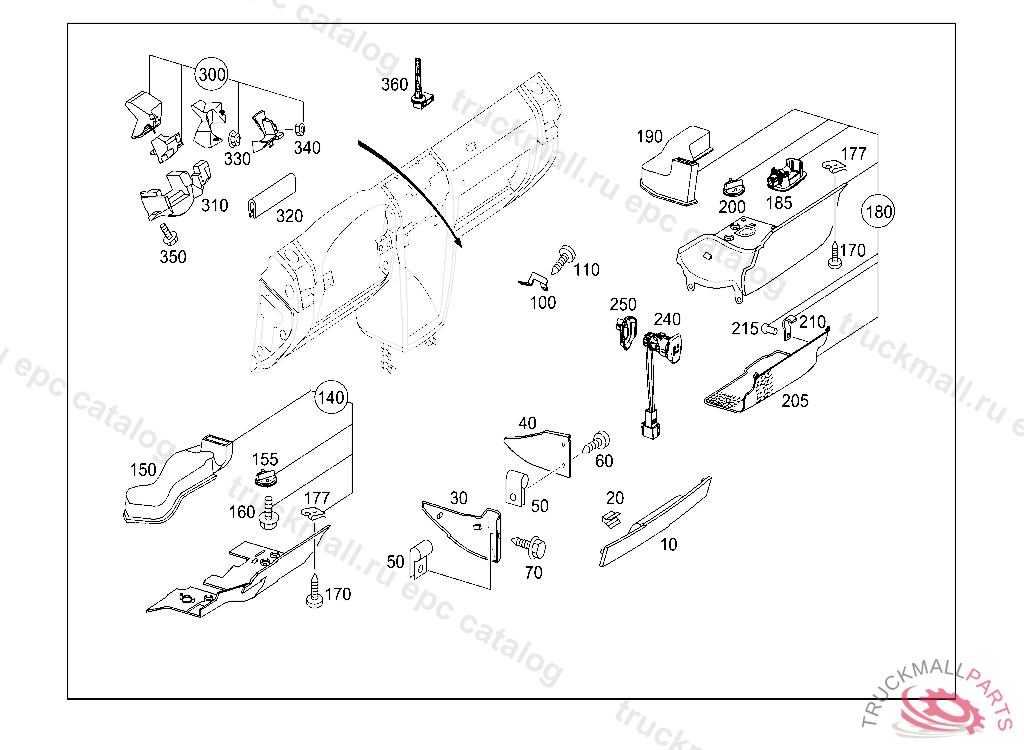

Поз.
Артикул
Описание
10
COVER BETWEEN INSTRUMENT CLUSTER AND STEERING COVER
20
CLIP ON ODDMENTS TRAY,REAR
30
COVER, FOOTWELL COVER FOR AIR CONDITIONING,RIGHT, 7088QFT463A3212 ANTHRACITE
30
COVER COVER FOR AIR CONDITIONING,RIGHT
30
COVER COVER FOR AIR CONDITIONING,RIGHT, 7088QFT463A3212 ANTHRACITE
40
COVER COVER FOR AIR CONDITIONING,LEFT, 7088QFT463A3212 ANTHRACITE
40
COVER COVER FOR AIR CONDITIONING,LEFT, 7088QFT463A3212 ANTHRACITE
40
COVER, FOOTWELL COVER FOR AIR CONDITIONING,LEFT, 7088QFT463A3212 ANTHRACITE
50
LOCK RIGHT PANELLING TO SIDE MEMBER
50
LOCK INTAKE SCOOP TO FENDER
60
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
70
TAPPING SCREW
100
BRACKET ATTACHMENT FOR CENTER CONSOLE PANEL ON FRAME
110
TAPPING SCREW STEERING COLUMN MOUNTED SWITCH PLUGCONNECTION 4.8X13
140
COVER, FOOTWELL BOTTOM LEFT, 7088QFT463A3212 ANTHRACITE
140
COVER, FOOTWELL , 7088QFT463A3212 ANTHRACITE
140
COVER, FOOTWELL BOTTOM LEFT, 7088QFT463A3212 ANTHRACITE
140
COVER INSTRUMENT PANEL, BOTTOM LEFT
140
COVER, FOOTWELL , X 20407820121031 7088QFT463A3212 ANTHRACITE
140
COVER INSTRUMENT PANEL, BOTTOM LEFT
150
AIR DUCT
150
AIR DUCT , X 20407820121031
150
AIR DUCT
155
NOZZLE LEFT AND RIGHT DEFROSTER
155
AIR NOZZLE , X 20407820121031
160
SCREW GLOVE COMPARTMENT LID WITH DAMPER
170
TAPPING SCREW. SHEET METAL SCREW BRACKET TO CAB
170
TAPPING SCREW
177
LOCK PROTECTIVE GRILLE
177
LOCK INTAKE SCOOP TO FENDER
180
COVER, FOOTWELL INSTRUMENT PANEL, BOTTOM RIGHT, 7088QFT463A3212 ANTHRACITE
180
COVER
180
COVER, FOOTWELL INSTRUMENT PANEL, BOTTOM RIGHT, 7088QFT463A3212 ANTHRACITE
180
COVER, FOOTWELL INSTRUMENT PANEL, BOTTOM RIGHT, 7088QFT463A3212 ANTHRACITE
180
COVER INSTRUMENT PANEL, BOTTOM RIGHT, X 17010020070831 7088QFT463A3212 ANTHRACITE
180
COVER, FOOTWELL INSTRUMENT PANEL, BOTTOM RIGHT, 7088QFT463A3212 ANTHRACITE
180
COVER
185
INTERIOR LAMP IN HEADLINER
190
AIR DUCT RIGHT
190
AIR DUCT RIGHT
190
AIR DUCT RIGHT
200
AIR NOZZLE , X 20407820121031
200
NOZZLE LEFT AND RIGHT DEFROSTER
205
LUGGAGE NET PASSENGER FOOTWELL FRONT, RIGHT, 9A86QFT463A3216 BLACK
205
LUGGAGE NET PASSENGER FOOTWELL FRONT, RIGHT, 9A86QFT463A3216 BLACK
210
CLAMP
215
BLIND RIVET4X16
240
SOCKET-OUTLET
250
ESCUTCHEON PLUG SOCKET, X 17010020070831 9051QFT463A3210 BLACK
300
KNEE PROTECTION PAD INSTRUMENT PANEL
310
KNEE PROTECTION PAD INSTRUMENT PANEL
320
PLASTIC SECTION CABLE HARNESS TO ROOF RAIL
330
NUT-AND-WASHER ASSEMBLY. NUT ABS MOUNTING ON BRACKET ASSEMBLY
340
NUT CLAMP TO BRACKET
350
SCREW W RND. HEXAL. HEAD MOUNTING, LOUDSPEAKER 5X35
360
TEMPERATURE SENSOR HEATER CASE
