Поз.
Артикул
Описание
10

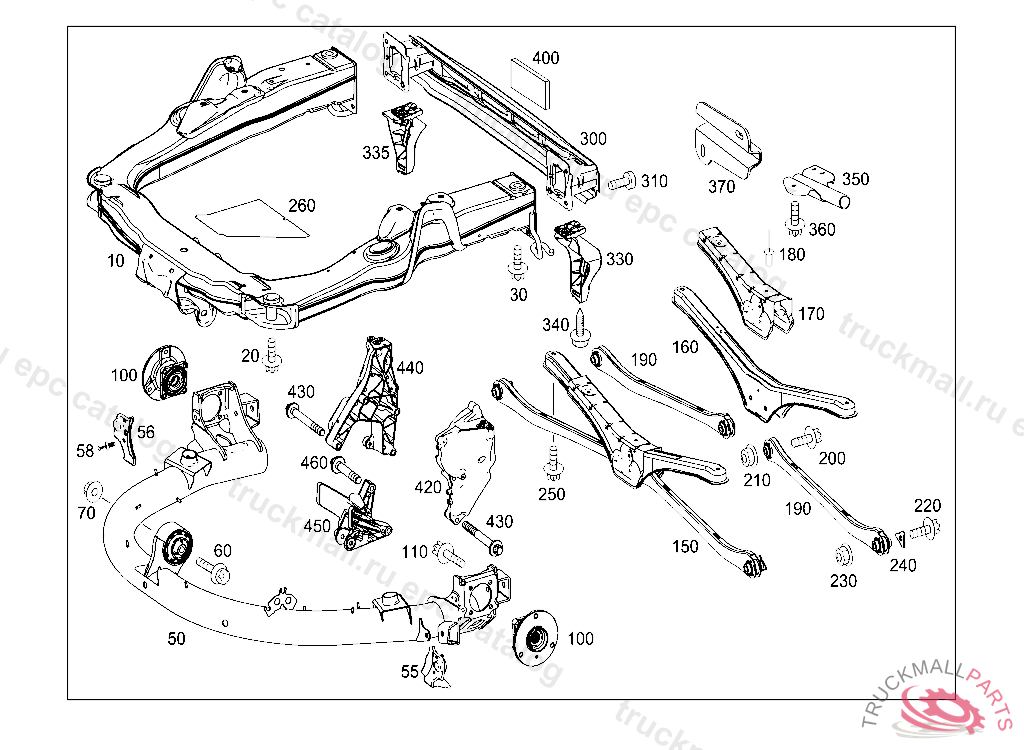

FRAME-TYPE INT. SUPPORT REAR AXLE, K 47718920110315
10
REAR AXLE CARRIER REAR SUBFRAME
20
BOLT FRONT FRAME-TYPE INTEGRAL SUPPORT
30
BOLT
50
AXLE HOUSING REAR AXLE
50
AXLE HOUSING REAR AXLE, FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 20131001, Replaced By: A4513502700
55
COVER AXLE TUBE, LEFT
56
COVER AXLE TUBE, RIGHT
58
RIVET COVERING TO SIDE MEMBER
60
HEXALOBULAR BOLT
70
NUT BATTERY/APPARATUS SUPPORT TO FRAME SIDE MEMBER
100
WHEEL HUB LEFT AND RIGHT
110
HEXAGON HEAD BOLT. SCREW BRACKET TO SIDE MEMBER M10X25
150
CROSS MEMBER
160
CROSS MEMBER REAR AXLE
170
PROTECTIVE PLATE CROSS MEMBER
180
RIVET ATTACHMENT NOISE ENCAPSULATION 4.8X10.3
190
THRUST ARM AXLE TUBE TO SUPPORT
200
HEXALOBULAR BOLT BRACKET AND DISTRIBUTOR TO REAR AXLE I M 10X55
210
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
220
HEXALOBULAR BOLT TO LEFT STEERING KNUCKLE, FRONT AXLE
230
NUT BRACKET TO SIDE MEMBER M12X1.5
240
WASHER THRUST ARM TO WHEEL BEARING TO A 220 350 31 06
250
HEXAGON HEAD BOLT CONSOLE TO REAR CROSS MEMBER AND TO FRAME SIDE MEMBERS M 10X40
260
PROTECTIVE PLATE REAR AXLE
300
REAR CROSS MEMBER ENERGY-ABSORBING UNIT
310
HEXALOBULAR BOLTM8X16
330
REAR STRUT FASTENER, REAR CENTER PART, LEFT
335
REAR STRUT FASTENER, REAR CENTER PART, RIGHT
340
TAPPING SCREW. SCREW BRACKET TO FIRE WALL 6.3X25
350
REINFORCEMENT
360
HEXALOBULAR BOLT BRACKET TO BRACKET M 10X30
370
EDGE PROTECTION ORDER ADDITIONALLY ALSO: A4519890071, K 39902120100503 GLUED VERSION
400
SHIELDING
420
SUPPORTING ARM LEFT
430
HEXAGON HEAD BOLT. SCREW CLUTCH SLAVE CYLINDER TO BELL HOUSING
440
SUPPORTING ARM RIGHT
450
TORQUE SUPPORT
460
HEXALOBULAR BOLT PENDULUM SUPPORT TO MOUNTING CONSOLE M12X1,5X60
