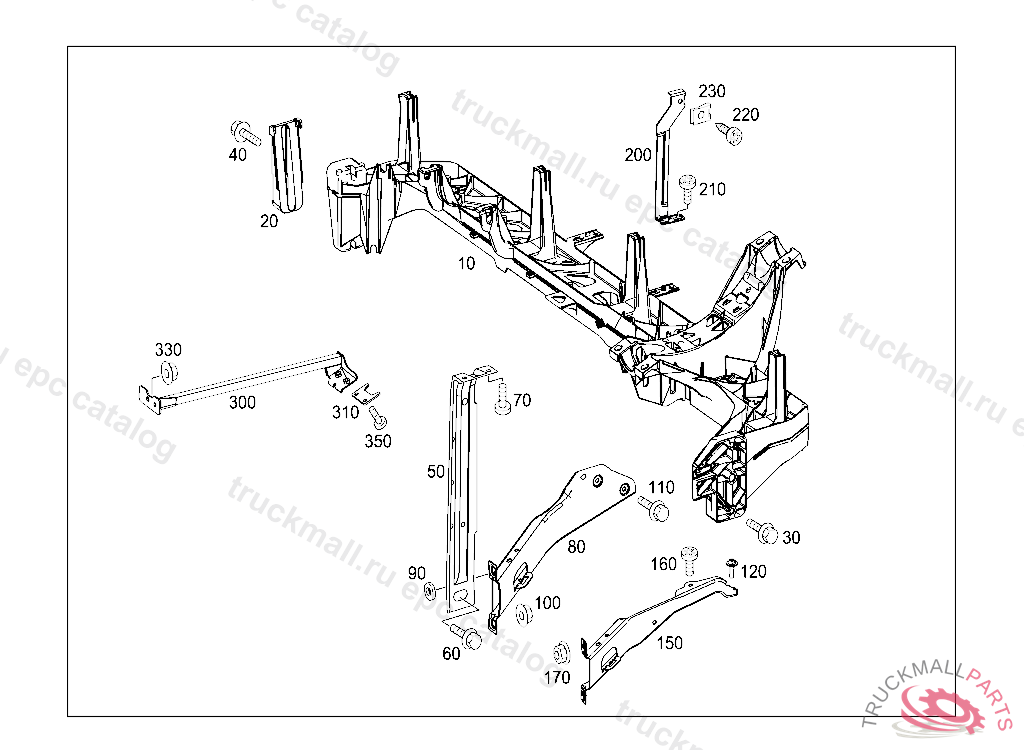

Поз.
Артикул
Описание
10
CROSS MEMBER BELOW INSTRUMENT PANEL
10
CROSS MEMBER BELOW INSTRUMENT PANEL
20
STRIKER
30
BOLT CROSSMEMBER TO A-PILLAR
40
BOLT CROSSMEMBER TO A-PILLAR
50
STAY CROSS MEMBER TO TUNNEL
60
BOLT STRUT TO TUNNEL, K 00005320060929
70
PAN-HEAD SCREW STAY TO CROSS MEMBER, K 00005320060929
80
STIFFENING R.H.D.
80
STIFFENING
90
SOUNDPROOFING LEFT STIFFENING
90
WASHER STIFFENING TO BODY
100
HEX NUT AIR INTAKE PIPE AT FIREWALL, K 00005320060929
110
BOLT STIFFENING TO CROSS MEMBER, K 00005320060929
120
BOLT STIFFENING TO CROSS MEMBER, K 00005320060929
150
STIFFENING CROSS MEMBER TO FIRE WALL
160
PAN-HEAD SCREW STAY TO CROSS MEMBER, K 00005320060929
170
HEX NUT AIR INTAKE PIPE AT FIREWALL, K 00005320060929
200
STAY INSTRUMENT PANEL
200
STAY INSTRUMENT PANEL
210
PAN-HEAD SCREW STAY TO CROSS MEMBER, K 00005320060929
220
TAPPING SCREW MOUNTING PARTS 4.8X16
220
TAPPING SCREW BRACKET TO CAB FLOOR
300
STRUT STEERING CONSOLE
300
STRUT STEERING CONSOLE
310
MOUNTING PLATE STEERING CONSOLE
330
NUT BRACKET TO BODY SHELL M6
350
SCREW BRACKET TO COVERING
