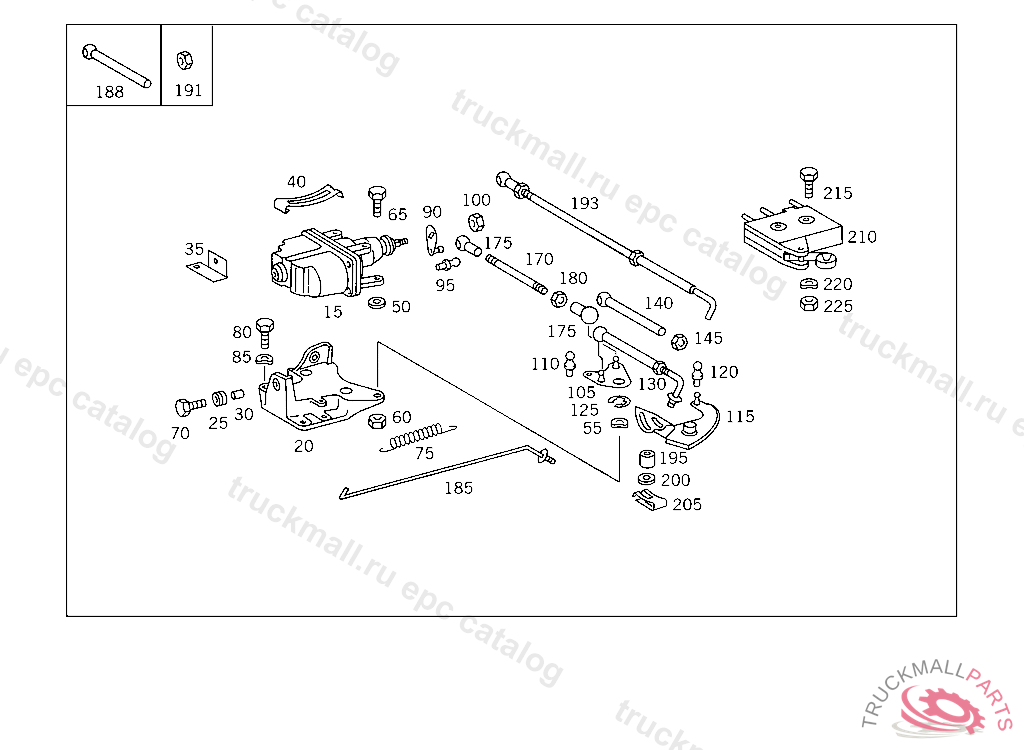

Поз.
Артикул
Описание
15
MOTOR FINAL CONTROL ELEMENT
20
BRACKET SUPPORT TO SUBSTRUCTURE
25
GROMMET FINAL CONTROL ELEMENT TO BRACKET
30
SPACER ACTUATOR TO BRACKET, Replaced By: A0009923760
35
CLAMP SUPPORT TO SUBSTRUCTURE
40
CLAMP SUPPORT TO SUBSTRUCTURE
50
WASHER ACTUATOR TO BRACKET
55
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
55
SPRING WASHER , Replaced By: N000137008212
60
NUT SUPPORT TO SUBSTRUCTURE
65
SCREW PUMP TO BRACKET
65
SCREW OIL LINE TO CRANKCASE
65
SCREW , Replaced By: N304017006016
70
SCREW 3/2-WAY VALVE TO BRACKET
75
SPRING (RELEASE SPRING)
80
SCREW PIPE CLAMP
80
SCREW , Replaced By: N304017008021
85
SPRING WASHER , Replaced By: N000137008212
85
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
90
LEVER (LINK)
95
BALL PIVOT
100
NUT
105
LEVER (REVERSING LEVER)
110
BALL PIVOT
115
LEVER (DOUBLE LEVER)
120
BALL PIVOT
125
LOCK PLATE RELEASE LEVER TO SHAFT
130
ROD (LINK)
140
BALL SOCKET
140
END PIECE , Replaced By: A0009918822
145
NUT TACHOGRAPH TO BRACKET
170
PULL ROD CONTROL, FROM IDENT NO. 556500 ALSO INSTALLED ON: 543411,543418,551588,551771,552021,552392,552551,552654,552687,552840,552846,553000,553005,553105, 553112,553264,553332,554081,554103,554213,554266,554270,554993,555186,555885,555992,556138,556169, 556181,556184,556187,556189,556194-556197,556215.
175
BALL SOCKETTO 102 070 09 75, Replaced By: A0009930461
175
BALL SOCKET , Replaced By: A0009918922
180
NUT TACHOGRAPH TO BRACKET
185
ROD (LINK)
185
ROD (LINK)
188
BALL SOCKET
191
NUT TACHOGRAPH TO BRACKET
193
ROD FROM CONTROL LEVER TO REVERSING LEVER
193
ROD , Replaced By: A6013004815
195
ROLLER ROD TO CONTROL LEVER
200
WASHER LINK TO LEVER
200
WASHER , Replaced By: N000433010510
205
LOCK AT HANDLE
210
SWITCH ENGINE SPEED STABILIZING
215
SCREW AT INSTRUMENT PANEL M 4X16,036897
215
SCREW FUSE M 4X20
220
SPRING WASHER ALTERNATOR CONNECTION D+
225
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
999
BALL SOCKET ROD TO LEVER,284049
999
PIN SUPPORT TO SUBSTRUCTURE
