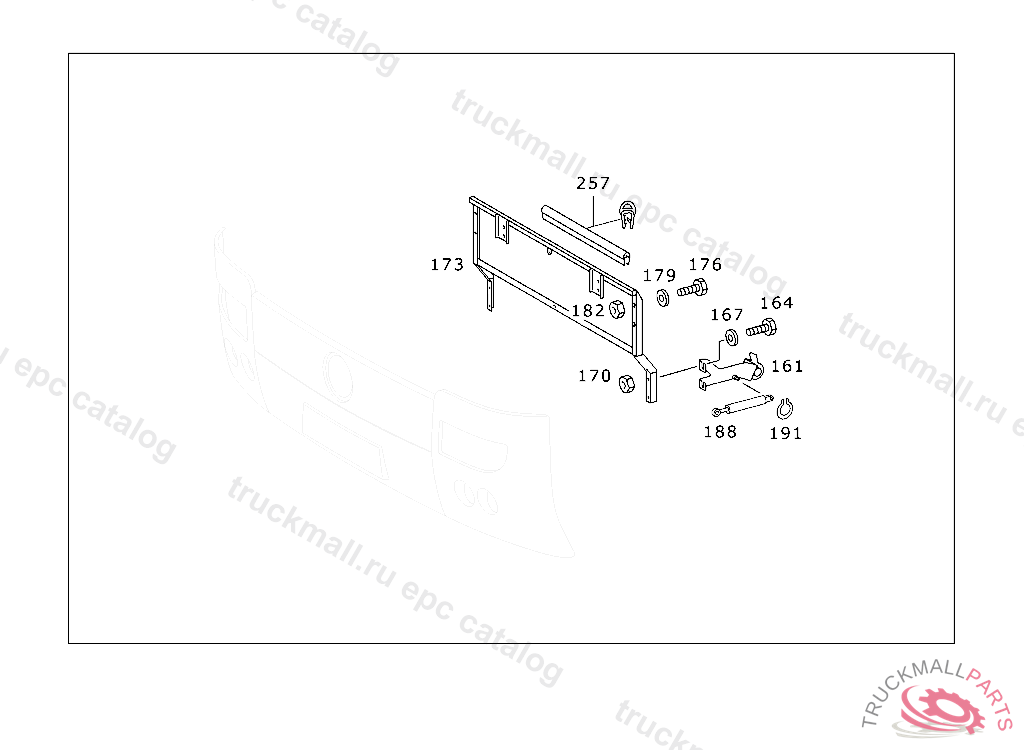

O350 TOURISMO E3 O 403-RHD EURO3 - 613.358 - 88 ATTACHMENT PARTS
Поз.
Артикул
Описание
161
HINGE RIGHT
161
HINGE LEFT
164
SCREW
167
WASHER EXHAUST MUFFLER TO STRAP
170
NUT GRIP RAIL MOUNTING
173
SUPPORT CENTRAL COVERING
173
FRAME , Replaced By: A6138801503
176
SCREWM 8X35, RAMMSCHUTZ AN RAHMEN
176
SCREW. HEXAGON HEAD BOLT ON AIR INTAKE PIPE BRACKET M 8X16
179
WASHER EXHAUST MUFFLER TO STRAP
182
NUT GRIP RAIL MOUNTING
188
MUFFLER
191
LOCK RING
257
RUBBER SEAL , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
