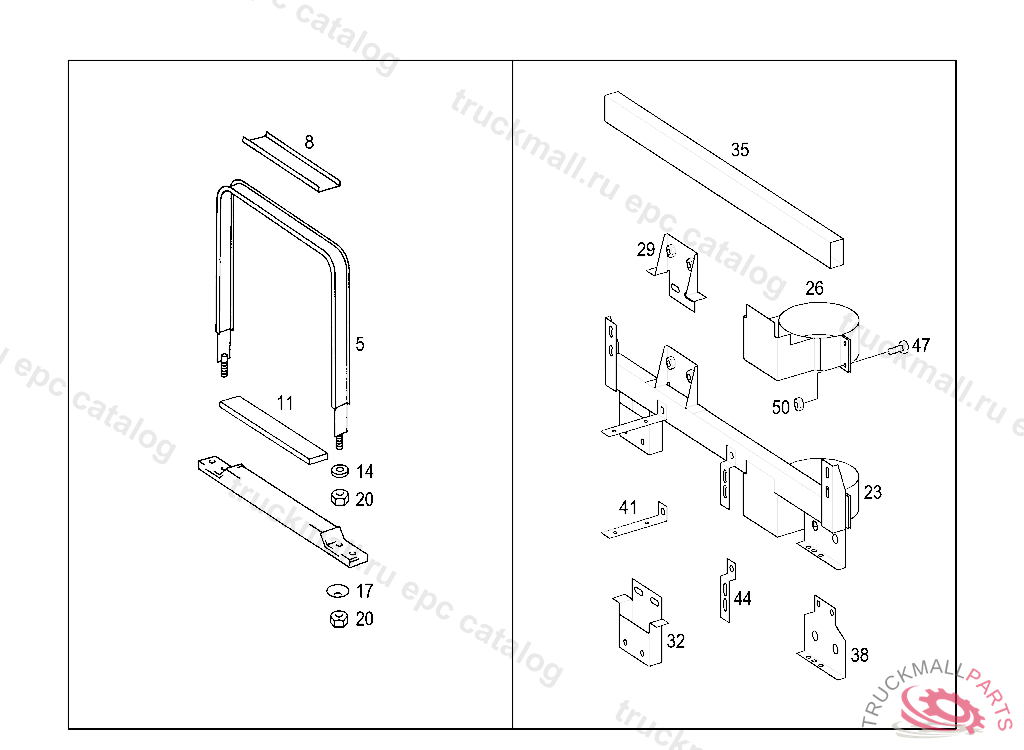

O350 TOURISMO E3 O 403-RHD EURO3 - 613.358 - 89 VEHICLE ACCESSORIES
Поз.
Артикул
Описание
5
STRAP
8
PAD , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
11
PAD
14
WASHER GROUND CABLE
14
WASHER RADIATOR TO RUBBER MOUNTING
17
CONICAL SPRING WASHER PIPE SOCKET TO OIL COOLER
20
NUT BATTERY CABLE
23
SIDE MEMBER
26
BRACKET
29
BRACKET
32
BRACKET
35
TUBE40X30X2MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
38
BRACKET
41
BRACKET
44
BRACKET
47
SCREW. HEXAGON HEAD BOLT BUZZER TO WINDOW LEVEL GIRDER M6X25
50
NUT CLAMP TO BRACKET
50
NUT , Replaced By: N913023006001
