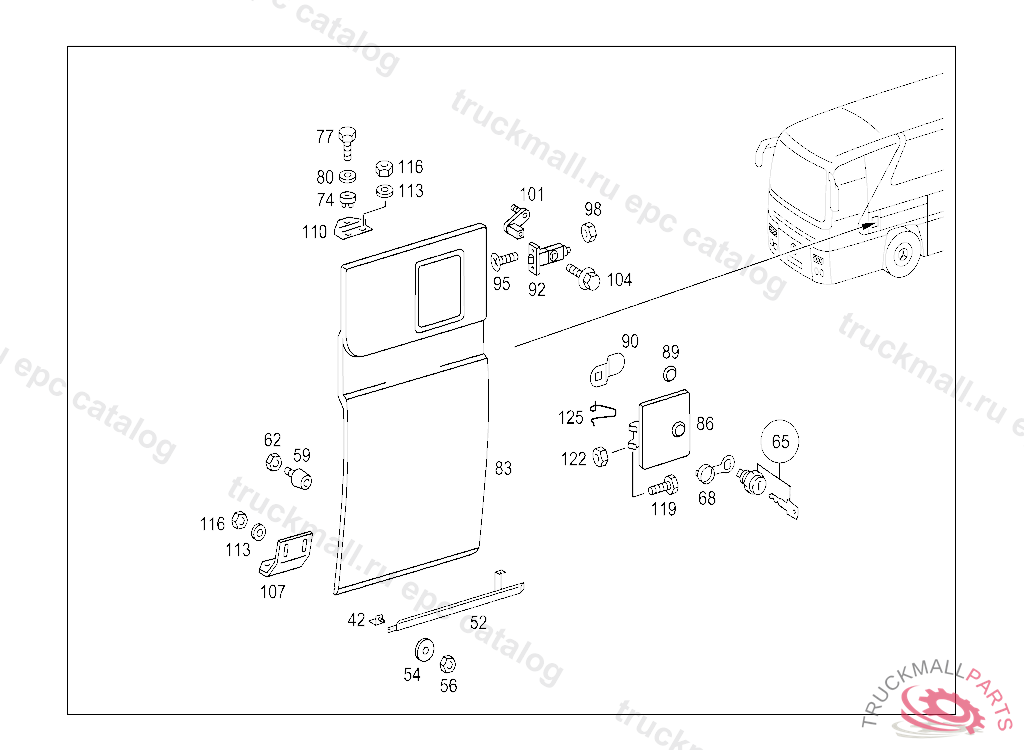

O350 TOURISMO E3 O 403-RHD EURO3 - 613.358 - 75 OUTSIDE FLAPS
Поз.
Артикул
Описание
65
TUMBLER
68
FASTENER
74
SLEEVE FLAP TO BODY
77
COMBINATION BOLTM 8 X 20
80
WASHER , Replaced By: N009021008213
83
FLAP LEFT FUEL TANK RHD
83
FLAP LEFT FUEL TANK RHD
86
FLAP TANK FLAP
86
FLAP TANK FLAP
89
SPACER TANK FLAP
90
LATCH TANK FLAP
92
LOCK TANK FLAP
95
SCREW LOCK TO FLAP
95
SCREW GUIDE TO STEERING COLUMN END,4 430730
98
NUT VALVE TO BRACKET
101
CRANK PULL TO LOCK
104
SCREW BRACKET TO BODY M 4 X 10,230417, FACELIFT
107
BRACKET AT FLAP
110
BRACKET AT FLAP
113
WASHER , Replaced By: N009021006208
113
WASHER COVERING TO CAB
116
NUT
119
SCREW BRACKET MOUNTING
122
NUT VALVE TO BRACKET
125
SPRING TANK FLAP
