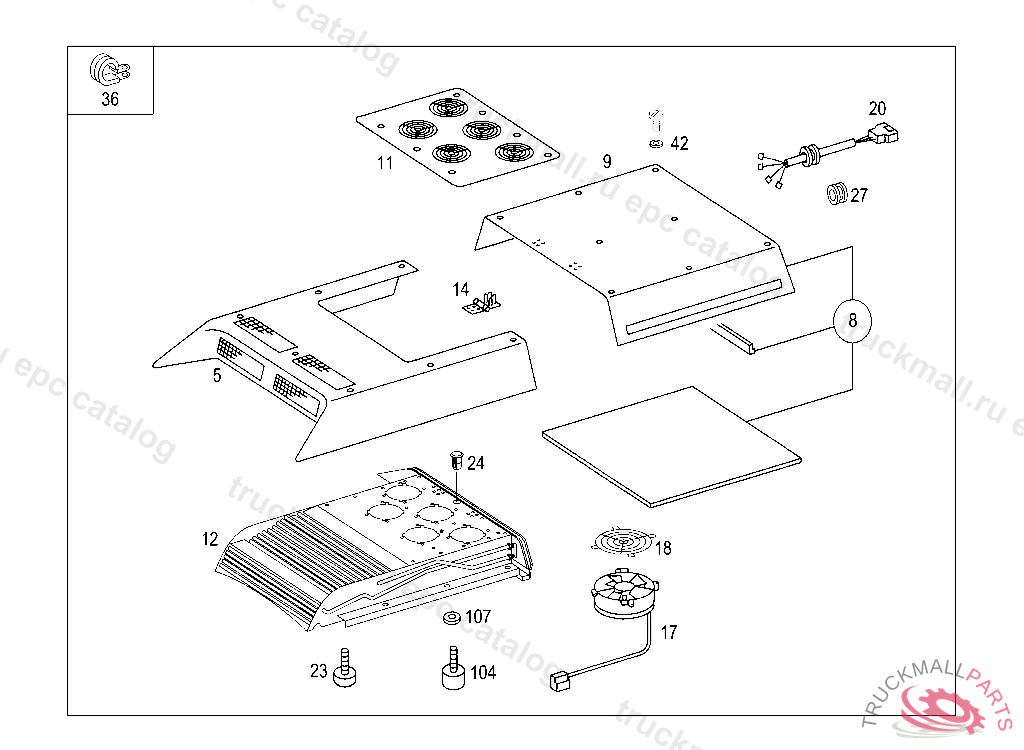

O350 TOURISMO E3 O 403-SHD EURO3 - 613.388 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
5
COVER
5
FAN SHROUD , Replaced By: A0018302013
8
FAN SHROUD
9
COVERING
11
COVERING
12
CONDENSER
14
HINGE
14
HINGE RIGHT
14
HINGE LEFT
17
BLOWER
18
GRILLE
20
ELECTRIC CABLE
23
BUFFER
24
PLATE
27
CABLE GROMMET3,5 - 6,2 MM
27
CABLE GROMMET15 - 18 X 1,5 MM
27
CABLE GROMMET10 - 35 X 2,5 MM
36
CLAMP22 / 15 GU
36
CLAMP15 / 15 GU
36
CLAMP25 / 15 GU
36
CLAMP31 / 15 GU
42
RUBBER UNDERLAY
104
BUFFER AIR CONDITIONER TO BODY
107
WASHER AIR CONDITIONER TO BODY
999
HOSE
999
STAY
999
PIPE SOCKET
999
FUSE
999
LEVER
999
HOSE
999
VALVE SOLENOID VALVE
999
SEAL
