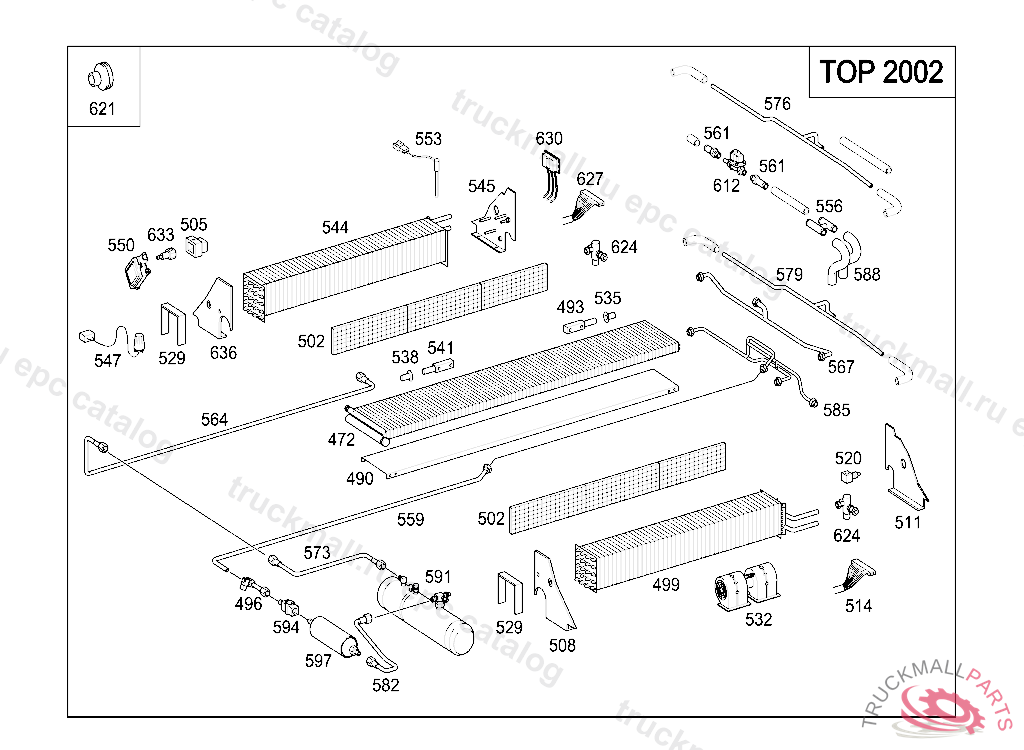

O350 TOURISMO E3 O 403-SHD EURO3 - 613.388 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
472
CONDENSER
490
FLAP LEFT
490
FLAP
493
PIN LEFT AND RIGHT
496
VALVE (SOLENOID VALVE),239634
496
VALVE (SOLENOID VALVE),239633
499
EVAPORATOR LEFT
502
FILTER
505
CONNECTOR
508
ANGLE LEFT
511
BRACKET LEFT
514
CABLE HARNESS LEFT
520
THERMOSTAT
529
BRACKET
532
BLOWER
535
MOUNTING LEFT AND RIGHT
538
BUSHING LEFT AND RIGHT
541
SHAFT LEFT AND RIGHT
544
EVAPORATOR RIGHT
545
BRACKET RIGHT
547
SENDER UNIT
547
TEMPERATURE SENDER UNIT RIGHT
550
ELECTRIC MOTOR SERVOMOTOR
553
TEMPERATURE SENSOR ICE SENSOR
556
PIPE LINE RETURN
559
PIPE LINE FEED
561
PIPE LINE FEED
564
HOSE DELIVERY LINE
567
HOSE SUCTION LINE
573
HOSE
576
PIPE LINE
576
PIPE LINE , Replaced By: A0068304115
579
PIPE LINE , Replaced By: A0068304215
579
PIPE LINE
582
HOSE
585
HOSE
588
HOSEDN 22
591
TANK
594
SIGHT GLASSHANSA
597
DEHYDRATOR
612
VALVE
621
CAP DIA., 58MM
624
VALVE EXPANSION VALVE
627
CABLE HARNESS RIGHT
630
CONTROL
633
CONNECTOR
636
ANGLE RIGHT
999
HOSE
999
STAY
999
PIPE SOCKET
999
FUSE
999
LEVER
999
HOSE
999
VALVE SOLENOID VALVE
999
SEAL
