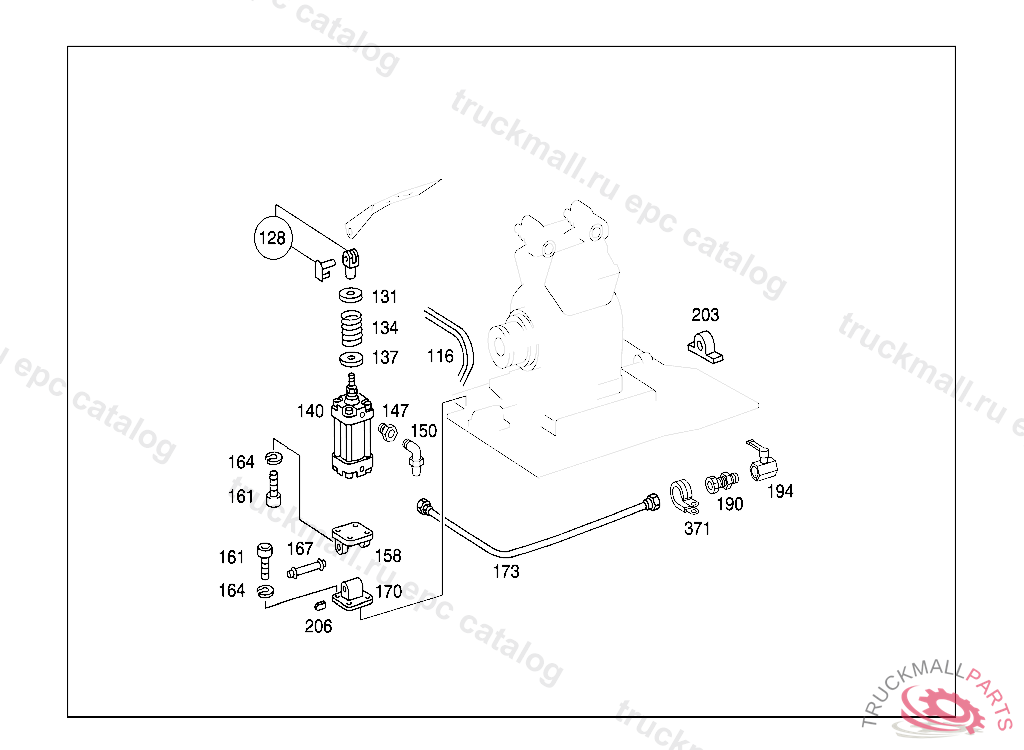

O350 TOURISMO E3 O 403-SHD EURO3 - 613.388 - 55 SPECIAL INSTALLATIONS
Поз.
Артикул
Описание
116
V-BELT REFRIGERANT COMPRESSOR
128
FORK
131
WASHER
134
SPRING
137
WASHER
140
CYLINDER
147
ADAPTERTO A 629 830 25 60, A 000 130 95 15
150
PIPE SOCKET
158
CLAMP
161
SCREW
164
PAD
167
PIN
170
MOUNTING
173
HOSE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
190
PIPE SOCKET
194
PLUG (SHUT-OFF VALVE),232286
203
MOUNTING
206
KEY
371
CLAMP15 / 20 RSGU
999
BEARING DIA., 31X33,8MM
999
INTERMEDIATE PIECE PARTS KIT, TO BE ADAPTED DURING ASSEMBLY
999
GUIDE SIGNDEA SE 55
999
GUIDE SIGNR134A
999
SEAL42X36X1,5MM
999
GLAND , Replaced By: A0019901667
