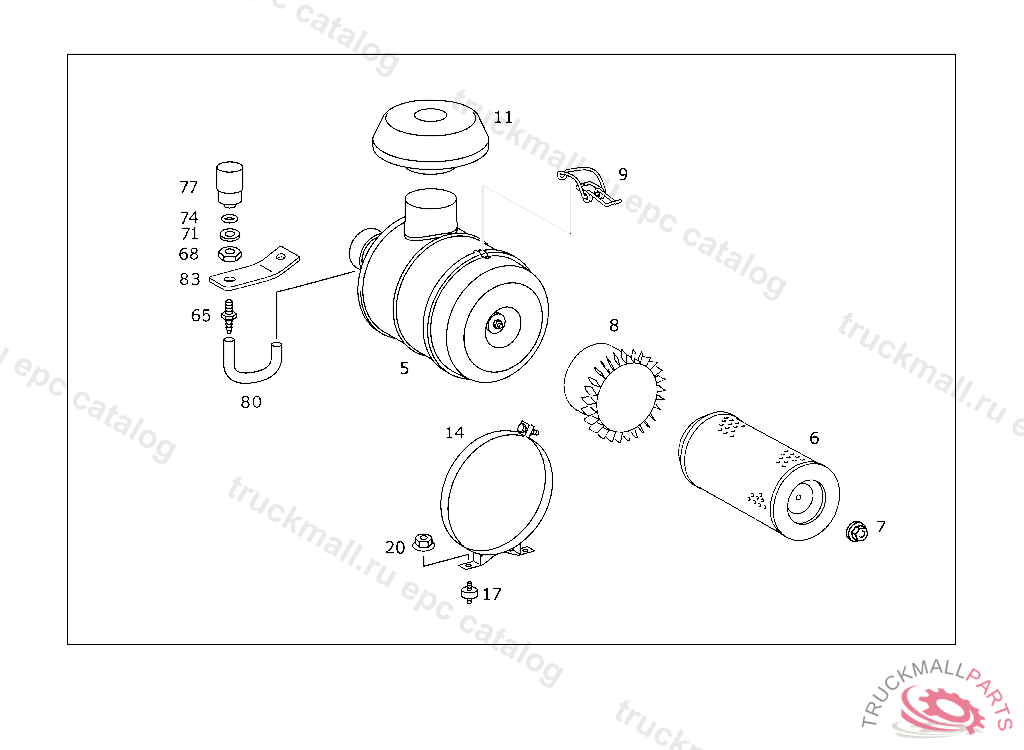

O350 TOURISMO E3 O 403-SHD EURO3 - 613.388 - 52 SHEET METAL / AIR INTAKE
Поз.
Артикул
Описание
5
AIR CLEANERMANN + HUMMEL
6
FILTER ELEMENT
7
NUT
8
SEPARATOR
9
FASTENER
11
COVER AIR INTAKE PIPE
14
BRACKET
17
RUBBER MOUNTINGM10X50X20
20
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
20
NUT EXHAUST PIPE AND PIPE CLAMP TO BRACKET
65
CONNECTOR
68
NUT SHIFT LEVER HANDLE TO SHIFT LEVER
71
THRUST RING14X10X2.6MM
74
O-RING
77
MAINTENANCE INDICATOR ,950198
80
PLASTIC PIPE , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
83
BRACKET AIR CLEANER TO BRACKET
