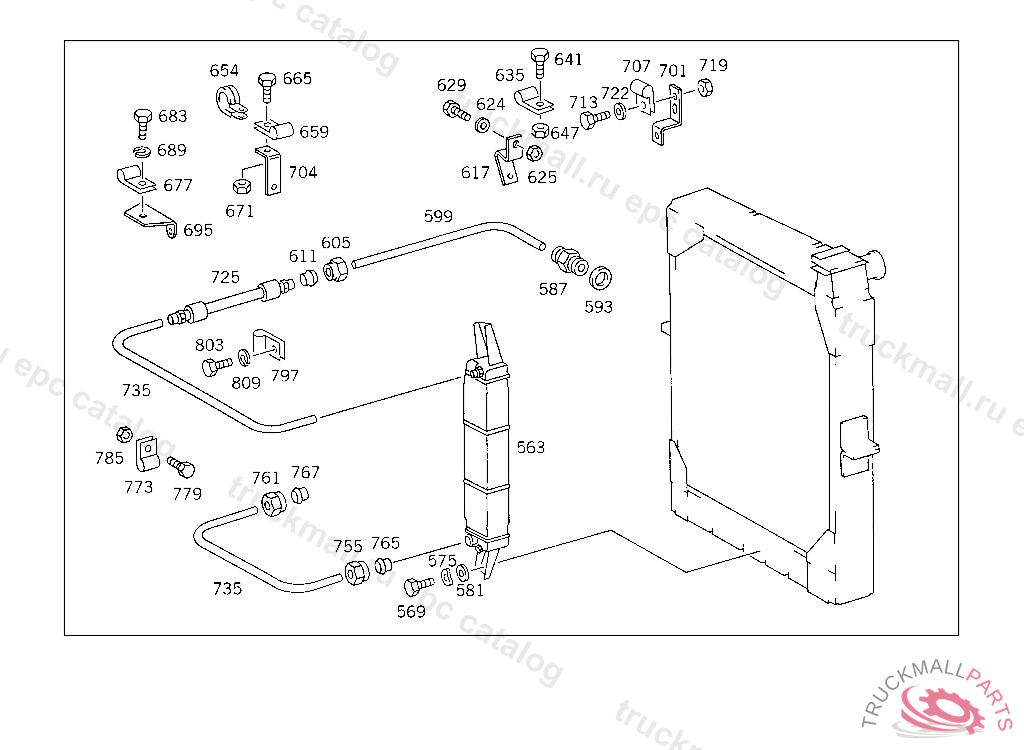

Поз.
Артикул
Описание
563
RADIATOR OIL COOLER
569
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
569
SCREW , Replaced By: N304017008016
575
SPRING WASHER SHIFTING CYLINDER TO YOKE
581
WASHER EXHAUST MUFFLER TO STRAP
581
WASHER , Replaced By: N000125008443
587
SCREW-IN FITTING LINE CONNECTION TO TRANSMISSION
593
SEAL RING FUEL LINE TO FEED PUMP
599
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
605
NUT. UNION NUT LINE CONNECTION
611
CUTTING RING. GLAND LINE CONNECTION
617
BRACKET LINE TO TRANSMISSION
624
WASHER RADIATOR TO RUBBER MOUNTING
624
WASHER , Replaced By: N000125010532
625
NUT , Replaced By: N910113010000
625
NUT STRAP TO BRACKET
629
SCREW HOLLOW RUBBER SPRING TO CAB,5 956657
635
CLAMP LINE MOUNTING
641
SCREW COVER PLATE TO BRACKET
647
NUT PUMP TO BRACKET
647
NUT , Replaced By: N913004006001
654
CLAMP , Replaced By: N916016010211
654
CLAMP , Replaced By: N000000001045
654
CLAMP CABLE HARNESS MOUNTING
659
CLAMP LINE MOUNTING
665
SCREW COVER PLATE TO BRACKET
671
NUT PUMP TO BRACKET
671
NUT , Replaced By: N913004006001
677
CLAMP LINE MOUNTING
683
SCREW COVER PLATE TO COVER PLATE M 6 X 12
683
SCREW , Replaced By: N304017006018
689
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
695
BRACKET DELIVERY AND RETURN LINES,5 529813
701
BRACKET OIL LINE MOUNTING
704
BRACKET OIL LINES TO ENGINE
707
CLAMP LINE MOUNTING
713
SCREW COVER PLATE TO BRACKET
719
NUT PUMP TO BRACKET
719
NUT , Replaced By: N913004006001
722
WASHER , Replaced By: N000125010532
722
WASHER RADIATOR TO RUBBER MOUNTING
725
HOSE FROM OIL COOLER TO TRANSMISSION
725
HOSE FROM OIL COOLER TO TRANSMISSION
735
OIL PIPE. LINE RETURN LINE TO TRANSMISSION
755
UNION NUT OIL LINE TO RADIATOR,5 106401
761
NUT. UNION NUT LINE CONNECTION
765
SEAL CONE LINE MOUNTING
767
CUTTING RING. GLAND LINE CONNECTION
773
CLAMP LINE MOUNTING
779
SCREW COVER PLATE TO BRACKET
785
NUT PUMP TO BRACKET
785
NUT , Replaced By: N913004006001
797
CLAMP LINE MOUNTING
803
SCREW COVER PLATE TO BRACKET
809
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
999
CLAMP FEED LINE TO THERMOSTAT
999
LINE (HEATING PIPE) FROM ENGINE TO HEATING PIPE AT RADIATOR,5 301949
999
BREATHER PIPE , Replaced By: A6205010725
999
HOSE HEATING PIPE TO RADIATOR
999
BRACKET HEATING PIPE,5 301949
999
LINE HEATING AND BREATHING
999
HOSE , Replaced By: A6205012882
999
FLANGE , Replaced By: A6205060261
999
FLANGE
999
HOSE FROM HEATING PIPE AT ENGINE TO HEATING PIPE AT RADIATOR
999
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
999
SPRING WASHER , Replaced By: N000137008204
999
SPRING WASHER , Replaced By: N000137008212
999
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
999
SCREW , Replaced By: N000933008337
999
SCREW , Replaced By: N304017008018
999
SCREW , Replaced By: A0099900101
999
SCREW SUPPORT TO FENDER
999
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
999
NUT , Replaced By: N913004008001
999
CLAMP , Replaced By: N000000000667
999
GASKET HEATING PIPE TO ENGINE
