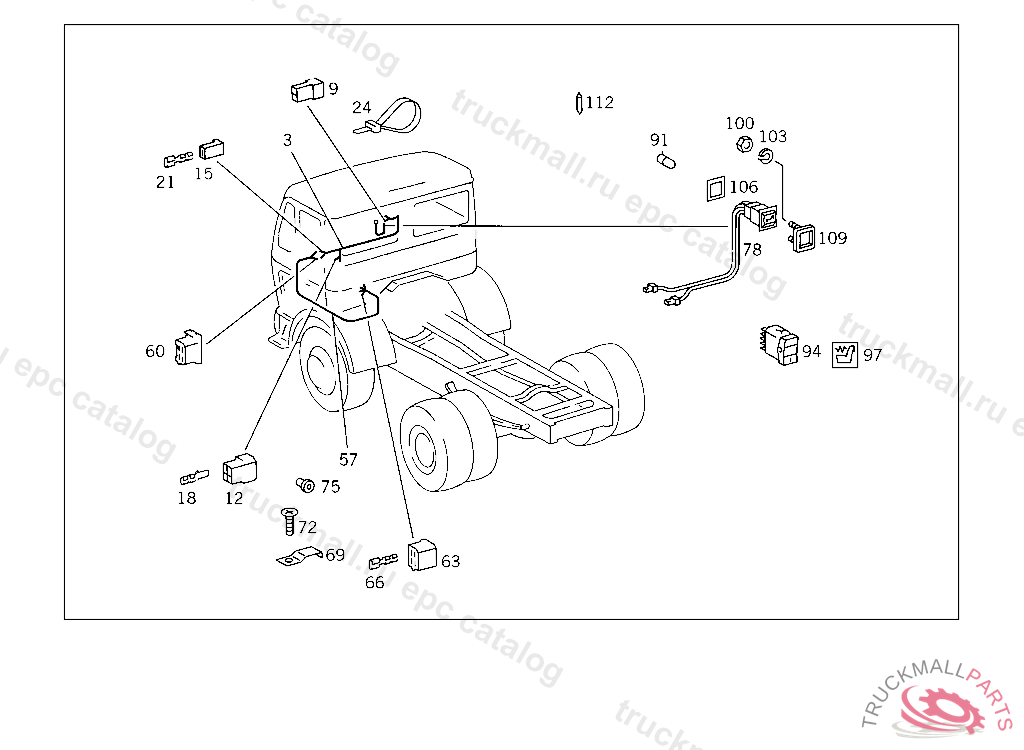

Поз.
Артикул
Описание
3
ELECTRIC CABLE , Replaced By: A3835400937
3
ELECTRIC CABLE FROM FUSE BOX TO SEAT HEATER SWITCH,4 814296
9
PLUG HOUSING AIR CONDITIONER, FOR CAB-PLUG-CONNECTION-TO-AIR-CONDITIONER CABLE HARNESS
12
PLUG HOUSING 4-POLE
15
PIN BUSHING HOUSING UNIPOLAR
18
PLUG FROM CHASSIS/CAB CONNECTION POINT TO TACHOGRAPH 2.5 MM2
21
PIN BUSHING WITH DETENT AND WITH CATCH FOR HOUSING 2,5 MM2
24
LOOM TIE LINE MOUNTING 280 MM
57
ELECTRIC CABLE FROM PLUG CONNECTION AT WINDOW SILL TO PLUG CONNECTION AT DRIVER'S SEAT
60
PIN BUSHING HOUSING 4-POLE
63
PIN BUSHING HOUSING 4-POLE
66
PIN BUSHING , Replaced By: A0075458226
66
SOCKET. PIN BUSHING LESS DETENT,BUT WITH CATCH FOR HOUSING 2,5 MM2
69
CLAMP ELECTRIC CABLE TO CAB FLOOR
72
SHEET METAL SCREW MODULE TO HOUSING
72
SHEET METAL SCREW , Replaced By: N000000000453
75
CABLE CONNECTOR1.5-6.6 MM2
75
CABLE CONNECTOR6-10 MM2
78
SWITCH SEAT HEATING
78
SWITCH SEAT HEATING, UP TO IDENT NO.: 5 220080+ FROM IDENT-NO.: 6 900001-6 900052
91
BULB , UP TO IDENT NO.: 5 220080+ FROM IDENT-NO.: 6 900001-6 900052
94
SWITCH , Replaced By: A0025457007
94
SWITCH SEAT HEATING
97
LENS SEAT HEATING
100
NUT BRACKET MOUNTING
100
NUT , Replaced By: N304032003001
103
LOCK WASHER PLUG SOCKET TO BRACKET,5 906887
106
SHIM SWITCH TO INSTRUMENT PANEL, UP TO IDENT NO.: 5 220080+ FROM IDENT-NO.: 6 900001-6 900052
109
COVERING SWITCH TO INSTRUMENT PANEL, UP TO IDENT NO.: 5 220080+ FROM IDENT-NO.: 6 900001-6 900052
112
FUSE , Replaced By: N072581008101
112
FUSEA8
999
PLUG , Replaced By: A0075455928
999
SWITCH , Replaced By: A0008201610
