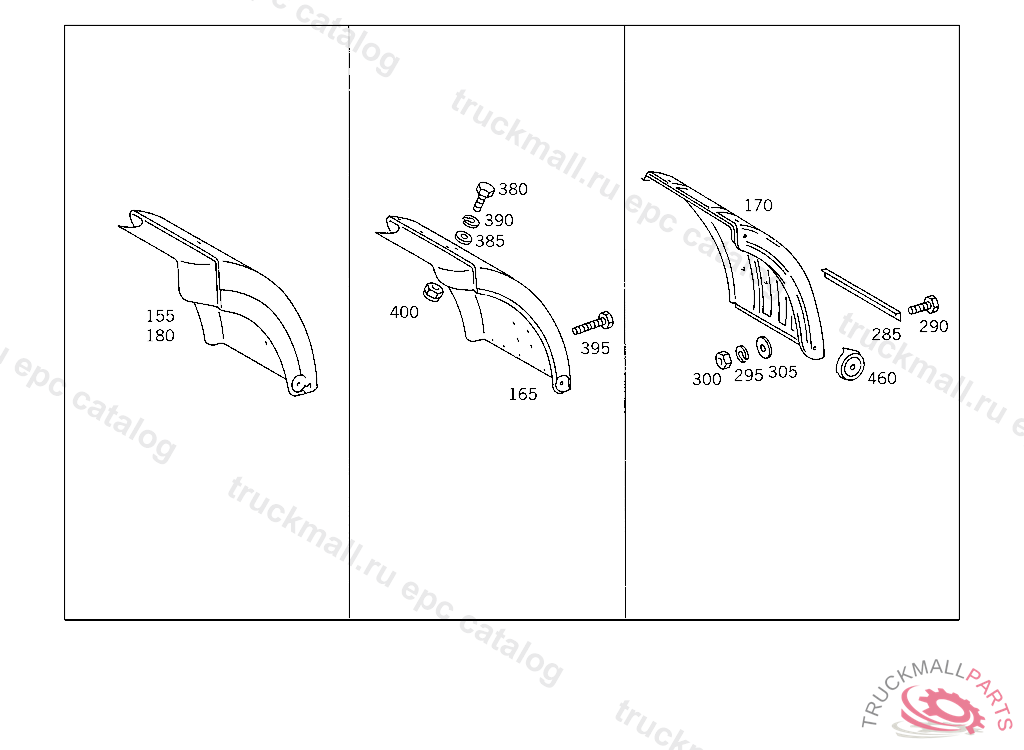

Поз.
Артикул
Описание
155
FRONT FENDER REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
165
FRONT FENDER REAR LEFT
165
FRONT FENDER REAR RIGHT
170
FRONT FENDER REAR LEFT, TO BE ADAPTED DURING ASSEMBLY
170
FRONT FENDER REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
170
FRONT FENDER , TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3818800206
180
FRONT FENDER REAR RIGHT, TO BE ADAPTED DURING ASSEMBLY
285
RAIL , Replaced By: A3818810206
285
RAIL REAR FENDER
290
SCREW LONGITUDINAL DIFFERENTIAL LOCK VALVE TO BRACKET,5 963747
295
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
300
NUT BALL PIVOT TO LEVER
305
WASHER , Replaced By: N009021006208
305
WASHER COMPRESSED AIR LINE TO BRACKET
380
SCREW , Replaced By: N304017008027
380
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
385
WASHER , Replaced By: A6312670276
385
WASHER FENDER BRACKET TO FENDER, Replaced By: A0049902582
390
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
395
SCREW BRACKET TO CROSS CONNECTION STRUT
395
SCREW , Replaced By: N304017008034
400
NUT , Replaced By: N913004008001
400
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
460
PAD REFLECTOR
999
FRONT FENDER , Replaced By: A3818818901
999
FRONT FENDER
999
FRONT FENDER REAR RIGHT
999
FRONT FENDER , TO BE ADAPTED DURING ASSEMBLY
999
FRONT FENDER , TO BE ADAPTED DURING ASSEMBLY
