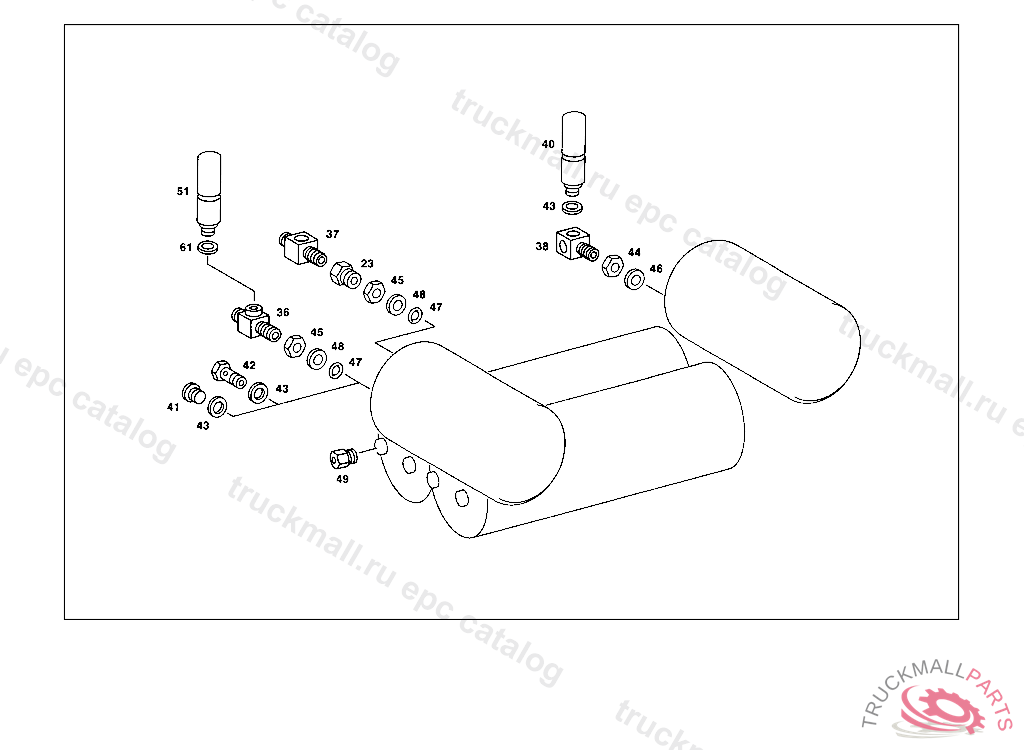

Поз.
Артикул
Описание
23
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
36
T-FITTING AIR RESERVOIR,CONNECTION "13",5 255904
37
CROSS FITTING AIR RESERVOIR,CONNECTION "13",5 255904
38
CROSS FITTING AIR RESERVOIR,CONNECTION: "32"
40
VALVE PRESSURE LIMIT M 22,K 025180
40
VALVE ,K 025179, Replaced By: A0044297244
41
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
42
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
43
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
44
NUT CHECK VALVE TO AIR RESERVOIR
45
NUT AIR RESERVOIR,CONNECTION "14"
46
SEAL RING VALVE TO VALVE,K 025179
47
O-RING CHECK VALVE TO AIR RESERVOIR
48
THRUST RING CHECK VALVE TO AIR RESERVOIR
48
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
49
FITTING OVERFLOW VALVE,CONNECTION: "10",K 025179
51
VALVE , EXHAUST STOCK OF OLD PART NUMBERS FIRST UP TO IDENT NO. 4 903131, Replaced By: A0034295044
51
VALVE ,K 025179, Replaced By: A0044297044
51
VALVE PRESSURE LIMIT,K 025180
61
SEAL RING VALVE TO VALVE,K 025179
999
COVERING
999
REPAIR KITTO 002 429 79 44
999
FITTING BRAKE LINE COUPLING,CONNECTION: "11,12"
