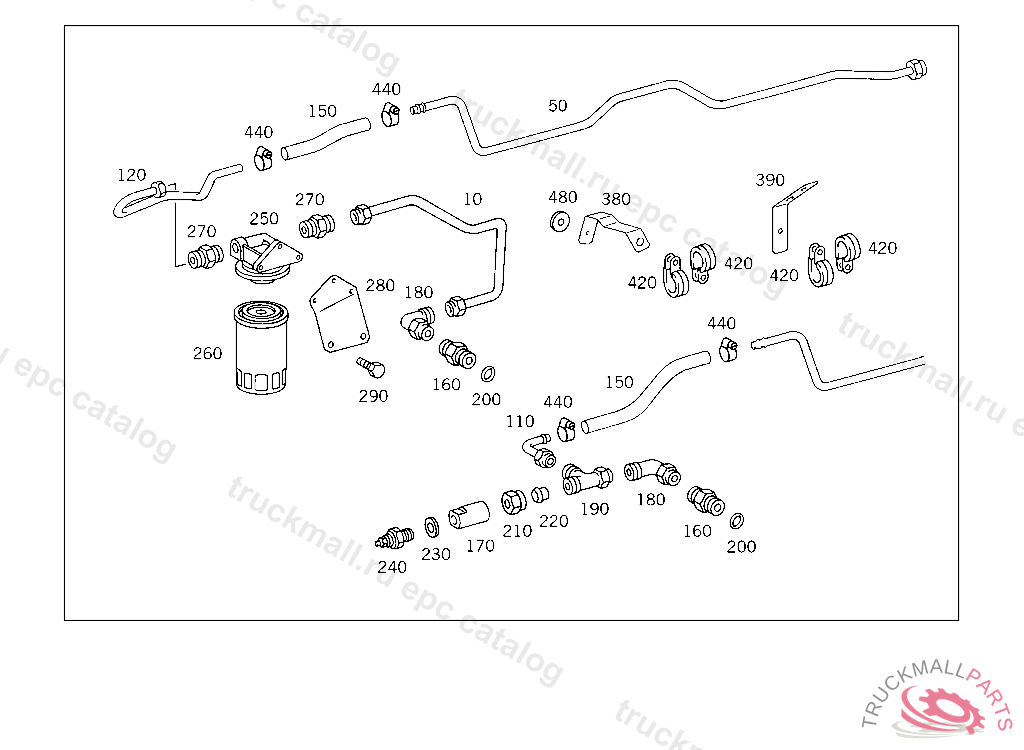

Поз.
Артикул
Описание
10
LINE ,5 911565
50
LINE RETURN, FROM THERMOSTAT TO FRAME
50
LINE FEED, FROM FRAME TO TEMPERATURE REGULATOR,5 412082
110
LINE FEED LINE LEADING TO OIL COOLER TO TRANSMISSION,5 911565
120
LINE RETURN, FROM FRAME TO OIL FILTER,5 911565
150
HOSE FROM OIL COOLER TO TRANSMISSION
160
FITTING OIL LINES TO TRANSMISSION
170
FITTING OIL LINES TO TRANSMISSION
180
FITTING SUCTION LINE TO OIL PUMP
190
FITTING BETWEEN THE LINES
200
SEAL RING OIL LINES TO TRANSMISSION
210
NUT LINE CONNECTION
210
UNION NUT LINE CONNECTION, Replaced By: N000000006243
220
GLAND , Replaced By: A0019901267
220
SEAL CONE LINE CONNECTION
230
SEALING RING. SEAL RING ENGINE BREATHING
240
SENDER UNIT OIL TEMPERATURE
250
FILTER OIL FILTER
250
COVER , Replaced By: A3762700098
260
GEAR OIL FILTER (OIL FILTER)
260
FILTER (OIL FILTER), Replaced By: A0002773295
260
FILTER , Replaced By: A3762700498
270
FITTING OIL FILTER
280
BRACKET OIL FILTER
290
SCREW BRACKET TO TRANSMISSION,5 360280
380
BRACKET FEED AND RETURN LINES TO FRAME,FRONT
390
BRACKET OIL LINE TO CROSS MEMBER
420
CLAMP DELIVERY AND SUCTION LINES TO FRAME
440
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
480
WASHER BRACKET TO FRAME
999
BRACKET OIL LINES TO FRAME SIDE MEMBERS
999
PIPE OIL LINE CONNECTION
