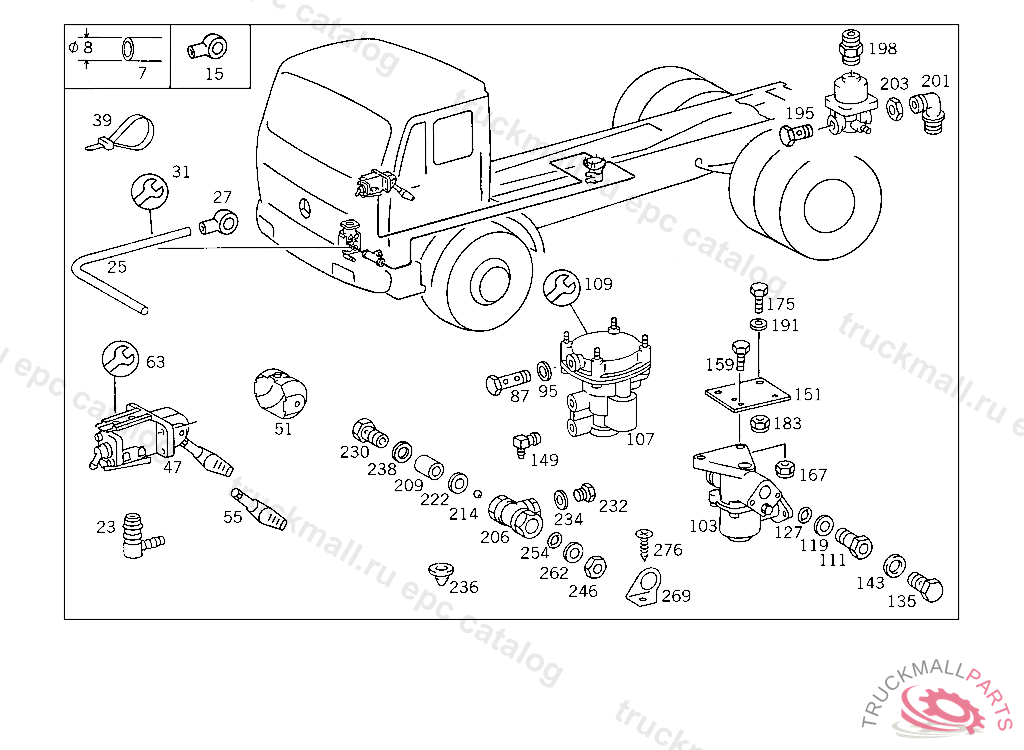

Поз.
Артикул
Описание
7
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
15
BANJO UNION HEATING CONNECTION,K 169122
15
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
23
COUPLING FROM CHECK VALVE TO PARKING BRAKE VALVE
25
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
25
HOSE , Replaced By: A0009872827
27
BANJO UNION , Replaced By: N915052009009
27
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
31
FITTING (PARTS KIT),LINE RUPTURE
31
FITTING , Replaced By: A0029905971
39
LOOM TIE LINE MOUNTING 280 MM
47
VALVE PARKING BRAKE KNORR, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
47
VALVE PARKING BRAKE BOSCH, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
47
VALVE PARKING BRAKE KNORR, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
47
VALVE PARKING BRAKE WABCO, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
47
VALVE PARKING BRAKE BOSCH, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
47
VALVE PARKING BRAKE WABCO, IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING
47
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING, Replaced By: A0034300381
47
VALVE , THE OLD PART MUST NO LONGER BE INSTALLED IN CASE OF NOISE MEASUREMENTS,PLEASE REFER TO WORKING INSTRUCTION PRIOR TO ORDERING, Replaced By: A0034300281
51
PROTECTIVE CAPTO BOSCH
51
PROTECTIVE CAPTO WABCO
51
PROTECTIVE CAPKNORR
55
HANDLETO WABCO
55
HANDLEKNORR
55
HANDLETO BOSCH
63
REPAIR KITTO BOSCH
63
REPAIR KITTO 003 430 02 81/03 81,KNORR
63
REPAIR KITTO 001 430 60 81,001 430 61 81, NOT USED
63
REPAIR KITTO WABCO
63
REPAIR KIT , Replaced By: A0034303281
87
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
95
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
103
VALVE TRAILER BRAKE,5 116581 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
107
BRAKE VALVE , THE OLD PART MUST NO LONGER BE INSTALLED PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034313505
107
BRAKE VALVE TRAILER CONTROL VALVE BOSCH,4 375193 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
107
BRAKE VALVE TRAILER CONTROL VALVE WABCO,4 375193
109
BRAKE VALVE SEAL RING TO 001 431 18 05,4 412020
109
REPAIR KITTO 001 431 48 05,4 375193
109
REPAIR KITTO 001 431 37 05,4 375193
109
REPAIR KIT , Replaced By: A0004304606
111
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
119
THRUST RING CHECK VALVE TO AIR RESERVOIR
119
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
127
O-RING CHECK VALVE TO AIR RESERVOIR
135
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
143
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
149
PIPE SOCKET 3/2-WAY VALVE,CONNECTION: "30"
151
BRACKET (TRAILER CONTROL VALVE),5 276600
151
BRACKET TRAILER BRAKE VALVE,5 276599
159
SCREW SUPPORT TO CROSS MEMBER M 10X28
167
NUT STRAP TO BRACKET
167
NUT , Replaced By: N910113010000
175
SCREW , Replaced By: N304017010043
175
SCREW , Replaced By: N304017008021
175
SCREW BRACKET TO CONSOLE
175
SCREW PIPE CLAMP
183
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
183
NUT , Replaced By: N913004008001
191
WASHER , Replaced By: N000125008443
191
WASHER EXHAUST MUFFLER TO STRAP
195
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
198
FITTING RELAY VALVE,CONNECTION: "40"
201
ELBOW FITTING RELAY VALVE,CONNECTION: "20"
203
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
206
VALVE TWO-WAY
206
VALVE , THIS NOTE OF REPLACEMENT APPLIES ONLY TO THE ITEM LISTED OPPOSITE, Replaced By: A0024299544
206
VALVE TWO-WAY
209
VALVE , Replaced By: A0004291182
209
VALVE BODYTO 002 429 95 44
214
BALLTO 003 429 22 44
222
GASKETTO 003 429 22 44
230
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
230
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
232
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
234
THRUST RING CHECK VALVE TO AIR RESERVOIR
234
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
236
RUBBER BUFFER , NOT USED
238
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
246
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
254
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
262
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
269
BRACKET OVERFLOW VALVE,CONNECTION: "20"
269
BRACKET OVERFLOW VALVE,CONNECTION: "10"
276
SHEET METAL SCREW , Replaced By: N007983004333
276
SHEET METAL SCREW BRACKET TO CAB
999
NUT , Replaced By: N910113010000
999
REPAIR KITTO KNORR
999
REPAIR KIT HAND BRAKE LEVER TO WABCO
999
VALVE PARKING BRAKE VALVE BOSCH
999
VALVE PARKING BRAKE VALVE BOSCH
