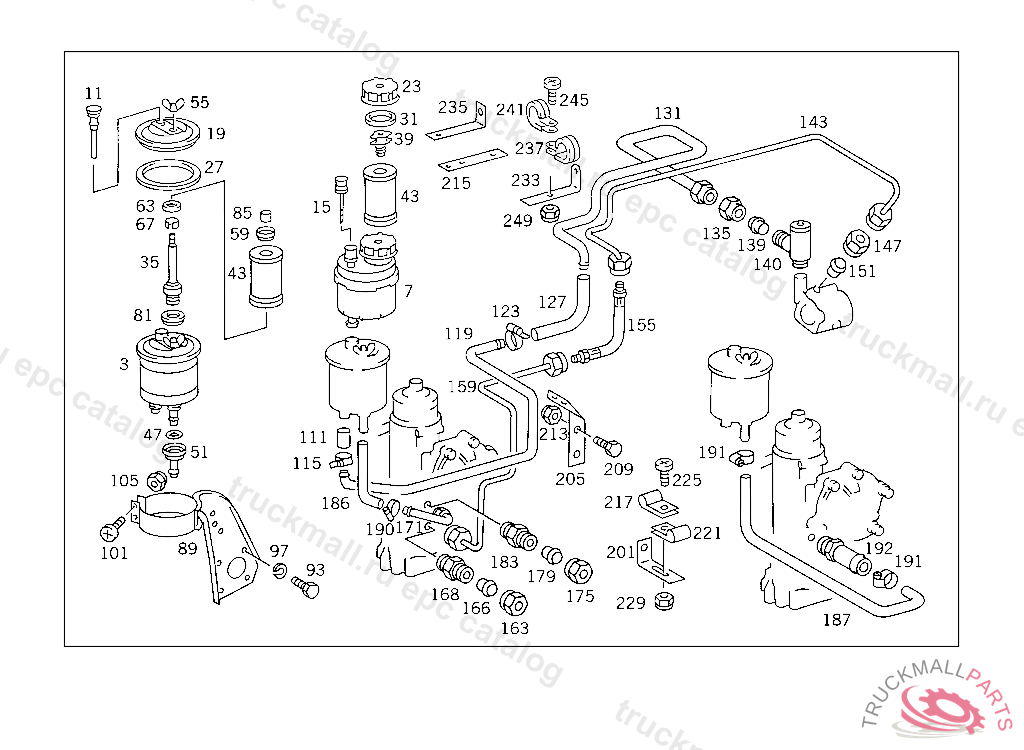

Поз.
Артикул
Описание
3
TANK , Replaced By: A0004664502
7
TANK OIL
11
PIPETO 000 466 38 02
15
OIL DIPSTICK
15
OIL DIPSTICK , Replaced By: A0004660867
19
COVERTO 000 466 38 02
23
FILLER CAP
27
SEAL RINGTO 000 466 38 02
31
SEAL RING
35
FILTER CARRIERTO 000 466 38 02
39
BRACKET
43
FILTER
47
SEAL RINGTO 000 466 38 02
51
CONNECTORTO 000 466 38 02
55
NUTTO 000 466 38 02
59
CENTERING RINGTO 000 466 38 02
63
SPACER WASHERTO 000 466 38 02
63
WASHER , Replaced By: A9402680552
67
SPACER TUBETO 000 466 38 02
81
COVER PLATETO 000 466 38 02
85
RUBBER SLEEVETO 000 466 38 02
89
BRACKET OIL TANK
89
BRACKET OIL TANK
93
HEXAGON HEAD BOLT RUBBER MOUNTING TO SIDE MEMBER AND TO SUPPORT M10X20
93
SCREW , Replaced By: N304017010028
97
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
101
SCREW OIL TANK TO BRACKET
105
NUT PUMP TO BRACKET
105
NUT , Replaced By: N913004006001
111
HOSE , Replaced By: A3859971582
111
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
115
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
115
CLAMP , Replaced By: N000000000667
119
LINE FROM OIL TANK TO HOSE
119
LINE FROM OIL TANK TO HOSE, NOT USED
123
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
123
CLAMP , Replaced By: N000000000667
127
HOSE , Replaced By: A3859971582
127
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
135
UNION NUT LINE CONNECTION, Replaced By: N000000006243
139
SEAL CONE LINE CONNECTION
139
GLAND , Replaced By: A0019901267
140
ELBOW FITTING SUCTION LINE TO OIL PUMP
143
LINE FROM PUMP TO HIGH PRESSURE HOSE, CIRCUIT I
147
UNION NUT LINE CONNECTION, Replaced By: N000000006239
151
SEAL CONE LINE CONNECTION
151
GLAND , Replaced By: A0019901967
155
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
155
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
155
HOSE (DELIVERY LINE),FROM PUMP TO STEERING
159
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 466861
159
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING
163
UNION NUT LINE CONNECTION, Replaced By: N000000006239
166
SEAL CONE LINE CONNECTION
166
GLAND , Replaced By: A0019901967
168
SCREW-IN FITTING DELIVERY LINE TO PUMP
187
HOSE RETURN, FROM STEERING TO OIL TANK
187
HOSE RETURN, FROM STEERING TO OIL TANK
191
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
191
CLAMP , Replaced By: N000000000667
192
FITTING RETURN LINE TO STEERING
201
BRACKET COMPRESSED AIR LINE TO FOUR-CIRCUIT PROTECTIVE VALVE,5 720506
201
BRACKET COMPRESSED AIR LINES, Replaced By: A6205240340
201
BRACKET , EXHAUST STOCK OF OLD PARTS NUMBER FIRST UP TO CHASSIS 4 493018, Replaced By: A3812950440
201
BRACKET FUEL LINES TO TRANSMISSION
205
BRACKET DELIVERY AND SUCTION LINES TO FRAME
205
BRACKET , Replaced By: A6564660040
205
BRACKET DELIVERY AND SUCTION LINES TO FRAME
209
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
209
SCREW , Replaced By: N308676012026
209
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
213
NUT SUPPORT TO SIDE MEMBER
215
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
217
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
217
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
221
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
225
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
229
NUT , Replaced By: N913004006001
229
NUT PUMP TO BRACKET
237
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
241
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
245
SCREW DELIVERY AND SUCTION LINES TO ENGINE, TOP
245
SCREW DELIVERY AND SUCTION LINES TO ENGINE, FRONT M 6X35
249
NUT , Replaced By: N913004006001
249
NUT PUMP TO BRACKET
999
SCREW CONNECTION SUCTION LINE TO OIL PUMP
999
CLAMPING SLEEVE , Replaced By: A6559910061
999
CLAMPING SLEEVE STEERING WHEEL TILT ADJUSTMENT,4 231946-4 430729
999
SCREW DIODE CASE TO OPERATING UNIT CASE
999
HEADLESS SETSCREW LEFT HANDLE
999
HEADLESS SETSCREW , USED WITH MERCEDES-BENZ PLATFORM, Replaced By: N000417004011
999
COTTER PIN DRAG LINK TO LEVER
999
HANDLE , Replaced By: A6554600369
999
LINE (SUCTION LINE),FROM HOSE TO OIL PUMP
999
DOWEL PIN STEERING WHEEL TILT ADJUSTMENT,4 188879
999
THRUST PLATE , Replaced By: A3834620363
999
HANDLE RIGHT,4 430730
999
HANDLE LEFT,4 727154
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051,5 220081 STATE COLOR WHEN ORDERING
999
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
999
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051,5 220081 STATE COLOR WHEN ORDERING
999
SHELL STEERING COLUMN PANELLING, BLACK,NO.9051,5 220267 NO.8316INO.7C52INO.7B90INO.9051I II I
999
BEARING STEERING SHAFT,5 468372
999
BEARING
999
BEARING STEERING SHAFT,5 2200815 468371
999
BEARING STEERING SHAFT,5 2200815 468371
999
STEERING COLUMN BRACKET ,5 220267
999
STEERING COLUMN BRACKET ,5 220267
999
BRACKET , Replaced By: A3524290740
999
BRACKET , Replaced By: A3875015820
999
BRACKET , Replaced By: A6205244040
999
LINE , Replaced By: A0004291601
999
LINE FROM PUMP TO HIGH PRESSURE HOSE, 620.415 UP TO IDENT NO. 5 014668 620.416 UP TO IDENT NO. 5 000515 620.417 UP TO IDENT NO. 4 972023
999
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
999
LINE FROM POWER STEERING PUMP TO HOSE
999
WASHER ADJUSTABLE STEERING COLUMN
999
THRUST PLATE STEERING WHEEL HEIGHT ADJUSTMENT,4 727154
999
BUSHING STEERING COLUMN BRACKET
999
THRUST PLATE
999
RUBBER PAD ADJUSTABLE STEERING COLUMN TO 383 460 09 31
999
HANDLE , Replaced By: A6554600469
999
HANDLE , Replaced By: A6754600369
999
STEERING COLUMN END , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 4 727154 - 5 468371, Replaced By: A3054600452
999
BRACKET , Replaced By: A3604293140
999
BRACKET , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 4 716042, Replaced By: A3874660940
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
999
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, NO.8316I I I I IIINO.7C52I I I II IINO.7B90 III III NO.9051II I
999
BOOT STEERING COLUMN PANELLING, BLACK,NO.9051, STATE COLOR WHEN ORDERING
999
BRACKET , Replaced By: A3604292940
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT, TO BE ADAPTED DURING ASSEMBLY
999
SCREW UNIVERSAL JOINT TO STEERING COLUMN M 8X38,5 463984
999
STEERING COLUMN END ADJUSTABLE STEERING COLUMN,4 727154
999
PROTECTIVE CAP
999
FITTING DELIVERY LINE TO PUMP
999
NUT DRAG LINK END M 24X1.5
999
DISC SPRING STEERING WHEEL TILT ADJUSTMENT,4 231946-4 430729
999
TUBE FROM HIGH PRESSURE HOSE TO STEERING
