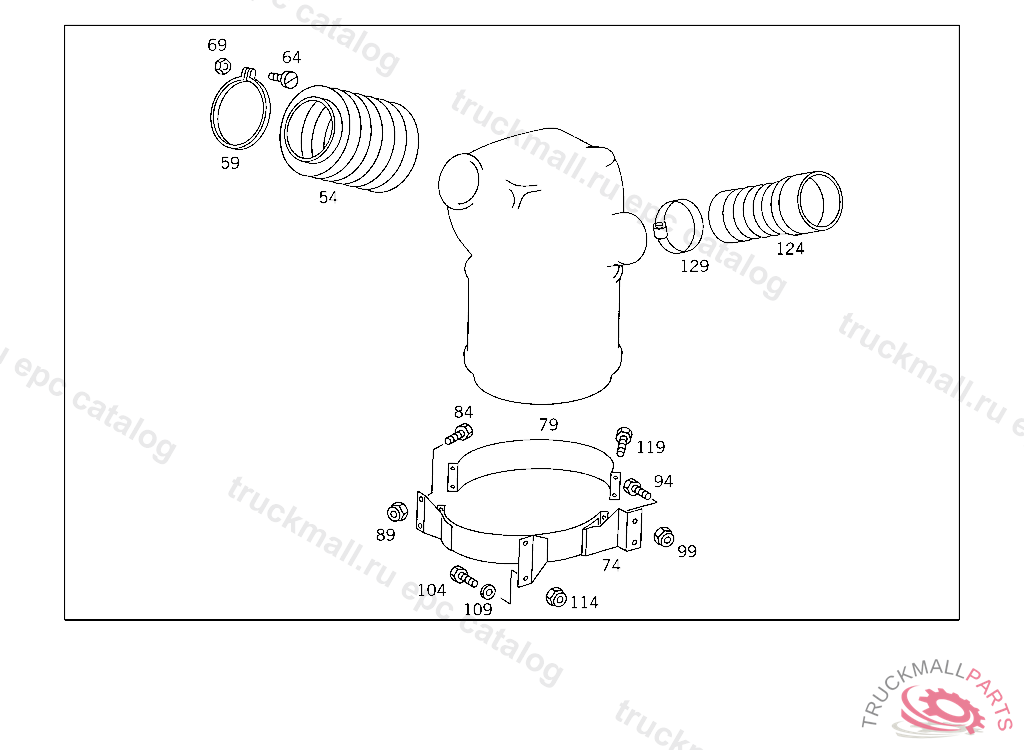

Поз.
Артикул
Описание
54
BOOT AIR CLEANER TO CAB
59
CLAMP BOOT TO INTAKE PIPE
64
SCREW BOOT TO AIR DUCT AND TO AIR CLEANER,5 946572
69
NUT BOOT TO AIR DUCT AND TO AIR CLEANER
74
SUPPORT AIR CLEANER,K 000844
74
SUPPORT ,K 000843, Replaced By: A6505200333, +002N000961016009, +002N913004016004
79
STRAP AIR CLEANER TO SUPPORT
84
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
84
SCREW , Replaced By: N308676014020
89
NUT , Replaced By: N910113014001
89
NUT BRACKET TO SIDE MEMBER
94
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
94
SCREW , Replaced By: N308676012026
99
NUT CONNECTOR TO EXHAUST MANIFOLD
104
SCREW END PIECE TO EXHAUST PIPE M 10X25
109
WASHER RADIATOR TO RUBBER MOUNTING
114
NUT STRAP TO BRACKET
114
NUT , Replaced By: N910113010000
119
SCREW , Replaced By: N304017008021
119
SCREW PIPE CLAMP
124
HOSE FROM AIR CLEANER TO TRANSVERSE INTAKE PIPE
129
CLAMP HOSE TO CAB CONSOLE AND TO ENGINE CONNECTION
129
CLAMP HOSE TO AIR CLEANER AND CAB CONSOLE 130-150X13 MM, Replaced By: N000000005892
129
CLAMP , Replaced By: N000000000678
