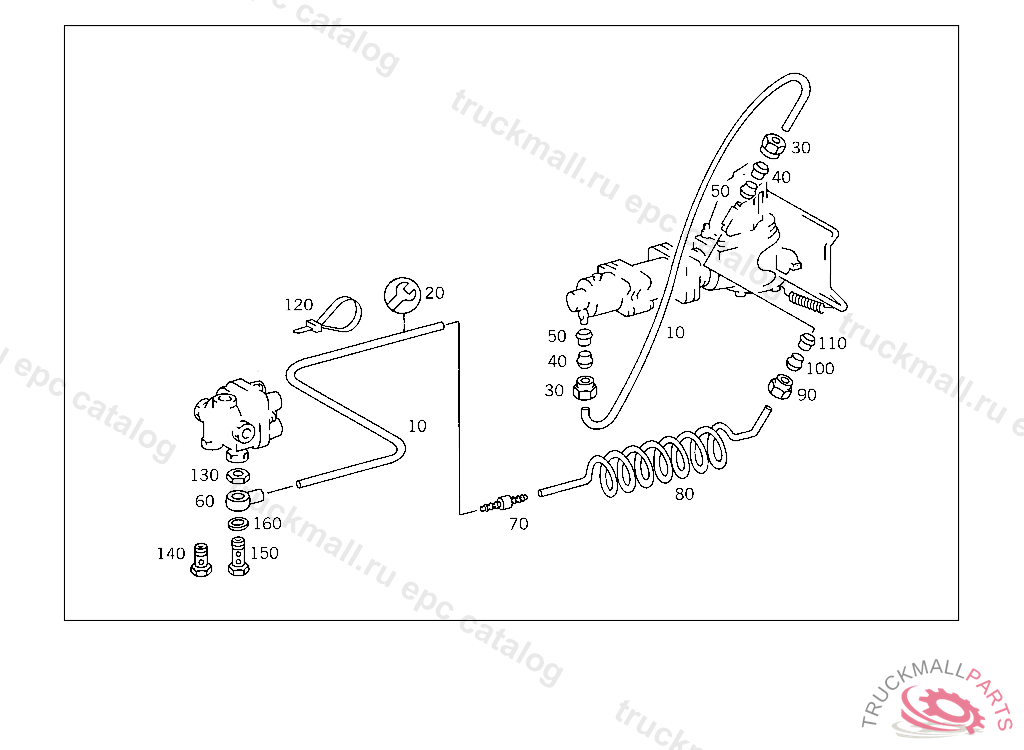

Поз.
Артикул
Описание
10
PLASTIC PIPE RISING PIPE 4X6 MM
10
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
20
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
30
UNION NUT
40
GLAND , Replaced By: A0019901667
40
SEAL CONE
50
SLEEVE LEAK LINE
60
BANJO UNION HOSE WIDTH, / I.D., 4/16 MM
60
BANJO UNION HOSE WIDTH, / I.D., 4/10 MM
60
BANJO UNION HOSE WIDTH, / I.D., 4/12 MM
70
CONNECTOR
80
COILED TUBE FROM 3/2-WAY VALVE TO FITTING, NOT USED
90
UNION NUT
100
SEAL CONE
100
GLAND , Replaced By: A0019901667
110
SLEEVE LEAK LINE
120
LOOM TIE LINE MOUNTING 280 MM
120
LOOM TIE LINE MOUNTING
130
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
140
HOLLOW SCREW HEATING CONNECTION
140
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
150
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
160
SEAL RING LINE CONNECTION
160
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
999
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "24" "24",5 239549
999
SEAL RING LINE CONNECTION
999
HOLLOW SCREW LINE CONNECTION
