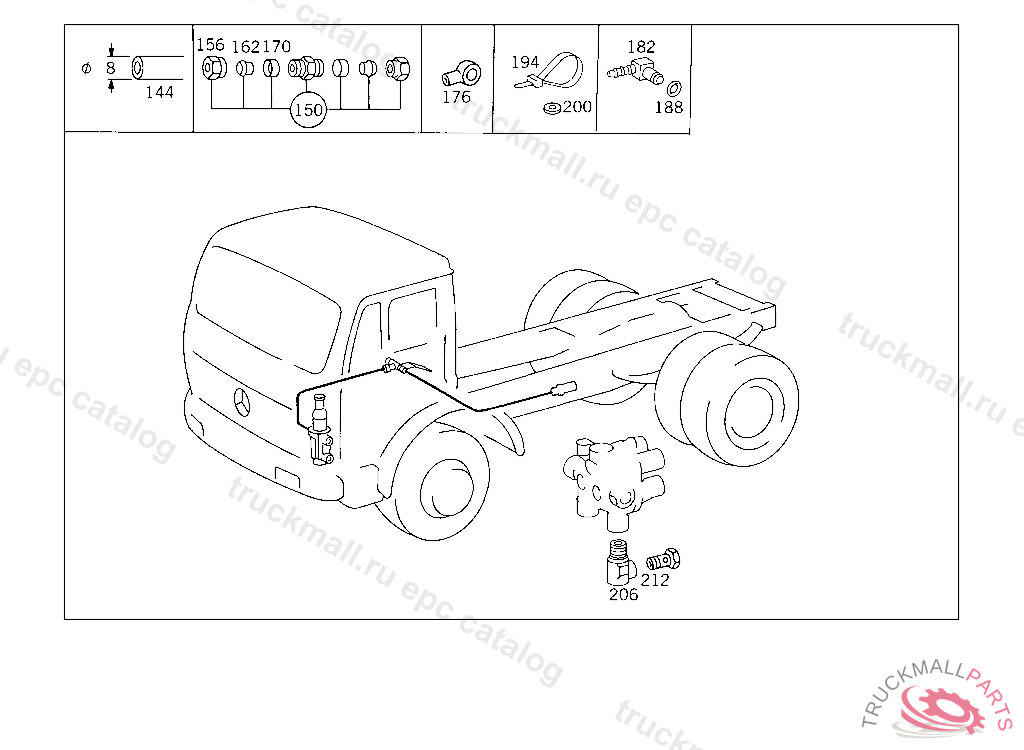

1225 AF,1228 AF,1428 AF,1429 AF,1442 AF - 615.266 - 42 BRAKES
Поз.
Артикул
Описание
144
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
150
FITTING (PARTS KIT),LINE RUPTURE
150
FITTING , Replaced By: A0029905971
156
UNION NUT LINE CONNECTION
162
GLAND LINE CONNECTION
170
SLEEVE LINE CONNECTION
176
BANJO UNION HEATING CONNECTION,K 169122
182
COUPLING FROM CHECK VALVE TO PARKING BRAKE VALVE
188
SEAL RING
194
LOOM TIE LINE MOUNTING
200
WASHER BRACKET TO LEFT SIDE MEMBER
206
T-FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
212
HOLLOW SCREW HEATING CONNECTION
