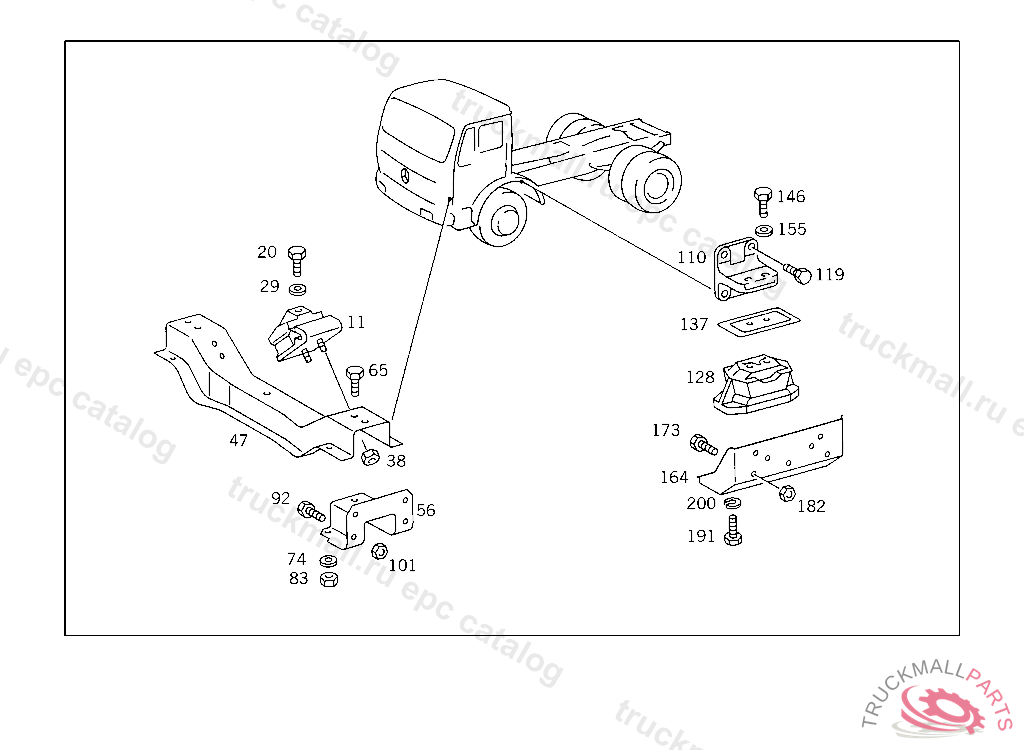

Поз.
Артикул
Описание
11
RUBBER MOUNTING FRONT
20
SCREW , Replaced By: N000961016097
20
SCREW , Replaced By: N308676016005
20
SCREW SUPPORT TO TRANSMISSION M 16X1.5X60
29
WASHER CONSOLE TO FRAME
38
NUT SUPPORT TO SIDE MEMBER
47
ENGINE CROSS MEMBER FRONT
56
ENGINE STAY FRONT
65
SCREW , Replaced By: N308676012026
65
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
74
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
83
NUT SUPPORT TO SIDE MEMBER
92
SCREW , Replaced By: N308676012026
92
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
92
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
101
NUT SUPPORT TO SIDE MEMBER
110
SUPPORTING ARM CLUTCH END
119
SCREW SUPPORTING ARM TO HOUSING M 16X35
119
SCREW , Replaced By: N304017016004
128
RUBBER MOUNTING REAR
128
RUBBER MOUNTING REAR
137
SCREENING PLATE REAR RUBBER MOUNTING
146
SCREW BRACKET TO SIDE MEMBER M 14X1.5X50,5 543914
146
SCREW SUPPORT TO SIDE MEMBER M 14X45
146
SCREW , Replaced By: N308676014012
155
WASHER CROSS MEMBER TO SUPPORT
164
CONSOLE ENGINE RIGHT SUPPORT, TO BE ADAPTED DURING ASSEMBLY
164
SUPPORT , Replaced By: A3812400206, +002N000961012097
164
CONSOLE ENGINE LEFT SUPPORT, TO BE ADAPTED DURING ASSEMBLY
173
HEXAGON HEAD BOLT. SCREW BRACKET TO CROSS MEMBER
173
SCREW BRACKET TO FRAME M 12X35
182
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
182
NUT , Replaced By: N910113012003
191
SCREW , Replaced By: N308676012026
191
SCREW BRACKET TO LEFT SIDE MEMBER
191
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
200
WASHER
