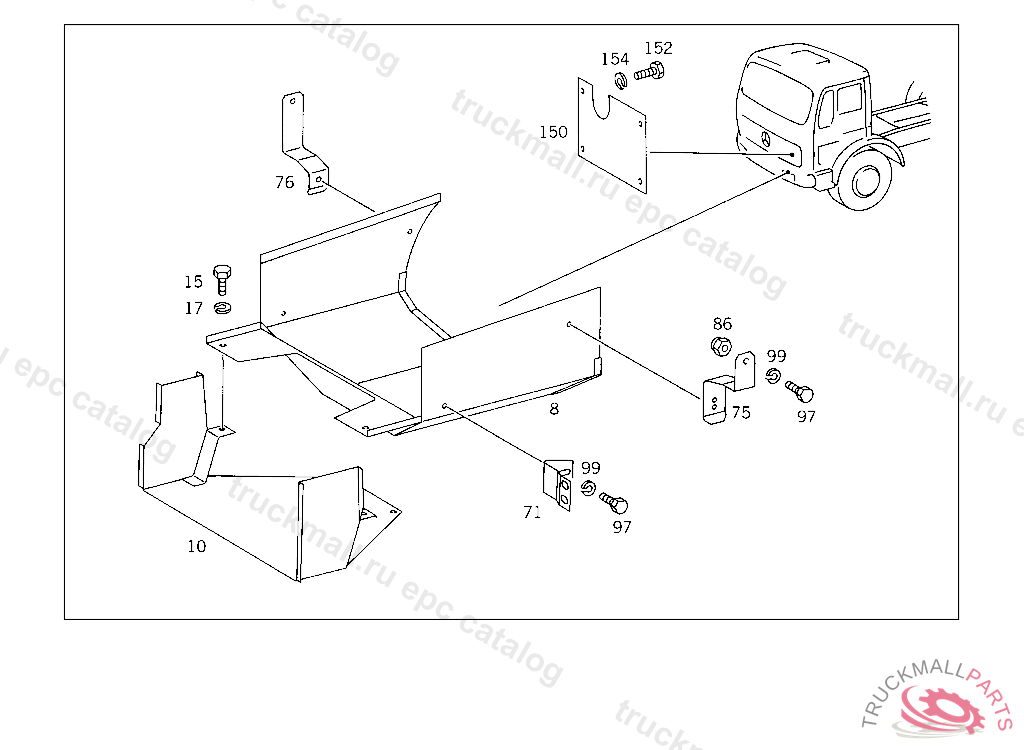

Поз.
Артикул
Описание
8
COVERING ENGINE,BOTTOM,4 921287
10
COVERING ENGINE,BOTTOM,4 921287
15
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
17
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
71
BRACKET COVER PLATE,4 921287
75
BRACKET COVER PLATE,4 921199
76
BRACKET ENGINE COVERING,4 921287
76
BRACKET ENGINE COVERING,4 921287
86
NUT SUPPORT TO SIDE MEMBER
97
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
97
SCREW PIPE CLAMP
97
SCREW , Replaced By: N304017008021
99
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
99
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
150
COVERING STABILIZER
152
SCREW COVER PLATE TO COVER PLATE M 6 X 10
152
SCREW , Replaced By: N304017006034
154
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
999
BRACKET COMPRESSED AIR LINE TO SIDE MEMBER
