Поз.
Артикул
Описание
5

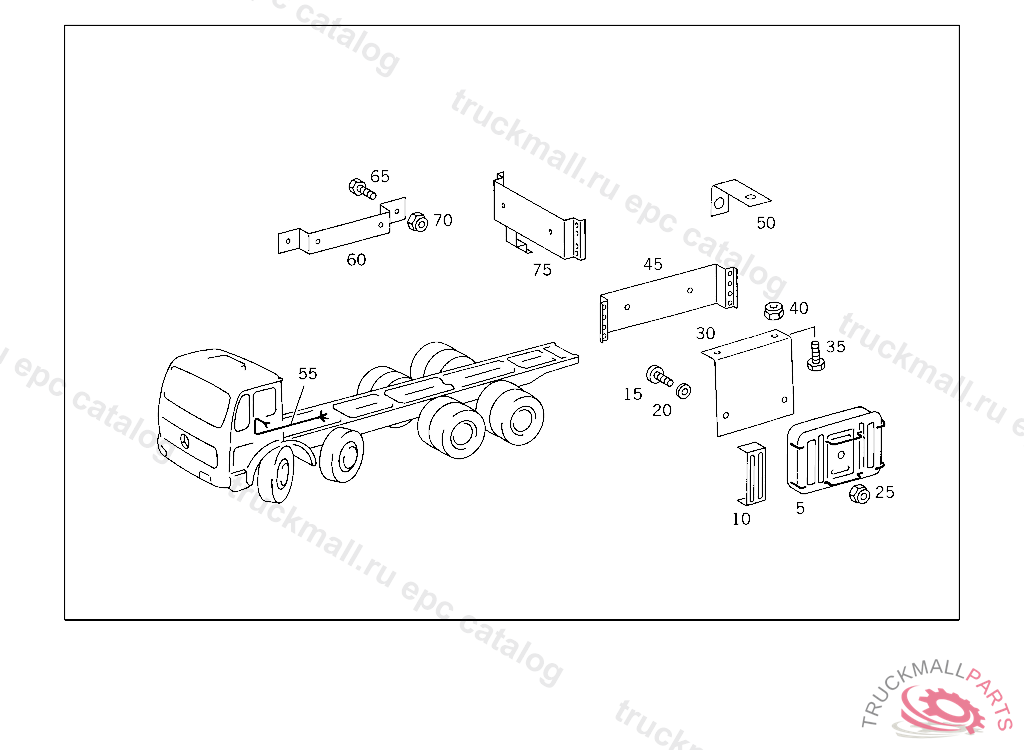

CABLE CONNECTOR FRAME,REAR
10
ANGLE CABLE CONNECTOR
15
SCREW JUNCTION BOX TO BRACKET
20
WASHER , Replaced By: N000433005304
20
WASHER BOOT TO CAB FLOOR
25
NUT TWO-WAY VALVE TO BRACKET
30
BRACKET JUNCTION BOX
35
SCREW BRACKET TO CROSS CONNECTION STRUT
35
SCREW , Replaced By: N304017008034
40
NUT , Replaced By: N913004008001
40
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
45
BRACKET ELECTRIC CABLE MOUNTING
50
BRACKET LINE MOUNTING
55
CABLE HARNESS FROM FRAME TO CAB
60
BRACKET JUNCTION BOX
65
SCREW , Replaced By: N304017008027
65
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
70
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
70
NUT , Replaced By: N913004008001
75
BRACKET ELECTRIC CABLE TENSILE STRESS RELIEF
