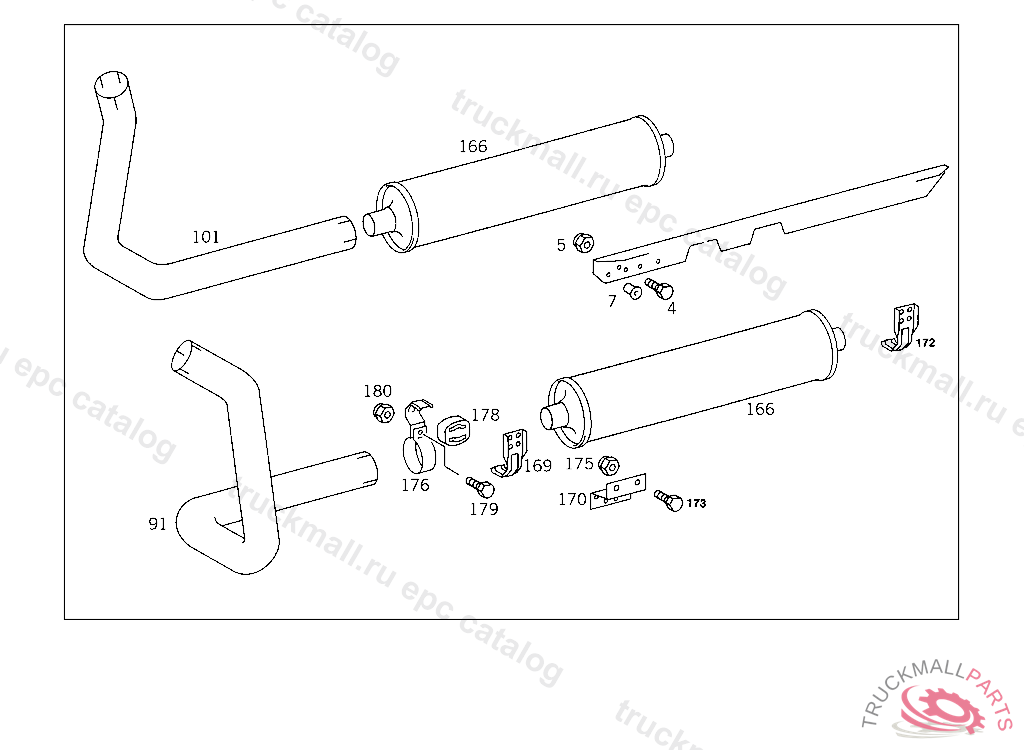

Поз.
Артикул
Описание
4
SCREW , Replaced By: N308676012012
4
SCREW. HEXAGON HEAD BOLT VALVE TO BRACKET
5
NUT SUPPORT TO SIDE MEMBER
7
RIVET12X28 MM, TO BE ADAPTED DURING ASSEMBLY
7
RIVET FRAME TRUSS TO SIDE MEMBER
7
RIVET FRAME TRUSS TO SIDE MEMBER
7
RIVET FRAME TRUSS TO SIDE MEMBER
91
EXHAUST PIPE FRONT,REAR LEFT PART
101
EXHAUST PIPE FRONT,REAR RIGHT PART
166
EXHAUST MUFFLER
169
SUPPORT FRONT EXHAUST MUFFLER
170
SUPPORT FRONT EXHAUST MUFFLER
172
SUPPORT EXHAUST
173
SCREW , Replaced By: N304017008027
173
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
175
NUT , Replaced By: N913004008001
175
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
175
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
175
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
176
BRACKET EXHAUST MUFFLER TO SUPPORT
178
DAMPING PAD PARTICLE FILTER
179
SCREW , Replaced By: N304017010002
179
SCREW BRACKET TO SIDE MEMBER
180
NUT , Replaced By: N910113010000
180
NUT STRAP TO BRACKET
999
BRACKET RUBBER BUFFER,5 129244
999
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
999
SUPPORT TAIL PIPE
999
BRACKET , Replaced By: A3834927941
999
SUPPORT REAR EXHAUST MUFFLER
999
CLAMP LINE MOUNTING
