Поз.
Артикул
Описание

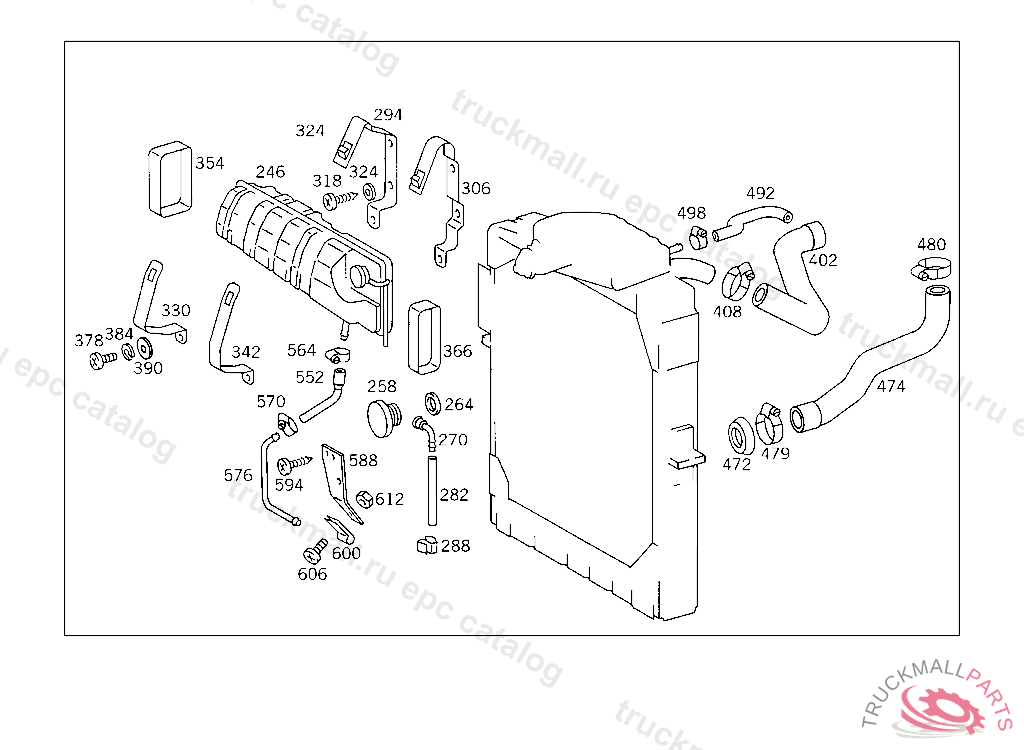

246
TANK (EXPANSION TANK)
258
RADIATOR CAP
264
GASKET O.D., 37 MM
270
DRAIN PIPE EXPANSION TANK
282
HOSE
282
HOSE , Replaced By: A0219977682
282
HOSE OVERFLOW
288
CLIP CABLE HARNESS TO ROOF RAIL
294
BRACKET EXPANSION TANK
306
BRACKET EXPANSION TANK
318
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
324
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
330
STRAP EXPANSION TANK TO BRACKET
342
STRAP EXPANSION TANK TO BRACKET
354
SHIM EXPANSION TANK TO BRACKET
366
SHIM EXPANSION TANK TO BRACKET
378
SCREW CLAMP MOUNTING M 6X16
378
SCREW , Replaced By: N000000001146
384
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
390
WASHER COMPRESSED AIR LINE TO BRACKET
390
WASHER , Replaced By: N009021006208
408
CLAMP
408
CLAMP , Replaced By: N000000000671
472
RUBBER PAD COOLING WATER LINE, NOT USED
474
HOSE FROM RADIATOR OUTLET TO WATER PUMP,5 422032
474
HOSE FROM RADIATOR OUTLET TO OIL COOLER,5 422031
479
CLAMP HOSE FASTENING 50-70X13 MM
479
CLAMP HOSE FASTENING 50-70X13 MM
479
CLAMP , Replaced By: N000000000672
480
CLAMP
480
CLAMP , Replaced By: N000000000671
552
HOSE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
564
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
564
CLAMP , Replaced By: N000000000667
570
CLAMP HOSE TO RADIATOR AND TO EXPANSION TANK 12-22X13 MM
570
CLAMP , Replaced By: N916017011001
576
BREATHER PIPE (DE-AERATION LINE) FROM RADIATOR TO EXPANSION TANK
588
BRACKET DE-AERATION LINE TO CAB
594
SHEET METAL SCREW COVER PLATE TO CAB REAR PANEL
600
CLAMP ,K 147121, Replaced By: N000000000319
600
CLAMP , Replaced By: N916016008200
600
CLAMP , Replaced By: A3604300143
606
SCREW CLAMP MOUNTING M 6X16
606
SCREW , Replaced By: N000000001146
612
NUT PUMP TO BRACKET
612
NUT , Replaced By: N913004006001
999
RADIATOR , Replaced By: A0015010901
