Поз.
Артикул
Описание

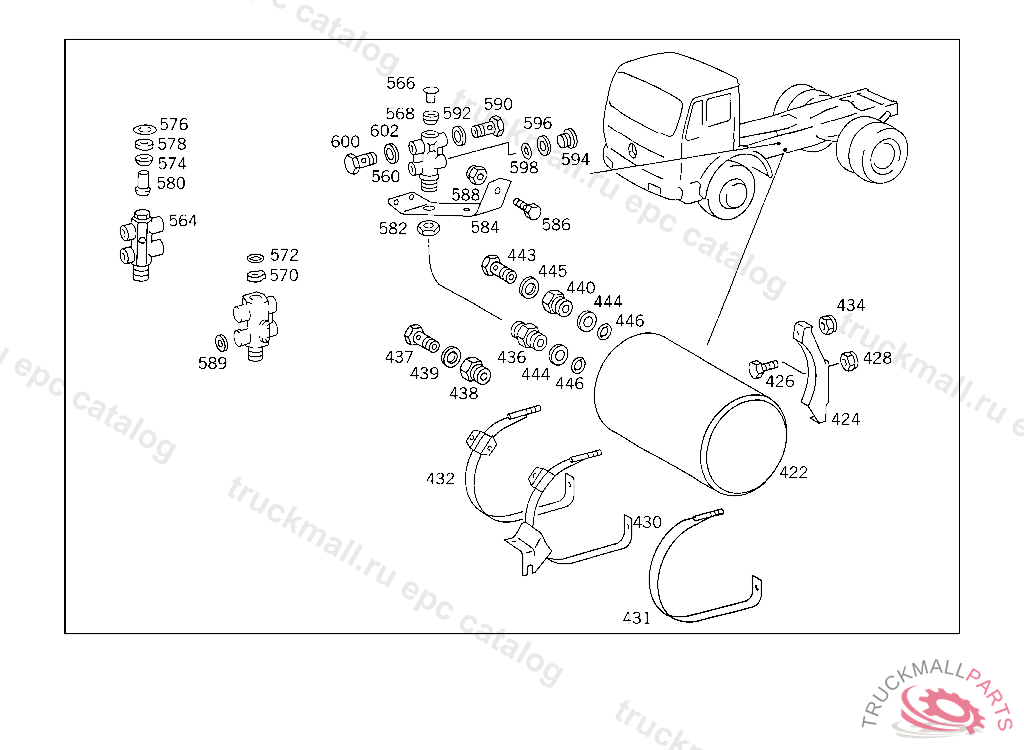

422
RESERVOIR20L,246 MM,12.5 BAR
422
RESERVOIR , Replaced By: A0034321201
422
RESERVOIR , Replaced By: A0014327501
424
BRACKET AIR RESERVOIR TO FRAME
426
SCREW BRACKET TO APPARATUS SUPPORT
426
SCREW , Replaced By: A0069909301
428
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
428
NUT , Replaced By: N913004008001
430
STRAP AIR RESERVOIR III,5 088362
430
STRAP FRONT AIR RESERVOIR,5 088361
431
STRAP AIR RESERVOIR TO BRACKET
432
STRAP FRONT AIR RESERVOIR,5 088361
434
NUT STRAP TO BRACKET
434
NUT , Replaced By: N910113010000
436
FITTING AIR RESERVOIR,CONNECTION: "13"
437
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
438
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
439
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
440
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
443
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
444
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
445
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
446
O-RING CHECK VALVE TO AIR RESERVOIR
560
VALVE (CHECK VALVE) VOSS
564
VALVE (CHECK VALVE) SCHAEFER
566
VALVE TAPPETTO 002 429 96 44,VOSS
568
SEAL RINGTO 002 429 96 44,VOSS
570
VALVETO 003 429 04 44,WABCO
572
SEAL RING19.3X2.4 MM,TO 003 429 04 44,WABCO
574
SEAL RING13.6X2 MM,TO 003 429 12 44,SCHAEFER
576
SEAL RING15.3X2.4 MM,TO 003 429 12 44,SCHAEFER
578
THRUST WASHERTO 003 429 12 44,SCHAEFER
580
SEAL CONETO 003 429 12 44,SCHAEFER
582
NUT CHECK VALVE TO AIR RESERVOIR
584
BRACKET HEAT SHIELD
584
BRACKET , Replaced By: A6164290140
586
SCREW BRACKET TO SIDE MEMBER
586
SCREW , Replaced By: N304017010002
588
NUT STRAP TO BRACKET
588
NUT , Replaced By: N910113010000
589
SEAL RING DOUBLE BRAKE LINE COUPLING, CONNECTIONS: "11,12"
589
SEAL RING , Replaced By: N007603012121
590
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
592
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
594
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "22"
596
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
598
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
600
HOLLOW SCREW FUEL LINE TO FEED PUMP
600
HOLLOW SCREW , Replaced By: N915036010108
602
SEAL RING FUEL LINE TO FEED PUMP
999
ADAPTER FITTING , Replaced By: A0004296934
999
CONNECTOR REPAIR SIZE
999
PRESSURE REGULATOR , Replaced By: A0024314906
999
REPAIR KIT COVERING BOSCH
999
PRESSURE REGULATOR ,5 148812, Replaced By: A0024314306
999
VALVE , Replaced By: A0024314006
999
VALVE (CHECK VALVE) WABCO
999
SEAL RING , Replaced By: A0049972248
999
GUMMED LABEL PARKING BRAKE ACTUATION
999
SCREW PLUG , Replaced By: N000908022011
999
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
999
STUD BOLT BRACKET TO CYLINDER BLOCK, REAR,5 171760
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
