Поз.
Артикул
Описание

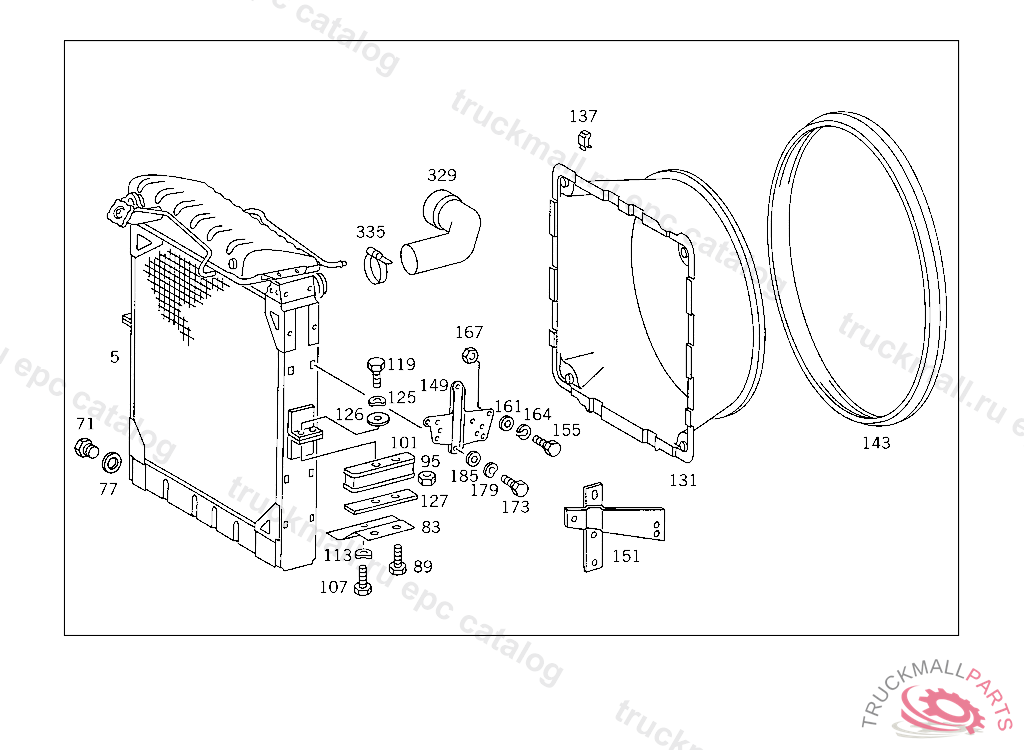

5
RADIATOR
5
RADIATORBEHR,5 106401
71
SCREW PLUG WATER DRAIN
71
SCREW PLUG , Replaced By: N007604014101
77
SEAL RING FUEL LINE TO FEED PUMP
83
SUPPORT RADIATOR MOUNTING,4 428845
83
SUPPORT RADIATOR
89
SCREW BRACKET TO FRAME M 12X35
95
NUT SUPPORT TO SIDE MEMBER
101
RUBBER MOUNTING RADIATOR MOUNTING,4 428845
101
RUBBER MOUNTING RADIATOR
107
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
113
SPRING WASHER STEERING COLUMN BRACKET TO CAB
119
SCREW EXHAUST PIPE TO BRACKET
119
SCREW REAR EXHAUST PIPE TO MUFFLER
119
SCREW END PIECE TO EXHAUST PIPE M 10X25
125
SPRING WASHER STEERING COLUMN BRACKET TO CAB
126
WASHER RADIATOR TO RUBBER MOUNTING
126
WASHER , Replaced By: N000125010532
127
SHIM RADIATOR TO RUBBER MOUNTING,4 428845
127
SHIM RUBBER MOUNTING TO BRACKET
127
SHIM RUBBER MOUNTING TO BRACKET
131
FAN SHROUD RADIATOR
137
CLIP-TYPE NUT FAN SHROUD TO RADIATOR
143
BOOT FAN SHROUD TO FAN RING
149
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
149
BRACKET OIL DIPSTICK TO RADIATOR,4 410133
149
BRACKET OIL DIPSTICK GUIDE TUBE
151
BRACKET OI DIPSTICK GUIDE TUBE
155
SCREW BRACKET TO BATTERY/APPARATUS SUPPORT
155
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
161
WASHER SUPPORTING RAIL TO SUPPORT,5 429712
161
WASHER EXHAUST MUFFLER TO STRAP
161
WASHER EXHAUST MUFFLER TO STRAP
164
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
173
SCREW LICENSE PLATE TO BRACKET
173
SCREW , Replaced By: N304017006020
173
SCREW COVER PLATE TO BRACKET
173
SCREW COVER PLATE TO BRACKET
179
SPRING WASHER LICENSE PLATE TO BRACKET
185
WASHER AIR BAFFLE AND BRACKET TO RADIATOR
185
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
329
HOSE TRANSMISSION OIL COOLER, TO BE ADAPTED DURING ASSEMBLY
329
HOSE FROM THERMOSTAT TO RADIATOR FILLER NECK
335
CLAMP HOSE FASTENING 50-70X13 MM
335
CLAMP , Replaced By: N000000000672
335
CLAMP HOSE 70-90X13 MM
335
CLAMP HOSE 70-90X13 MM
335
CLAMP , Replaced By: N000000000674
999
BRACKET OIL DIPSTICK TO RADIATOR
