Поз.
Артикул
Описание
5

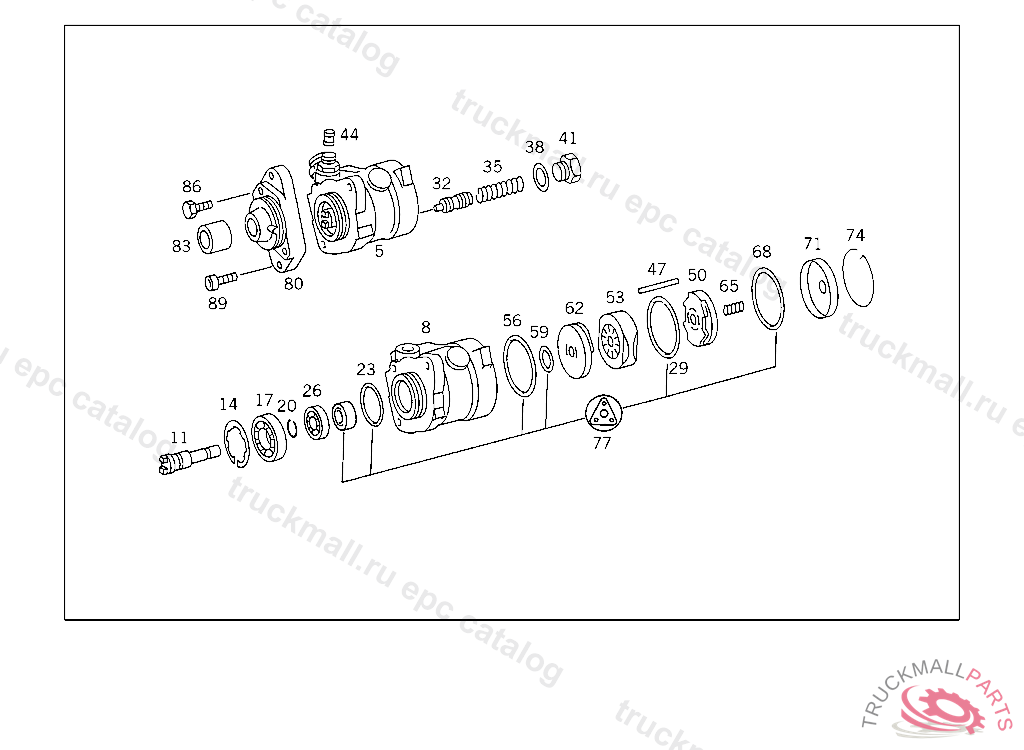

HYDRAULIC PUMP (POWER STEERING PUMP),AT ENGINE, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
HYDRAULIC PUMP , Replaced By: A0014667701
8
HOUSING , NOT USED
11
DRIVE SHAFT
14
LOCK RING
17
GROOVED BALL BEARING
20
SNAP RINGWEBER,TO 000 553 40 01, UP TO IDENT NO. 5 070891,FROM IDENT NO. SEE SA 31 460
23
SEAL RING ALSO INCLUDED IN GASKET KIT: 000 460 00 61
26
NEEDLE BEARING
26
NEEDLE BEARING , Replaced By: A0209818510
29
SEALING CORD ALSO INCLUDED IN GASKET KIT: 000 460 00 61
32
PISTON
32
PISTON , Replaced By: A0004665283
35
SPRING
38
SEAL RING ALSO INCLUDED IN GASKET KIT: 000 460 00 61
41
SCREW PLUG
44
CARTRIDGETO 001 466 77 01
44
CARTRIDGETO 001 466 26 01
47
DOWEL PINTO 001 466 77 01
47
DOWEL PINTO 001 466 26 01
50
COVER
50
COVER , Replaced By: A0014660905
53
ROTOR SET
53
ROTOR SET , Replaced By: A0004666021
53
ROTOR SET , Replaced By: A0004665121
56
THRUST WASHER ALSO INCLUDED IN GASKET KIT: 000 460 00 61
59
SEAL RING
62
COVERTO 001 466 77 01
62
COVERTO 001 466 26 01
62
COVER , Replaced By: A0014660805
65
SPRING
68
THRUST WASHER ALSO INCLUDED IN GASKET KIT: 000 460 00 61
71
COVER
74
SNAP RING
77
GASKET KIT POWER STEERING PUMP AT ENGINE
80
FLANGE POWER STEERING PUMP
80
FLANGE , Replaced By: A4221300145
83
BUSHING
83
BUSHING , Replaced By: A0001314250
86
SCREW END PIECE TO EXHAUST PIPE M 10X25
89
SCREW
