Поз.
Артикул
Описание

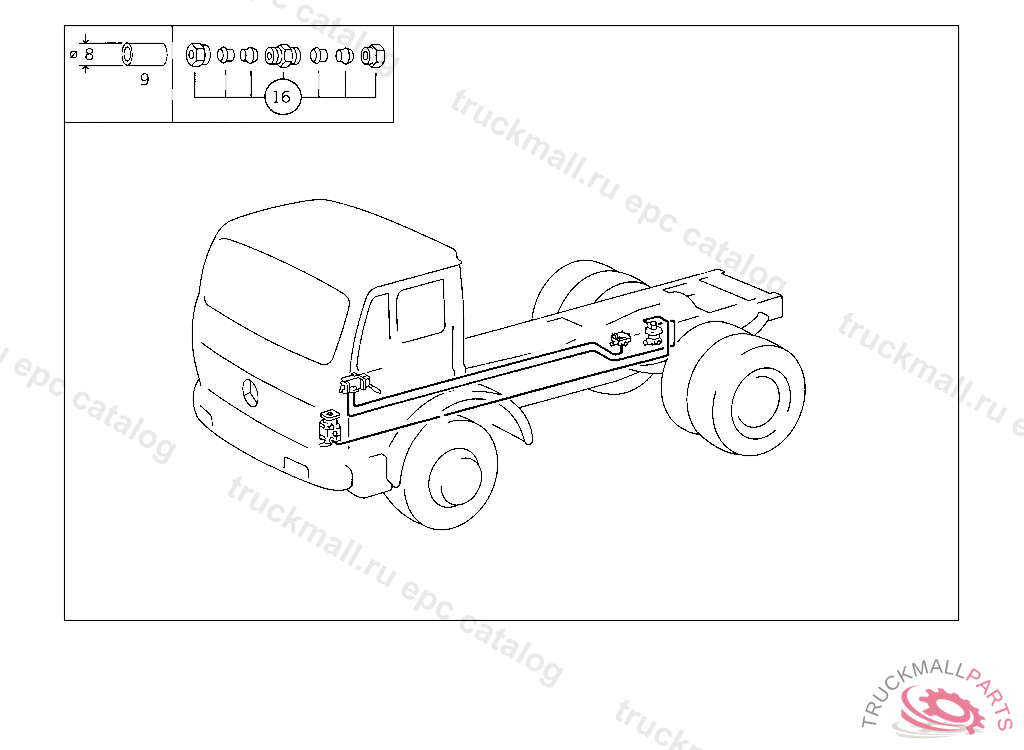

9
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
9
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
9
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
16
FITTING , Replaced By: A0029905971
16
FITTING (PARTS KIT),LINE RUPTURE
999
NUT , Replaced By: N913004006001
999
NUT PUMP TO BRACKET
999
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
999
SCREW CLAMP TO BRACKET
999
SCREW CLAMP TO BRACKET, Replaced By: N007985006581
999
SCREW , Replaced By: A0079900801
999
CLAMP DELIVERY AND SUCTION LINES TO STEERING
999
BRACKET , Replaced By: A3604293140
999
SHIM SUPPORT TO BEARING BRACKET
999
CLAMP , Replaced By: A6739950001
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SCREW REDUCTION VALVE TO BRACKET
