Поз.
Артикул
Описание

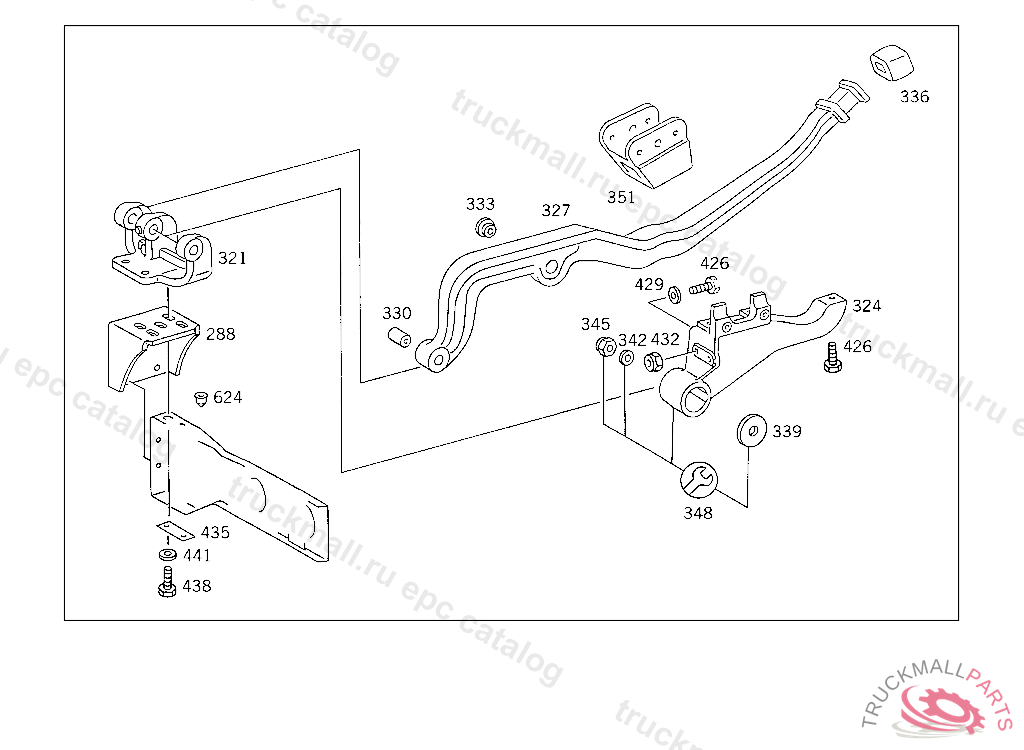

288
CONSOLE CAB SUSPENSION,FRONT
321
MOUNTING RIGHT SIDE MEMBER
321
MOUNTING CAB,LEFT
324
MOUNTING CAB, RIGHT
324
MOUNTING CAB,LEFT
327
LEVER (TILTING LEVER),CAB
330
BUSHING TILTING LEVER
330
BUSHING TILTING LEVER
333
BUSHING ON TOGGLE LEVER,FOR HYDRAULIC CYLINDER
336
BUFFER TILTING LEVER
339
WASHER BEARING BRACKET
342
WASHER TORSION BAR TO BEARING BRACKET
342
WASHER TORSION BAR TO BEARING BRACKET, Replaced By: N007349017003
345
NUT COMBINATION CYLINDER TO BEARING BRACKET
345
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
348
REPAIR KIT CAB SUSPENSION,FRONT
351
MOUNTING CAB TILTING LEVER
426
SCREW , Replaced By: N000961014064
426
SCREW BRACKET TO SIDE MEMBER
426
SCREW BRACKET TO CAB CONSOLE,K 035197
426
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
426
SCREW LEFT AND RIGHT BEARING BRACKETS TO CAB
426
SCREW , Replaced By: N308676012011
426
SCREW , Replaced By: N308676012031
429
WASHER STRUT TO EXHAUST PIPE AND TO SIDE MEMBER
429
WASHER , Replaced By: N000125015019
429
WASHER BRACKET TO SIDE MEMBER,5 703114
432
NUT BRACKET TO SIDE MEMBER
432
NUT , Replaced By: N910113014001
435
SHIM MOUNTING TO CONSOLE
438
SCREW MOUNTING TO CONSOLE M 14X35
438
SCREW MOUNTING TO CONSOLE M 14X55
438
SCREW MOUNTING TO CONSOLE M 14X35
438
SCREW MOUNTING TO CONSOLE M 14X35
438
SCREW , Replaced By: N308676014008
441
WASHER SPARE WHEEL CARRIER
624
RUBBER BUFFER CAB
999
FASTENER (CENTRAL LOCK) CAB LOCKING MECHANISM
999
SPACER WASHER FRONT SPRING FRONT BRACKET AND STEERING SUPPORT TO SIDE MEMBER 1.0 MM
999
SPACER WASHER FRONT SPRING FRONT BRACKET AND STEERING SUPPORT TO SIDE MEMBER 2.2 MM
999
SUPPORT , Replaced By: A6533520641
999
BEARING BODY THRUST ARM
999
RAIL CAB SUSPENSION,REAR
999
BRACKET BRACKET TO BRACKET
