Поз.
Артикул
Описание

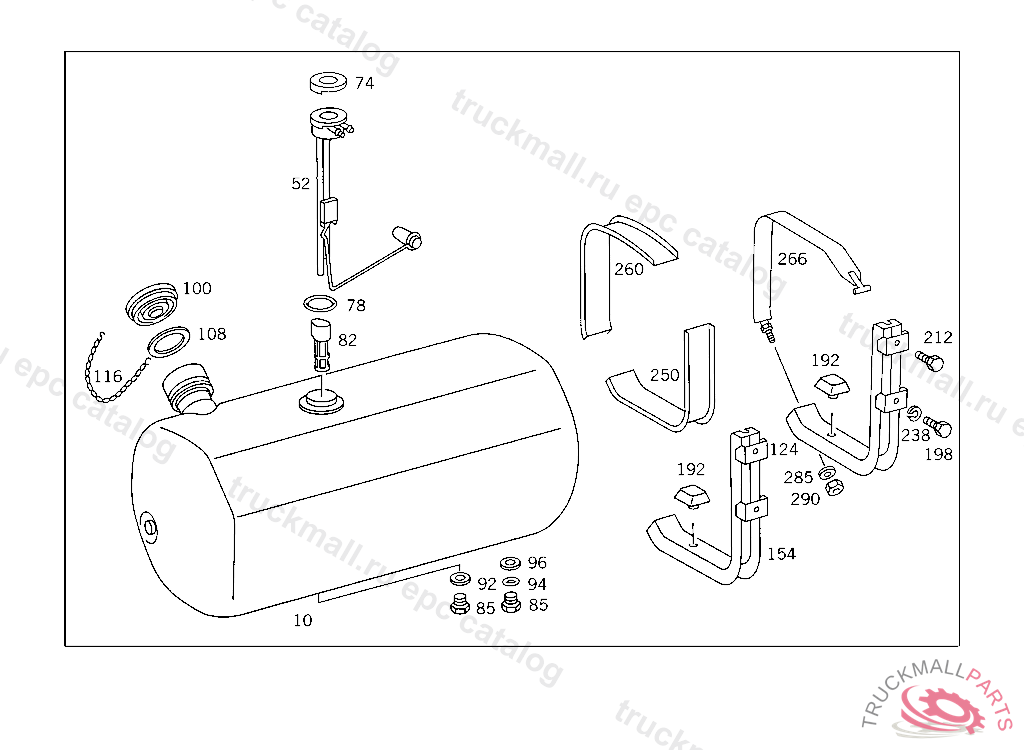

10
FUEL TANK125 L,K 169123
10
FUEL TANK ,K 169123, Replaced By: A6704700101
10
FUEL TANK , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. K 169122, Replaced By: A6524700101, +001A0005409917, +001A0115426017
52
SENDER UNIT ,4 312465
52
SENDER UNIT , Replaced By: A0085427717
78
SEAL RING FUEL GAUGE SENDER UNIT TO FUEL TANK
82
FUEL STRAINER FUEL TANK,K 169122
85
SCREW PLUG FUEL TANK
92
SEAL RING AT TANK
94
SEAL RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
96
THRUST RING FROM 3/2-WAY VALVE TO QUICK BREATHER VALVE,5 431227
100
FILLER CAP
100
FILLER CAP , Replaced By: A0004700305
100
FILLER CAP , Replaced By: A0004700305
100
FILLER CAP , Replaced By: A0004700305
100
FILLER CAP , Replaced By: A0004717930
108
SEAL RING
116
CHAIN FILLER CAP
124
SUPPORT FUEL TANK,5 048155
154
SUPPORT FUEL TANK,FRONT AND REAR,5 761839
154
SUPPORT FUEL TANK
192
STOP
198
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
198
SCREW , Replaced By: N308676014020
212
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
238
LOCK WASHER BRACKET TO SIDE MEMBER,5 703114
250
PAD FUEL TANK TO SUPPORT, ORDER BY THE METER
266
STRAP FUEL TANK,5 048155
285
WASHER
290
NUT SUPPORT TO SIDE MEMBER
290
NUT STRAP TO SUPPORT,5 149419
999
FUEL TANK
999
STRAP ,5 0621535 149419, Replaced By: A6174700240, +001N000934012022
999
SUPPORT FUEL TANK TO SUPPORT
999
CLAMP LINE MOUNTING
