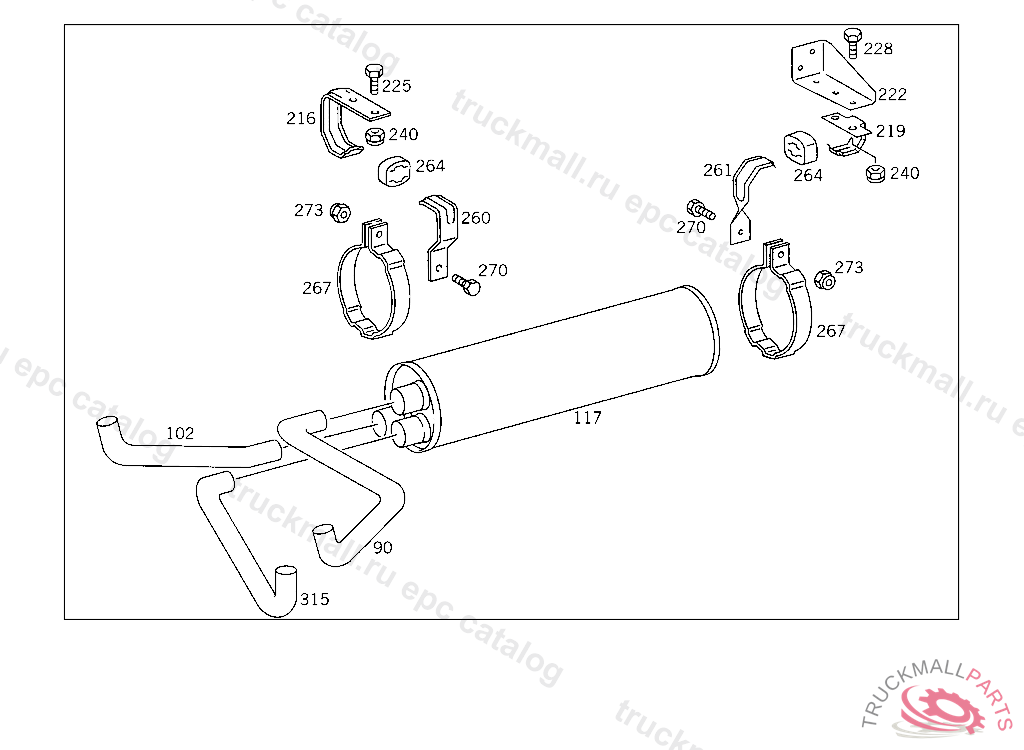

Поз.
Артикул
Описание
90
EXHAUST PIPE FRONT,REAR LEFT PART
102
EXHAUST PIPE FRONT,REAR RIGHT PART
102
EXHAUST PIPE FRONT RIGHT
117
EXHAUST MUFFLER
216
SUPPORT FRONT EXHAUST MUFFLER
216
SUPPORT FRONT EXHAUST MUFFLER
219
SUPPORT TAIL PIPE
219
SUPPORT REAR EXHAUST MUFFLER
219
SUPPORT REAR EXHAUST MUFFLER
222
SUPPORT EXHAUST MUFFLER SUSPENSION
225
SCREW CONSOLE TO SIDE MEMBER
228
SCREW BRACKET TO SIDE MEMBER
228
SCREW SUPPORT TO CROSS MEMBER M 10X28
228
SCREW BRACKET TO CROSS CONNECTION STRUT
228
SCREW , Replaced By: N304017008034
228
SUPPORT REAR EXHAUST MUFFLER
228
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
228
SCREW , Replaced By: N304017008027
228
SCREW SUPPORT TO CROSS MEMBER M 10X28
228
SCREW BRACKET TO SIDE MEMBER
228
SCREW , Replaced By: N304017010002
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
NUT STRAP TO BRACKET
240
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
240
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
240
NUT , Replaced By: N913004008001
240
NUT STRAP TO BRACKET
240
NUT STRAP TO BRACKET
240
NUT , Replaced By: N910113010000
240
NUT SUPPORT TO SIDE MEMBER
260
BRACKET EXHAUST MUFFLER TO SUPPORT,FRONT
261
BRACKET EXHAUST MUFFLER,REAR
261
BRACKET REAR EXHAUST MUFFLER TO SUPPORT
261
BRACKET REAR EXHAUST MUFFLER TO SUPPORT
261
BRACKET EXHAUST MUFFLER,REAR
264
DAMPING PAD PARTICLE FILTER
264
DAMPING PAD PARTICLE FILTER
267
CLAMP EXHAUST MUFFLER TO SUPPORT
267
CLAMP EXHAUST MUFFLER TO SUPPORT
267
CLAMP , Replaced By: A6174910540
270
SCREW BRACKET TO SIDE MEMBER
270
SCREW , Replaced By: N304017010002
273
NUT STRAP TO BRACKET
273
NUT , Replaced By: N910113010000
315
CONNECTOR BOTTOM CENTRAL
999
BRACKET RUBBER BUFFER,5 129244
999
BRACKET EXHAUST PIPE, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET , Replaced By: A3834927941
999
CLAMP LINE MOUNTING
