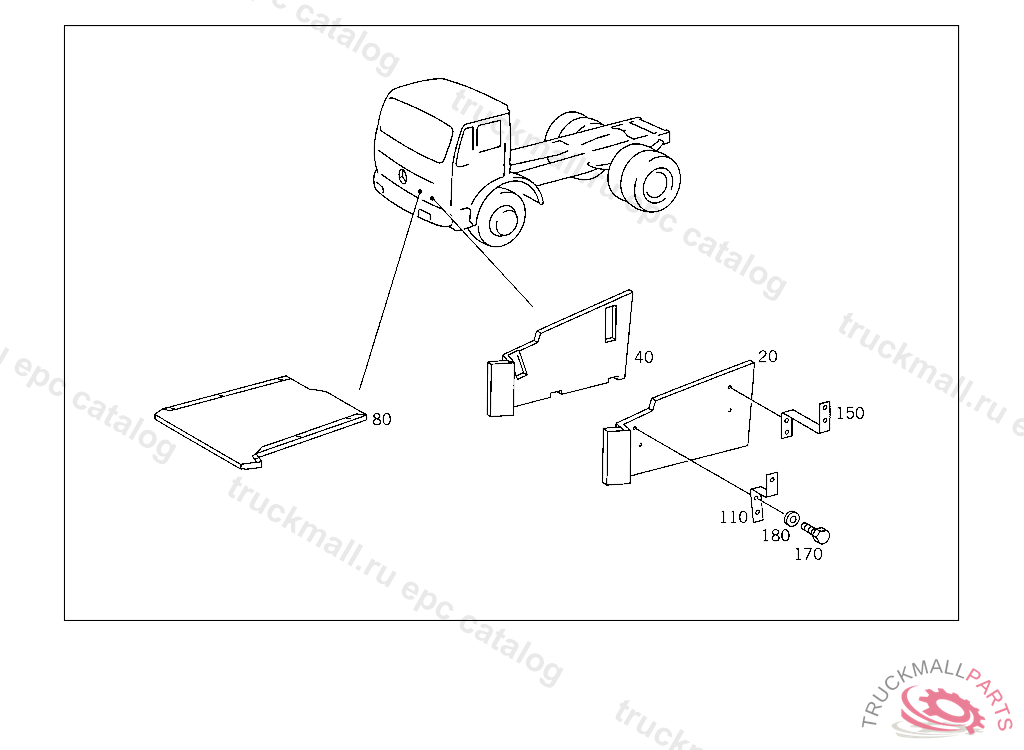

Поз.
Артикул
Описание
20
COVERING LEFT
20
COVERING LEFT, TO BE ADAPTED DURING ASSEMBLY
40
SEALING PLATE
40
SEALING PLATE
80
COVERING BOTTOM
110
BRACKET LEFT FRONT
150
BRACKET REAR LEFT
170
SCREW PIPE CLAMP
170
SCREW , Replaced By: N304017008021
180
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
180
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
180
SCREW , Replaced By: N308676012026
180
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X40
180
WASHER EXHAUST MUFFLER TO STRAP
180
WASHER , Replaced By: N000125008443
999
LOCKING PIN
999
LOCK PROTECTIVE PLATE TO BRACKET
999
BRACKET LEFT FRONT, NOT USED
999
SEALING PLATE , Replaced By: A6175241897
999
NUT END PIECE TO EXHAUST PIPE
